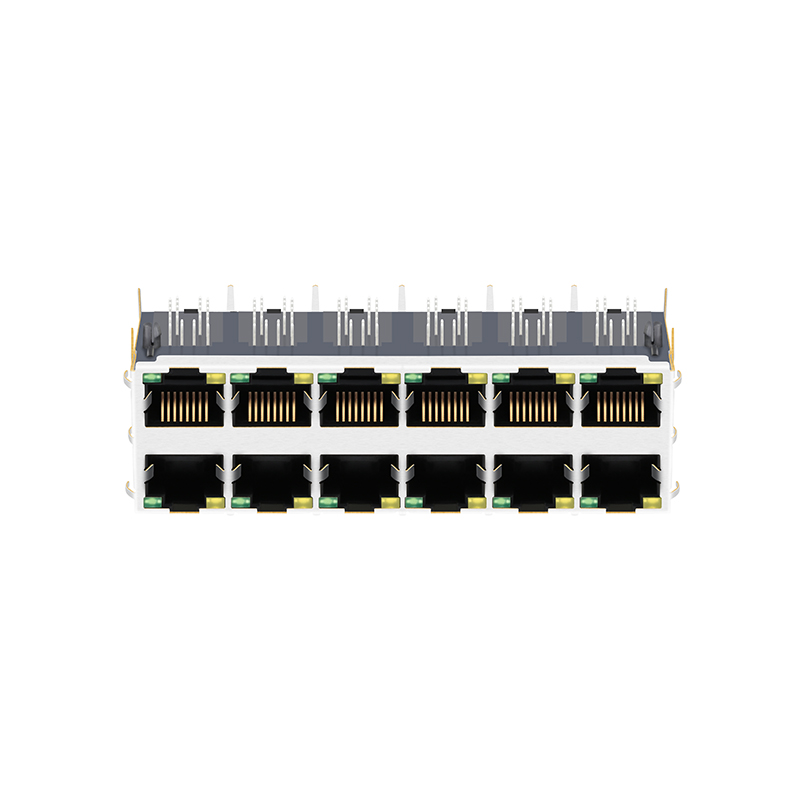

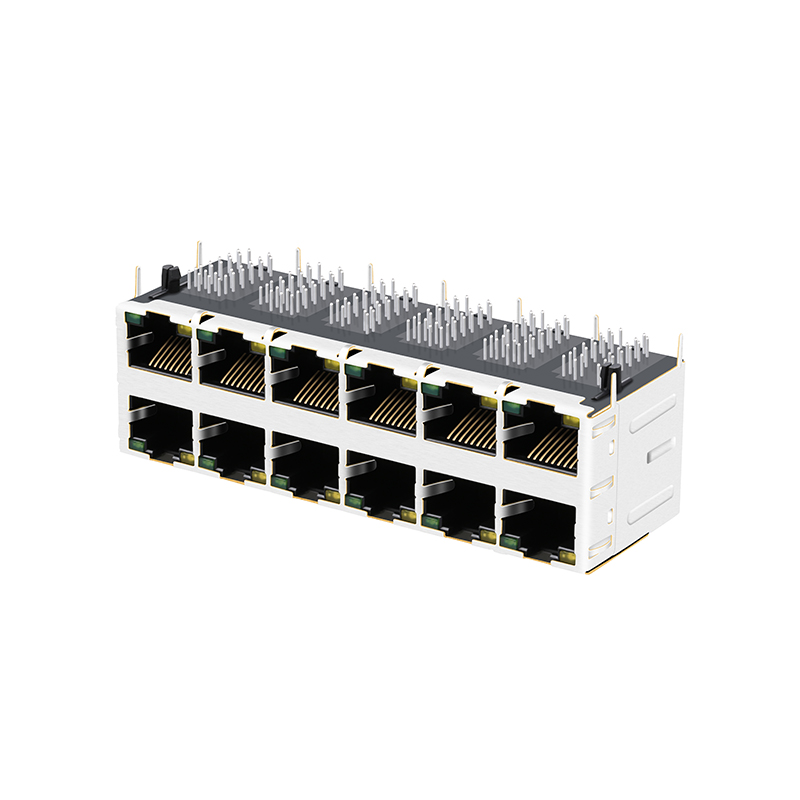

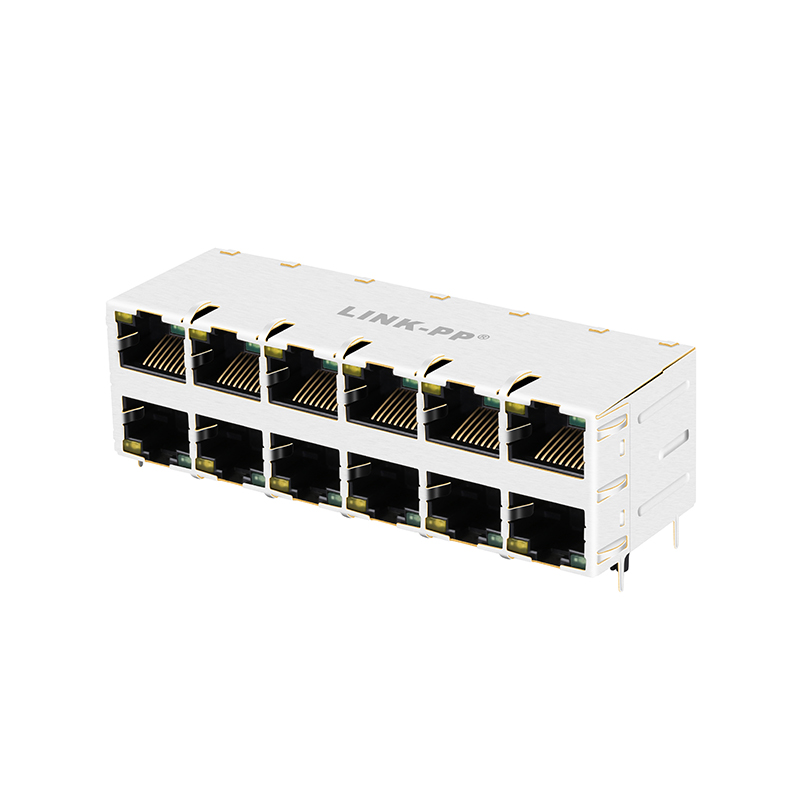

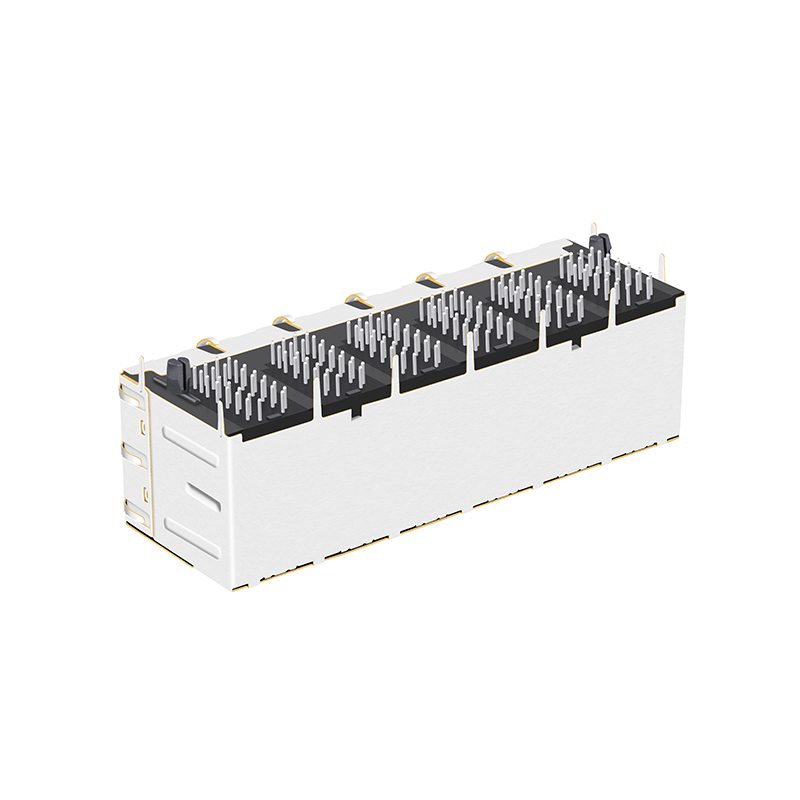

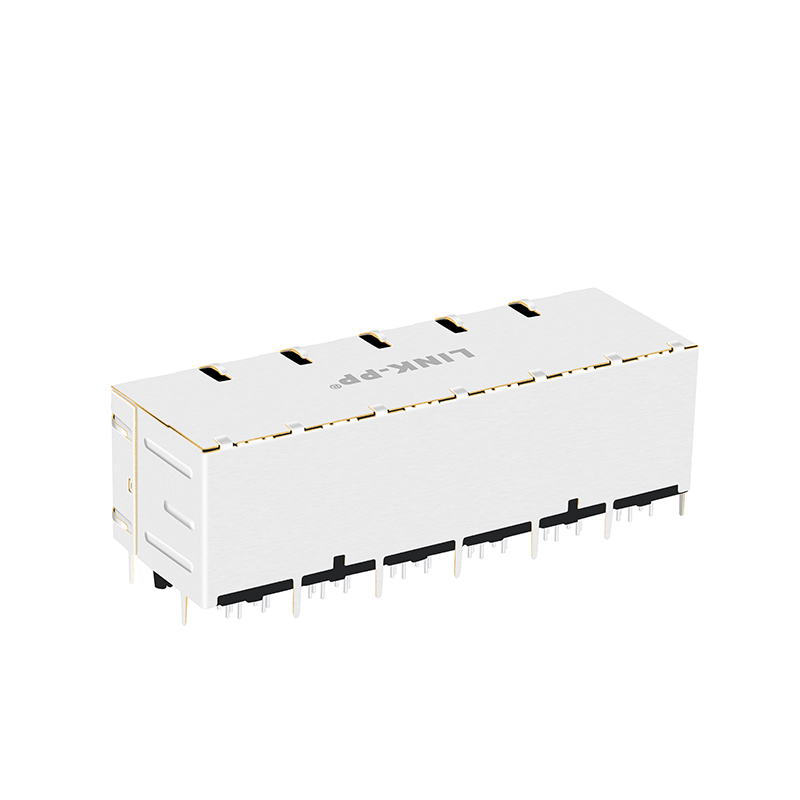

10/100/1000 Base-T RJ45 Stacked Jack 2x6 port RJ45 Jack RJGE-12M6170DJP
| Part Number |
RJGE-12M6170DJP |
| Application-LAN |
ETHERNET(NON POE) |
| AutomDX |
YES |
| Bst Circuit |
YES |
| Configuration RX |
T,C |
| Configuration TX |
T,C |
| Contact Mating Area Plating |
GOLD 6u"/15u"/30u" |
| Cores Per Port |
4 |
| Diodes |
NO DIODES |
| LED Option |
WITH/WITHOUT LEDS |
| Latch |
UP/DOWN |
| Number of Ports |
2X6 |
| PCB |
FR4 |
| PCB Mount Angle |
SIDE ENTRY |
| PCB Retaining Post |
T POST |
| Pin Type |
THT SOLDER |
| RoHS Compliant |
YES-RoHS-5 WITH LEAD IN SOLDER EXEMPTION |
| Search |
YES |
| Shield EMI Tabs |
WITH OR WITHOUT |
| Speed |
10/100/1000/10G BASE-T |
| Temperature |
0 TO 70°C/-40 TO 85°C |
| Turns Ratio RX |
1CT:1 |
| Turns Ratio TX |
1CT:1 |
Why Choose Us
World’s Leader Supplier Of Integrated RJ45 Connector And Discrete Magnetic Transformers
- ISO 9001:2008
- UL Certification
- Reach Certification
- RoHS Compliance
- Active Environmental Policy
- Manufactured Under Strict Controls.
- 100% Tested (Not Just Batch Tested)
- Quality Guarantee: 6 Years
- Successful Customer: Samsung, Cisco, Siemens, and Intel...
- More Competitive Price Than Major Competitors
- Delivery Time: 2-3 Weeks After Orders
- Free Samples Are Available
- Provide New Design For Customer Requirements
- Highly Discounted Shipping Costs by Leading Logistics Carriers
- The Corporate Goal Is To Achieve The Highest Level Of Customer Satisfaction
- Continuous Improvements In Quality, Delivery And Service
- Committed To And Expects Quality Performance From Every Employee
- The Company Standard Is Defect-Free Products And Services
• Preferred Supplier Of Samsung, Cisco, Siemens, and Intel...
• Featured on BeagleBone Board
Frequently Asked Questions (FAQ)
What is the application range of the RJGE-12M6170DJP stacked jack?
This connector is designed for standard high-speed Ethernet (Non-PoE) applications, offering structured 2x6 port layouts for dense PCB designs.
What speeds does this RJ45 connector support?
It supports high-speed data rates including 10 Base-T, 100 Base-T, 1000 Base-T, and up to 10G Base-T network protocols.
Are there LED options available for this model?
Yes, this model can be customized with or without integrated LEDs based on your project requirement.
What temperature range can this stacked jack withstand?
It operates effectively under standard temperature conditions ranging from 0 to 70°C, and industrial options ranging from -40 to 85°C.
Is the RJGE-12M6170DJP compliant with international standards?
Yes, the connector is RoHS compliant (with lead in solder exemption) and complies with REACH regulations.
Can I get samples of this RJ45 connector for evaluation?
Yes, free samples are available to meet customer requirements and evaluate compatibility during development cycles.
