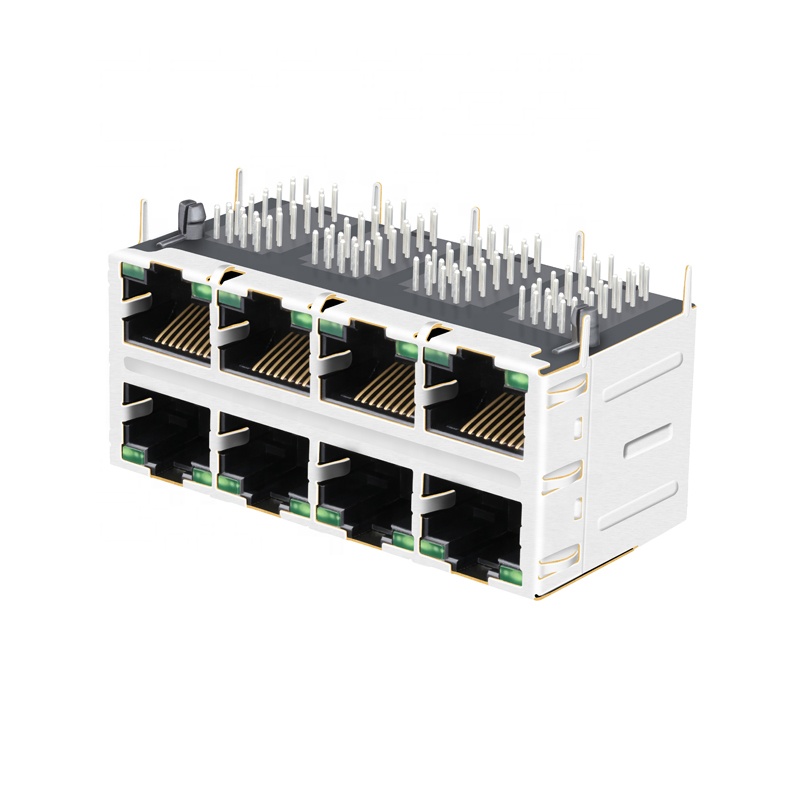

| Item | RJ45 Female Connector |
| Part Number | LPJG47039AWNL |
| Part Status | Active |
| Connector Type | Jack |
| Number of Positions/Contacts | 8p8c (RJ45, Ethernet) |
| Application-Lan | Ethernet(PoE+) |
| Number of Ports | 2x4 Port |
| Speed | 2.5G Base-T |
| Latch | Both |
| Cores per Port | 10 |
| Orientation | 90° Angle (Right) |
| PCB Mount Angle | SIDE ENTRY |
| Shield EMI Tabs | With |
| LED Option | Green/Yellow |
| PCB | FR4 |
| PCB Retaining Post | T POST |
| Temperature | 0°C TO 70°C |
| Bst Circuit | Yes |
| AutomDX | YES |
| Contact Mating Area Plating | GOLD 6u"/15u"/30u" |

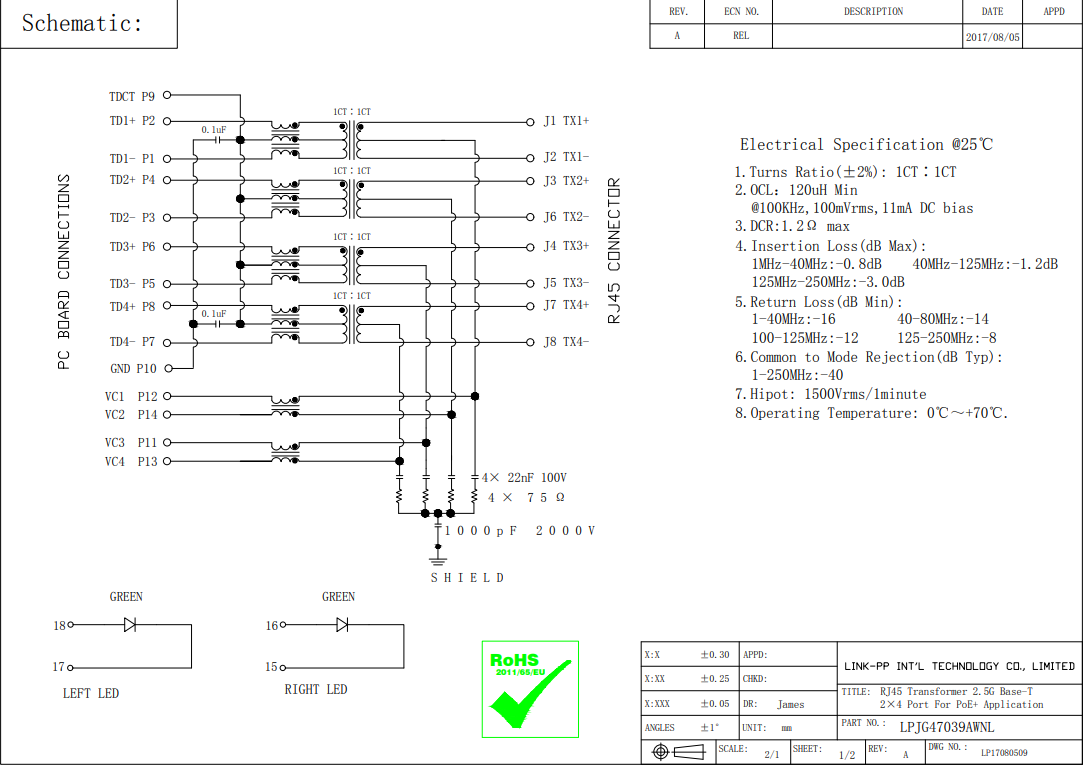

| Turns Ratio RX/TX | 1CT:1CT |
| Configuration RX/TX | T,C |
We are a specialized manufacturer of magnetic telecom and networking components, certified by ISO9001:2000, ROHS, REACH, CE and UL. We own advanced manufacturing facilities and test equipment imported from abroad. Established in 1997, we currently have around 2,000 staff members. With an abundant monthly production capacity of 3,000K, we are able to deliver goods within a short time. Moreover, we provide professional, complete solutions for magnetic components alongside strong technical support.
Main Products:
Our products are widely used in networking and communication equipment such as HUB, PC card, Switch, Router, PC Mainboard, SDH, PDH, IP Phone, and xDSL modem. We have exported our products to more than 30 countries and regions globally. Our customers span most of the countries in the world, including Germany, France, the UK, the USA, Singapore, Korea, Canada, and Japan.
Main Customers: ZNE, JABIL, FOXCONN, H3C, FLEXTRONICS, IBM, TEXAS INSTRUMENTS TELECOMMUNICATION TECHNOLOGIES LLC.
Our engineering staff is dedicated to identifying, developing and manufacturing the optimal solution tailored to our customers' unique requirements. We trust that our strength in the field and our commitment to high standards will make us your long-term partner.
We are a specialized manufacturer of magnetic telecom and networking components, such as RJ45 connectors, LAN transformers, RJ11 connectors, and SFP modules.
Yes, we can offer you free samples to test quality, but the shipping fee needs to be paid by the customer.
Items in stock are ready to ship, while mass production orders generally take 15 to 30 days.
We provide a one-year guarantee period along with 24-hour online technical support.
Yes, please send an inquiry to us so we can proceed with a detailed discussion regarding your custom requirements.
We have over 19 years of professional production experience and have been a trusted partner to global technology industry leaders for many years.
