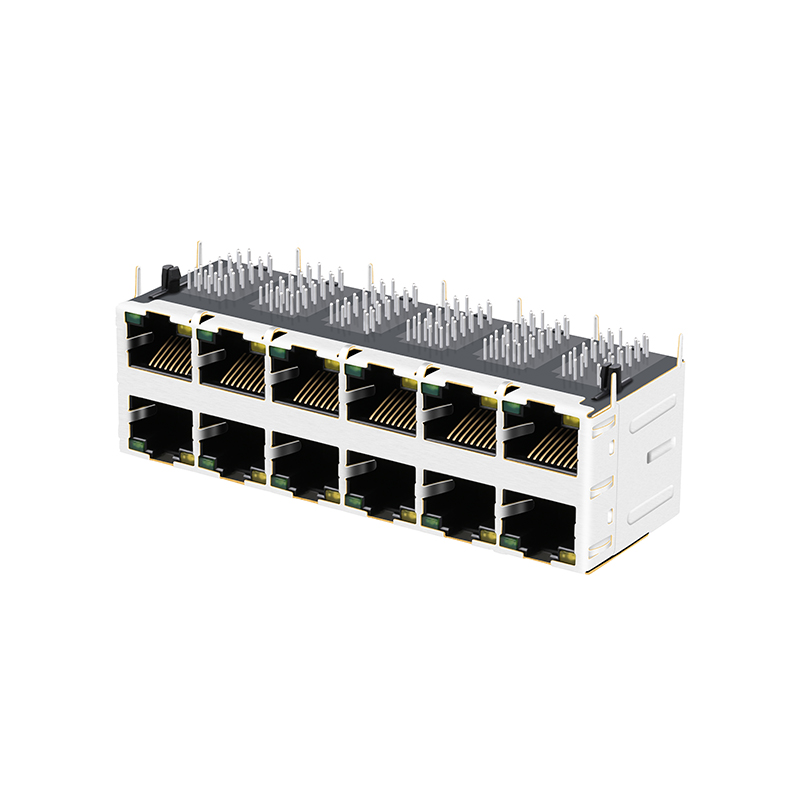

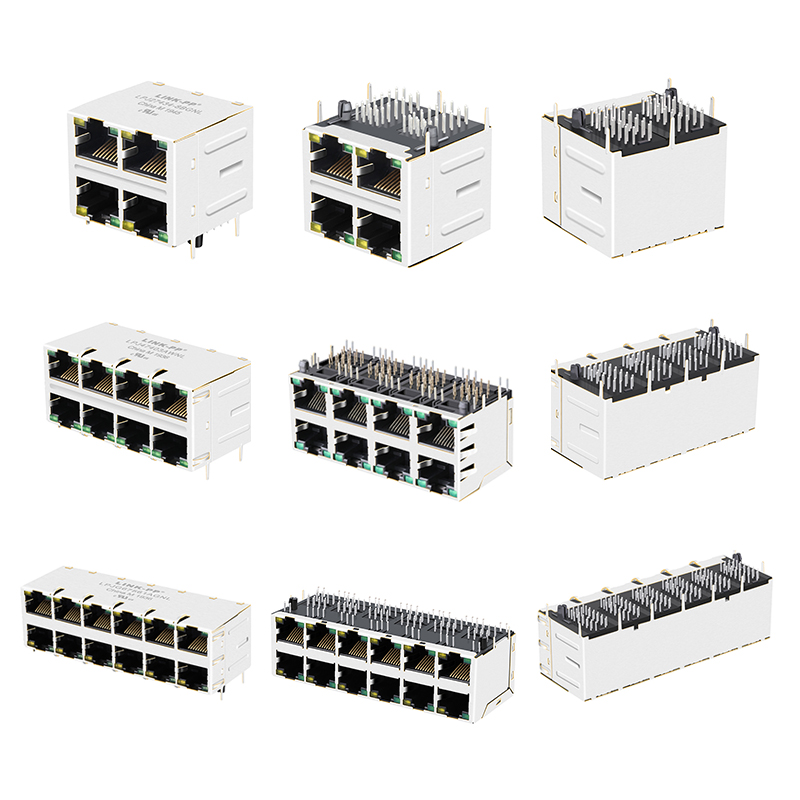

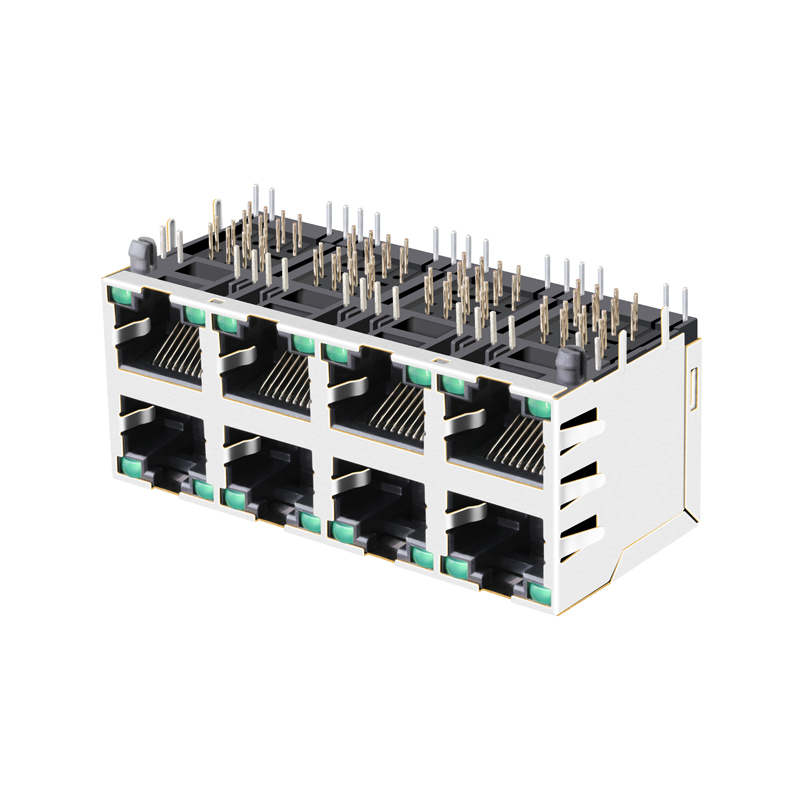

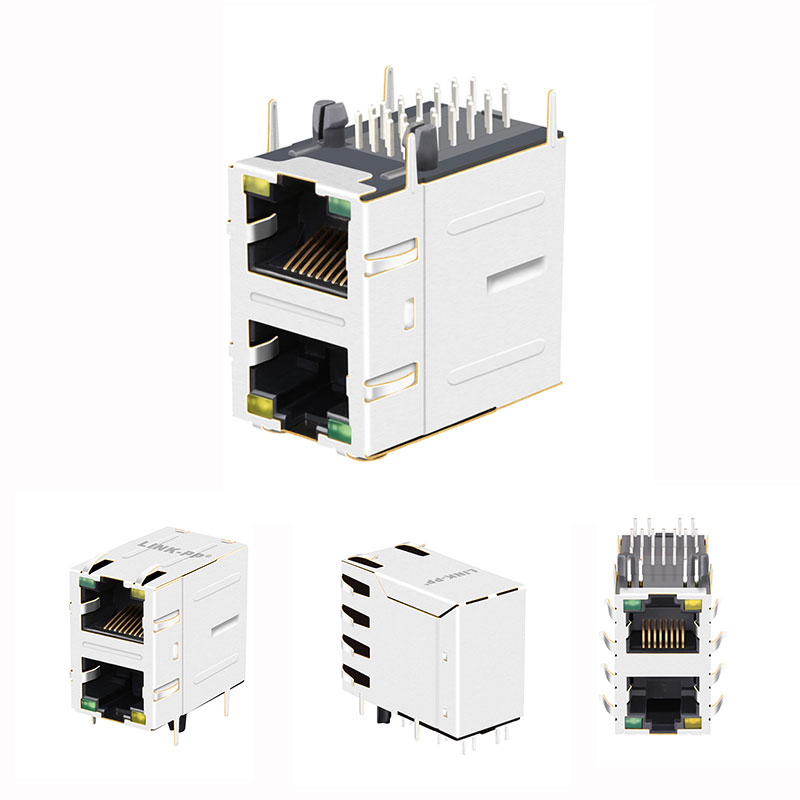

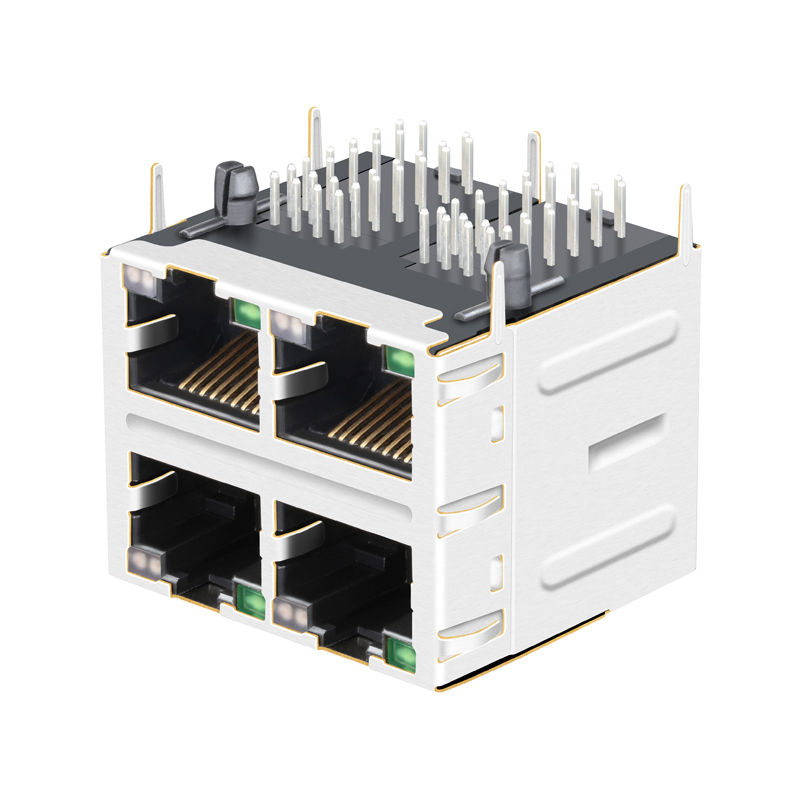

Product Description

Product Description
Characteristics
RJ45 Connector: Built with an integrated transformer and common mode choke.
Power over Ethernet: Supports PoE up to 50 Watt with transmission speeds reaching up to 10 Gbit/s.
Versatile Options: Available in SMT, THT, and THT configurations with integrated USB.
Standards Compliance: Fully compliant with IEEE 802.3u, IEEE 802.3ab, IEEE 802.3af, IEEE 802.3at, and the upcoming IEEE 802.3bt standards.
HPLE Technology: Enhanced Common Mode Rejection achieved through additional NiZn cores.

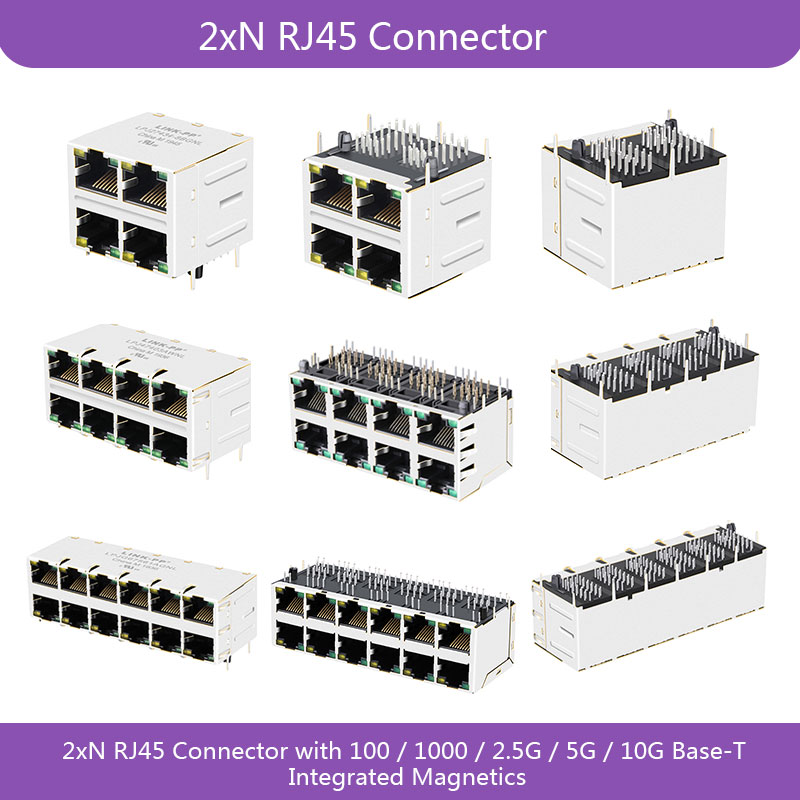

Characteristics Diagram
Specification
Item Value
Model Number RJ45 Filtered Connectors
Part Status Active
Connector Type RJ45
Applications-Lan Ethernet (PoE / Non-PoE)
Speed 10/100/1000/2.5G/5G/10G Base-T, AutoMDIX
Mounting Type Through Hole
Orientation 90° Angle (Right)
Termination Solder
Contact Finish Thickness 6.00µin (0.152µm)
LED Color Yellow/Green, Green/Yellow, Green&Yellow/Green&Yellow
Number of Cores per Jack 4/6/8/12
Shielding Shielded, Emi Finger
Number of Ports 2x1 2x2 2x4 2x6 2x8 Port
Features Board Guide
Tab Direction Down/Up
Contact Finish Gold
Configuration RX/TX T, C
Turns Ratio RX/TX 1CT:1CT
Operating Temperature 0°C ~ 70°C / -40°C ~ +85°C
Packing & Delivery
Package Style
Tray
Carton Size
32 * 30 * 31 cm
Gross Weight
8.5 kg / carton
Quantity
1200 pcs / carton
Standard Pack Qty (SPQ)
50 pcs
Net Weight
0.007 kg / pcs
Packaging Box Details
Company Profile
Factory Facility View 1 Factory Facility View 2 Factory Facility View 3 Production Line View 1 Production Line View 2 Testing Equipment
Product Compliance Badges
FAQ
❓ What products and options are available in this lineup?
We offer RJ45 Magnetic connectors, LAN transformers, RJ11 connectors, standard RJ45 connectors, and SFP modules. These are available in SMT, THT, and THT with USB styles.
❓ How is product quality guaranteed?
Product quality is ensured through a strict workflow consisting of a pre-production sample evaluation before initiating mass production, followed by a thorough final inspection before shipment.
❓ Which industry standards are these connectors compliant with?
Our products are fully compliant with IEEE 802.3u, IEEE 802.3ab, IEEE 802.3af, IEEE 802.3at, and the upcoming IEEE 802.3bt standards. Additionally, manufacturing conforms to ISO9001:2008, UL, REACH, and CE guidelines.
❓ What are the accepted payment methods and currencies?
We accept payments in USD, EUR, JPY, CAD, AUD, HKD, GBP, CNY, and CHF. Payment formats include T/T, L/C, D/P, D/A, MoneyGram, Credit Cards, PayPal, Western Union, Cash, and Escrow.
❓ What delivery options and terms are supported?
Supported delivery terms include FOB, CFR, CIF, EXW, FAS, CIP, FCA, CPT, DEQ, DDP, DDU, Express Delivery, DAF, and DES.
❓ How are the products packaged?
The items are packaged in trays with a standard packaging quantity (SPQ) of 50pcs. They are shipped in cartons sized 32*30*31cm, with a total capacity of 1200pcs per carton and a gross weight of 8.5kg.
