Product Description

2x1 Port Shielded RJ45 Modular Jack

Shielded RJ45 Modular Jack Banner

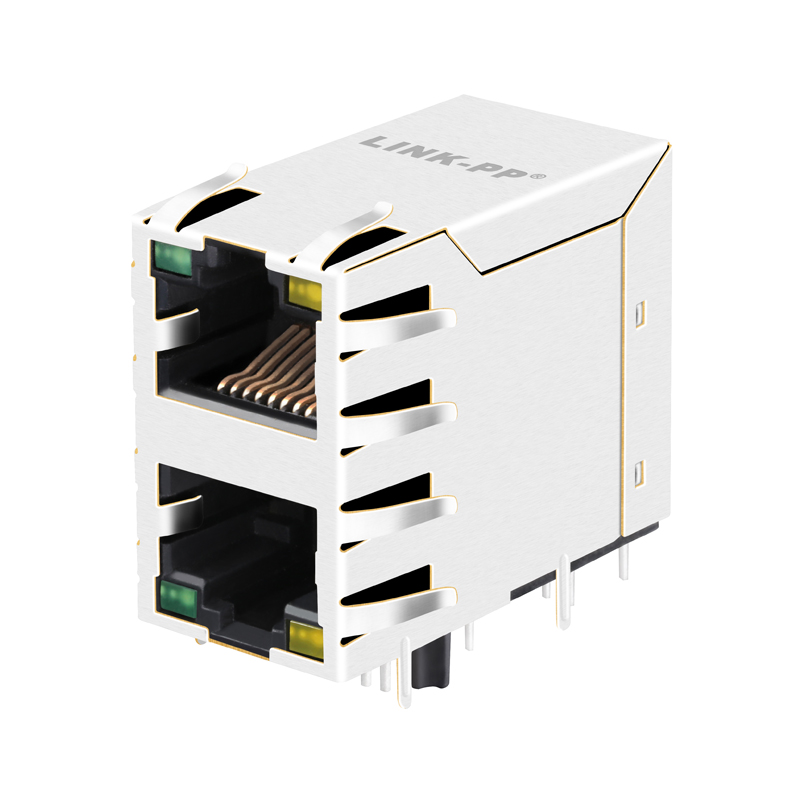

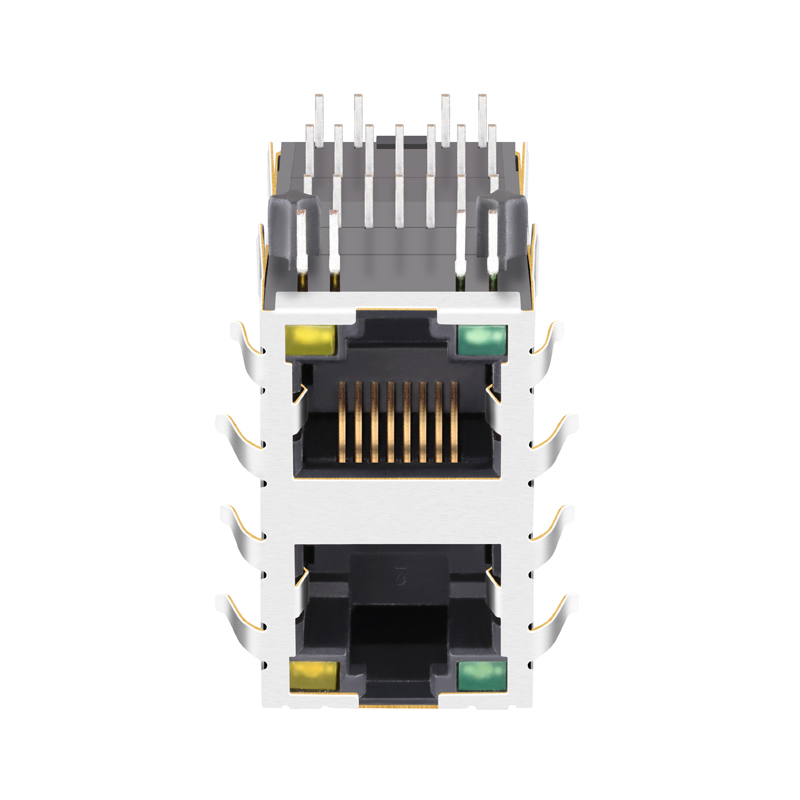

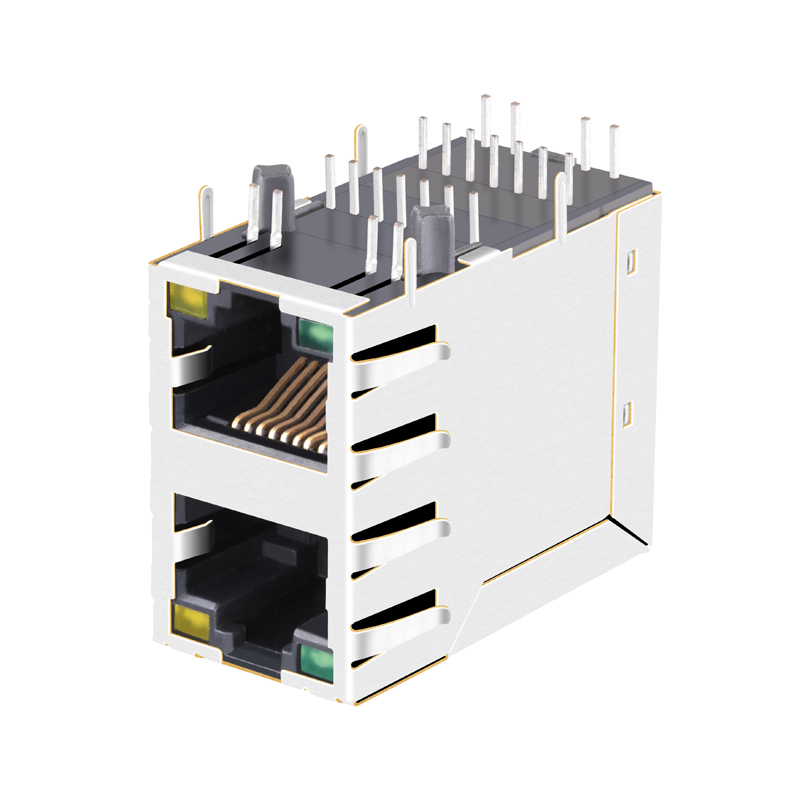

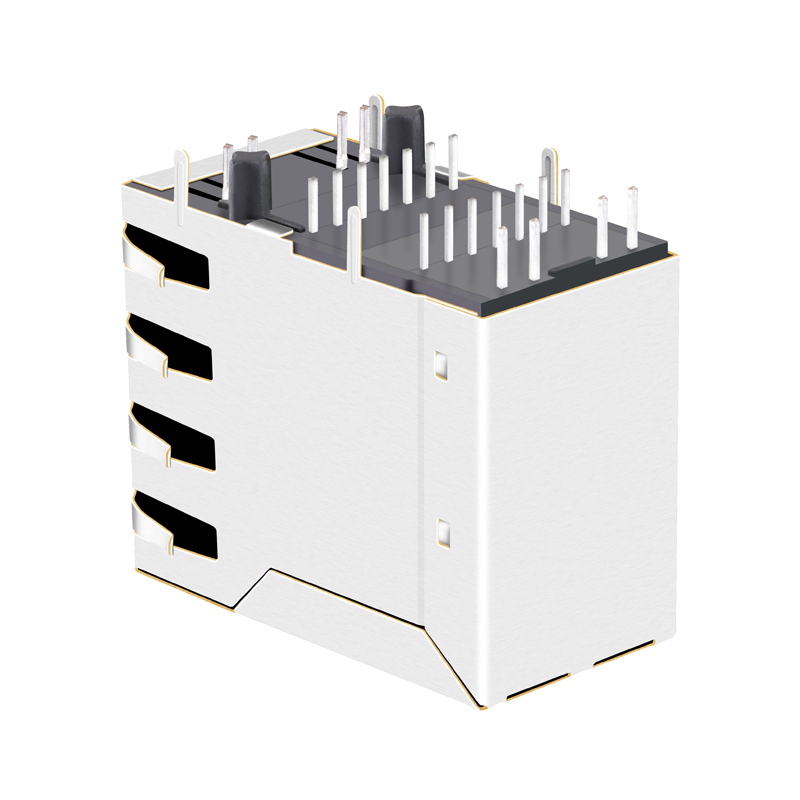

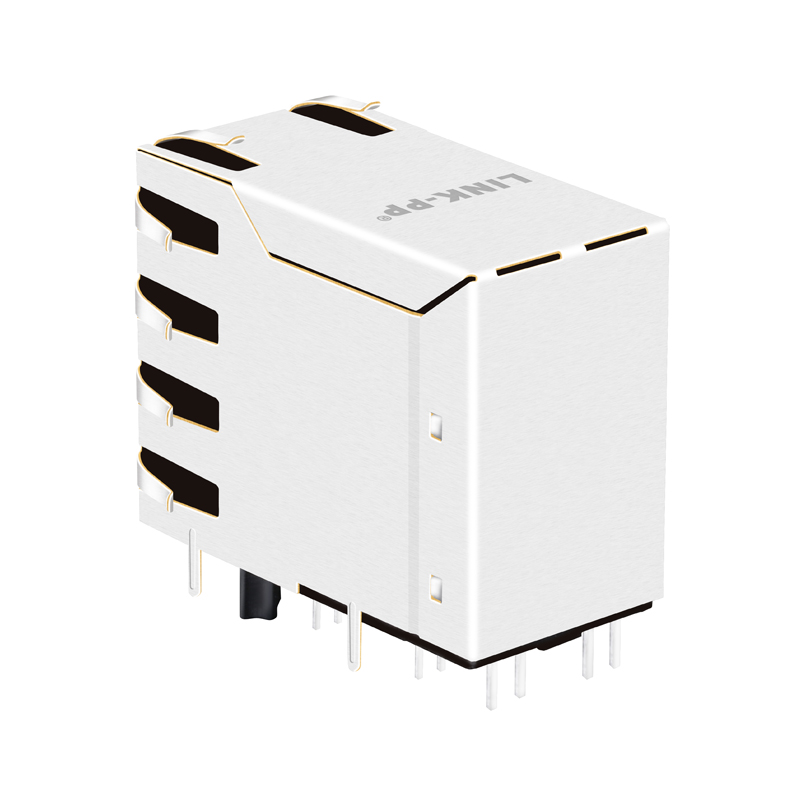

2x1 Port Shielded RJ45 Modular Jack Product

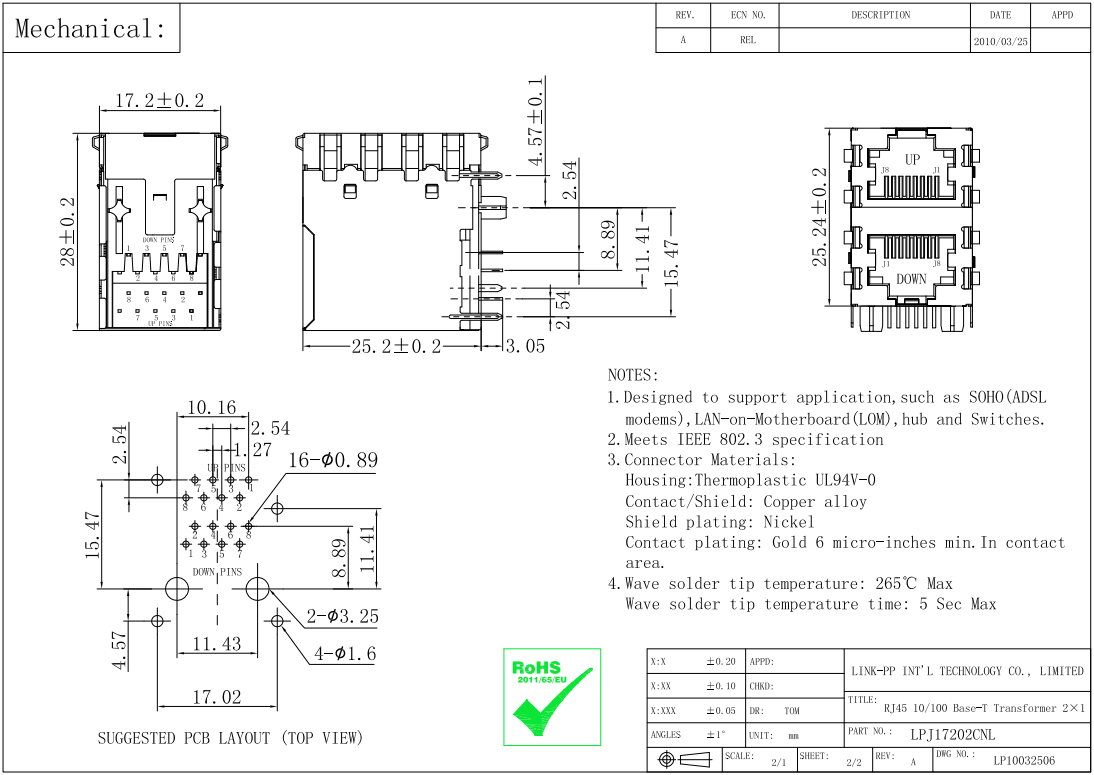

2x1 Port Shielded RJ45 Dimensions
Shielded RJ45 Specifications Divider
2x1 Port RJ45 Connector 10/100 Base-t Integrated Magnetics, Without LED, Tab Down/Up, RoHS
Part Number LPJ17202CNL
Reference Part Number MIC24A10-0101W-LF3 / 7499051002
Application-Lan ETHERNET(NoN PoE)
AutomDX YES
Bst Circuit YES
Configuration RX T,C
Configuration TX T,C
Contact Mating Area Plating GOLD 6u"/15u"/30u"
Cores per Port NO
Diodes NO DIODES
LED Option Without
Latch TAB DOWN / Up
Number of Ports 1X1
PCB FR4
PCB Mount Angle SIDE ENTRY
PCB Retaining Post T POST
Pin Type THT SOLDER
RoHS Compliant YES-RoHS-5 WITH LEAD IN SOLDER EXEMPTION
Search YES
Shield EMI Tabs With
Speed 10/100 Base-T
Temperature -40 TO 85℃
Turns Ratio RX 1CT:1CT
Turns Ratio TX 1CT:1CT

Why Choose Us

Leading Provider Of Integrated RJ45 Connectors And Discrete Magnetic Transformers

Professional Certification
  • ISO 9001:2008
  • UL Certification
  • Reach Certification
  • RoHS Compliance
  • Active Environmental Policy
100% Quality Guarantee
  • Manufactured Under Strict Quality Controls
  • 100% Tested (Not Just Batch Tested)
  • Quality Guarantee: 6 Years
Competitive Pricing & Service
  • Highly Competitive Pricing in the Market
  • Delivery Time: 2-3 Weeks After Orders
  • Free Samples Are Available
  • Provide Custom Design for Unique Requirements
  • Up to 90% Off Shipping Costs via Global Carriers
Corporate Quality Policy
  • Achieve Maximum Customer Satisfaction Through Continuous Service & Quality Improvement
  • Committed To and Expects Quality Performance From Every Employee
  • The Company Standard Is Defect-Free Products And Services
RJ45 Diagram A
RJ45 Diagram B
RJ45 Detailed Specifications Sheet
RJ45 Compliance Certificate
Shielded RJ45 Application Divider
RJ45 Board Mounting View A
RJ45 Board Mounting View B

2x1 Port Shielded RJ45 Modular Jack

Frequently Asked Questions
What transmission speed does this 2x1 Port RJ45 Modular Jack support?
This connector supports 10/100 Base-T network speeds, making it ideal for standard Fast Ethernet applications.
What is the operating temperature range for this RJ45 connector?
It is designed to operate reliably in harsh conditions within a temperature range of -40°C to 85°C.
Does this connector model include integrated LEDs?
No, this specific version of the modular jack is configured without LEDs.
Is the modular jack shielded and compliant with environmental standards?
Yes, it is designed with a shielded body including EMI tabs, and it is fully RoHS compliant (RoHS-5 with lead in solder exemption).
What PCB mounting options are available for this connector?
It features a side-entry PCB mounting angle and uses Through-Hole Technology (THT) solder pin types for secure mechanical installation.
