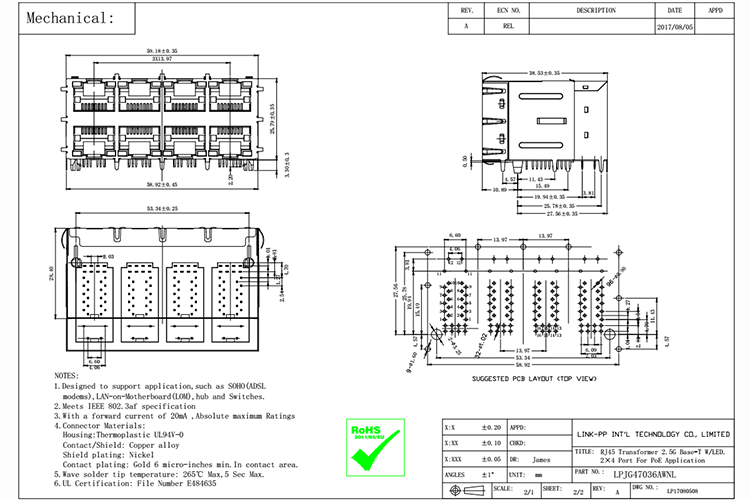

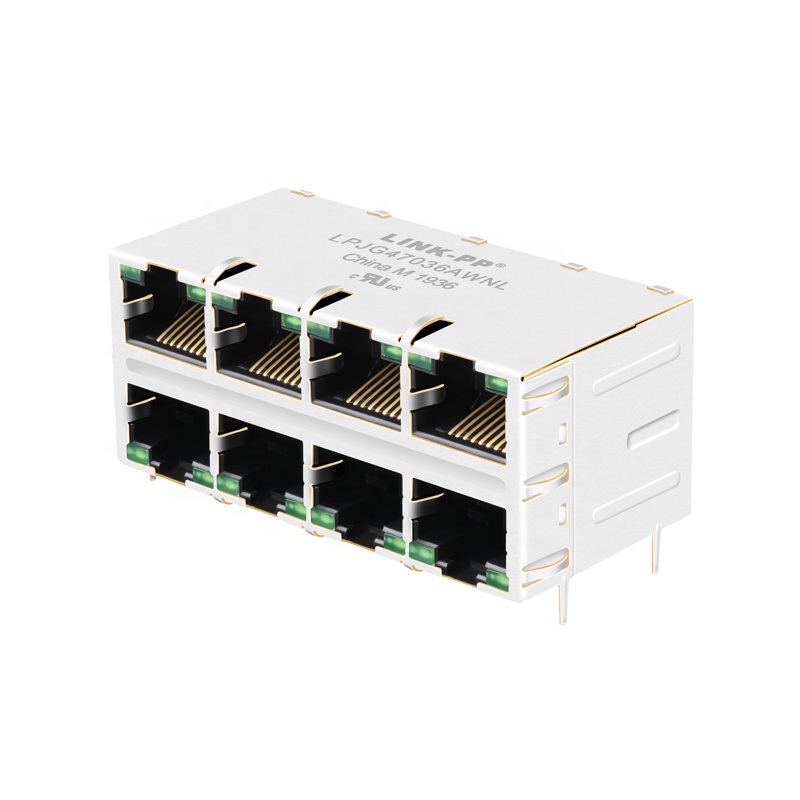

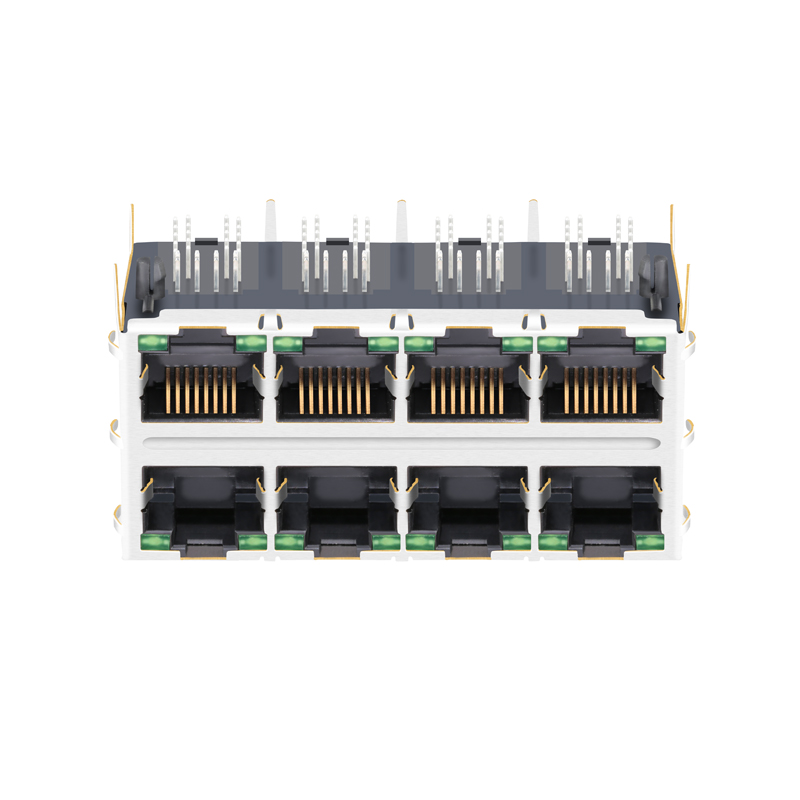

2x4 Port For PoE Cat5e 2.5G Jack RJ45 Female Connector
| Part Number |
LPJG47036AWNL |
| Application-LAN |
ETHERNET(POE) |
| AutomDX |
YES |
| Bst Circuit |
YES |
| Configuration RX |
T,C |
| Configuration TX |
T,C |
| Contact Mating Area Plating |
GOLD 6u"/15u"/30u"/50u" |
| Cores Per Port |
8 |
| Diodes |
NO DIODES |
| LED Option |
GREEN/GREEN |
| Latch |
UP/DOWN |
| Number of Ports |
2X4 |
| PCB |
FR4 |
| PCB Mount Angle |
SIDE ENTRY |
| PCB Retaining Post |
T POST |
| Pin Type |
THT SOLDER |
| RoHS Compliant |
YES-RoHS-5 WITH LEAD IN SOLDER EXEMPTION |
| Search |
YES |
| Shield EMI Tabs |
WITH |
| Shielding |
Shielded |
| Speed |
2.5G BASE-T |
| Temperature |
-20~+70℃ |
| Turns Ratio RX |
1CT:1 |
| Turns Ratio TX |
1CT:1 |
■
Preferred Supplier Of TI Samsung Cisco Siemens ...
■
Welcome To Visit The TI Website://www.ti.com/tool/beaglebk#0
Why Choose Us
World’s Leader Supplier Of Integrated RJ45 Connector And Discrete Magnetic Transformers
Professional Certification
✔ISO 9001:2008
✔UL Certification
✔Reach Certification
✔RoHS Compliance
✔Active Environmental Policy
100% Guarantee Quality
✔Manufactured Under Strict Controls.
✔100% Tested (Not Just Batch Tested)
✔OEM Partner For Leading Brands For 9 Years
✔Successful Customer: Texas Instruments Samsung Cisco Siemens And Intel…
✔Preferred Supplier Of TI (Texas Instruments)
✔Quality Guarantee: 6 Years
Competitive Price And Service
✔More Competitive Price Than Pulse Tyco Halo Wurth And Amphenol
✔Delivery Time: 2-3 Weeks After Orders
✔Free Samples Are Available
✔Provide New Design For Customer Requirements
✔90% Off Shipping Cost By DHL UPS FEDEX Or TNT
Frequently Asked Questions
What is the application and speed rating for this RJ45 connector?
This connector is specifically designed for PoE (Power over Ethernet) LAN applications and supports high-speed data transmission rates up to 2.5G BASE-T.
What certifications does this RJ45 connector comply with?
The product complies with multiple international standards, including ISO 9001:2008, UL certification, REACH compliance, and RoHS standards.
What are the environmental and operating temperature specifications?
This connector has an operating temperature range of -20°C to +70°C, ensuring reliable performance in various environmental conditions.
Can I get samples before placing a bulk order?
Yes, free samples are available to verify product quality and compatibility with your designs.
What is the standard delivery timeframe for orders?
The standard delivery time is 2 to 3 weeks after your order confirmation. We also offer highly discounted shipping options through DHL, UPS, FEDEX, or TNT.
Is this RJ45 connector fully tested?
Absolutely. We offer a 100% quality guarantee with comprehensive testing (not just batch testing) under strict controls, supported by a 6-year quality guarantee.
