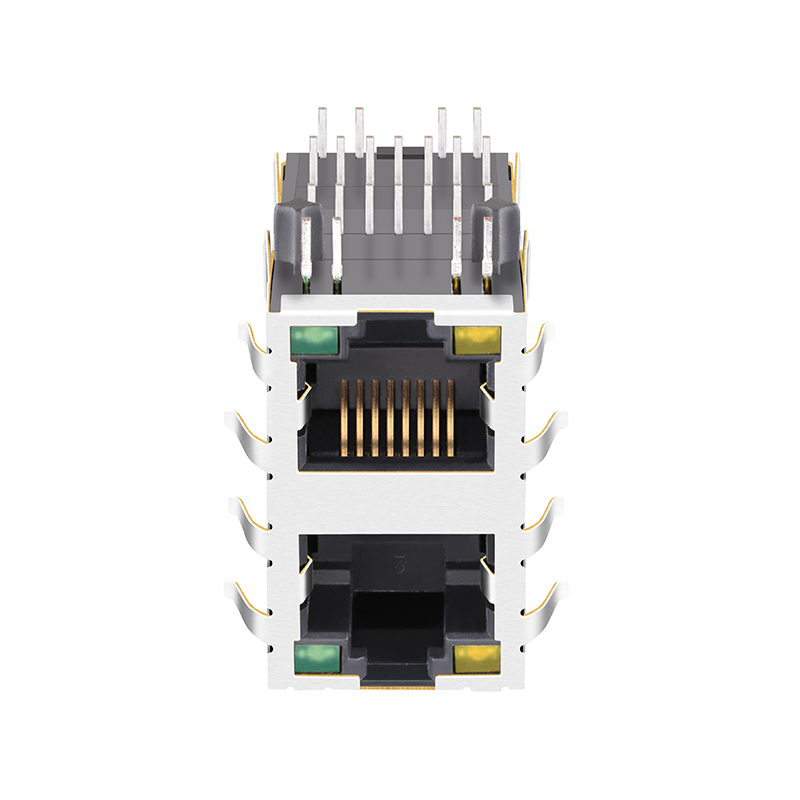

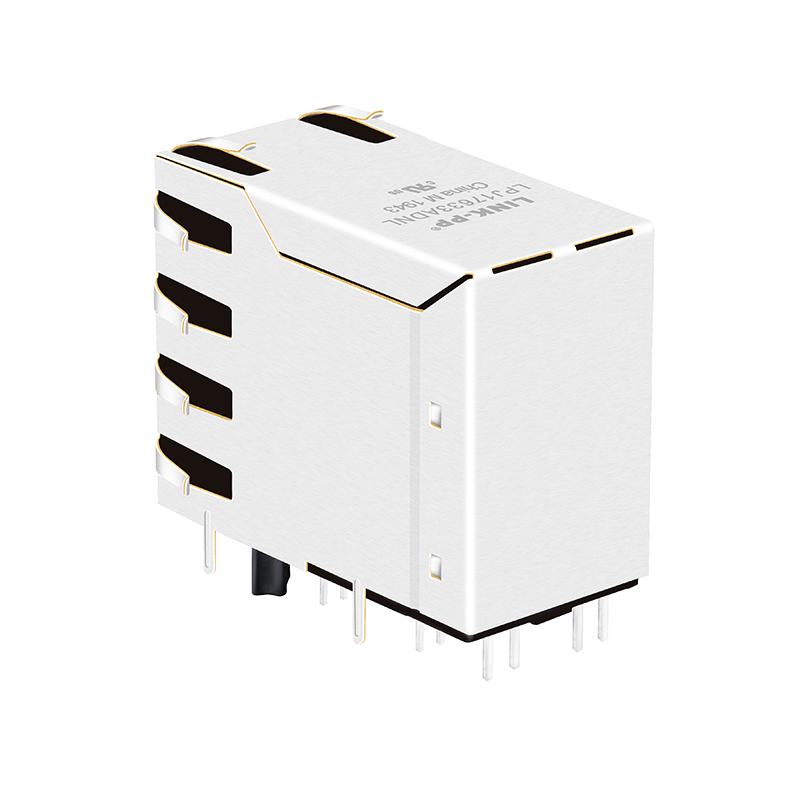

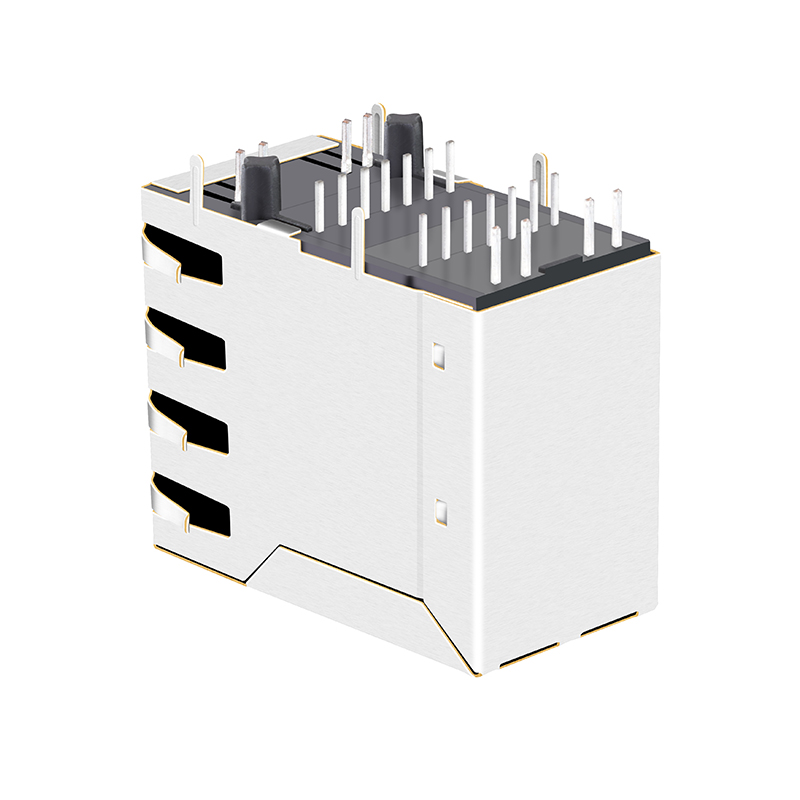

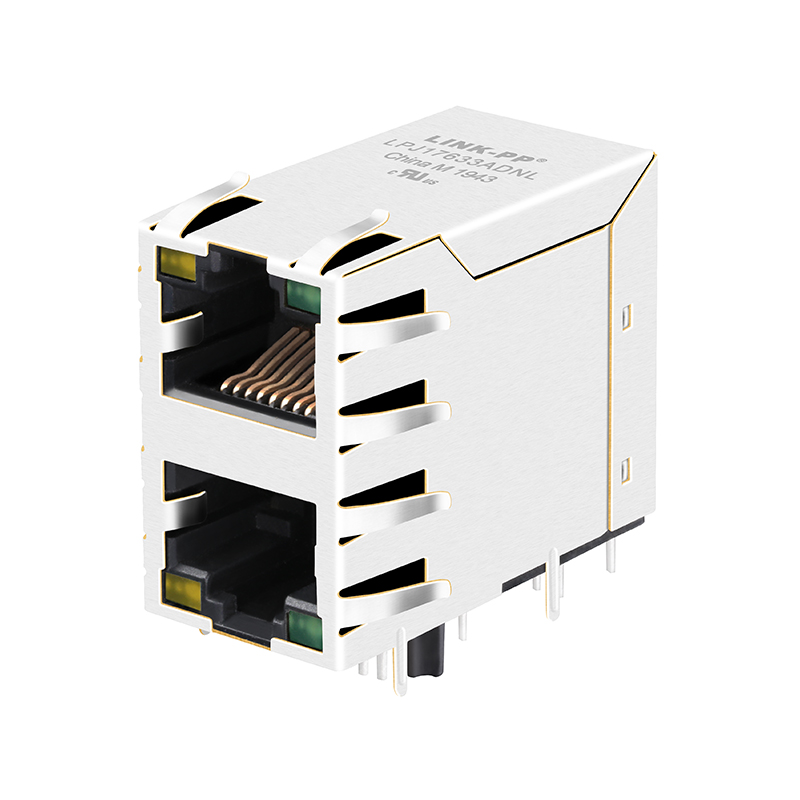

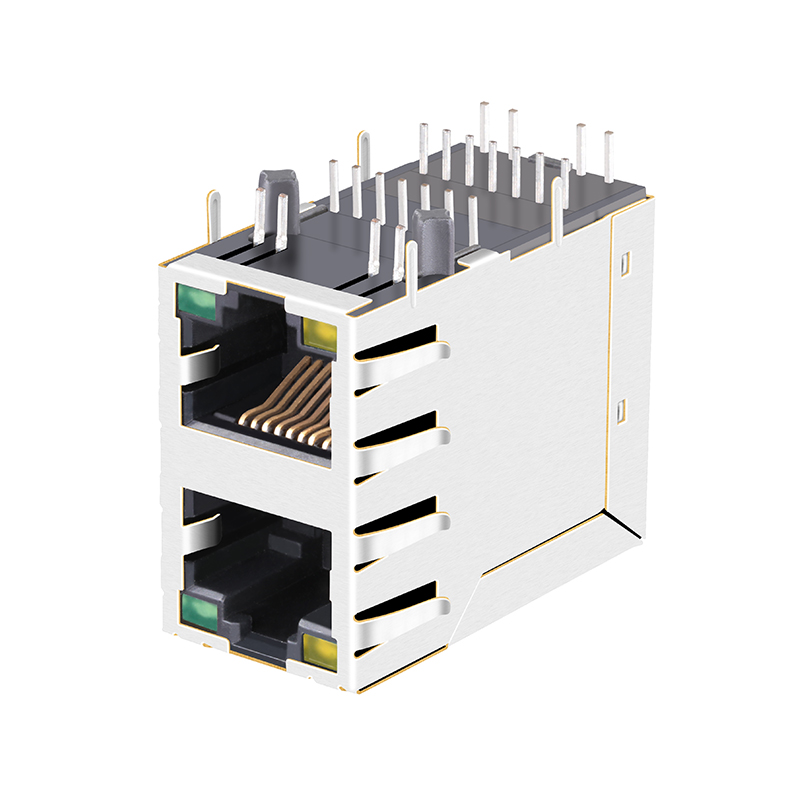

0845-2D1T-H5 0845-2D1T-S4 RM3-ZZ-0020 10/100 Base-T 2 Port 8P8C RJ45 Modular Jack

Send Inquiry

Product Description

Part Number	0845-2D1T-H5 / 0845-2D1T-S4 / RM3-ZZ-0020
Application-LAN	ETHERNET(NON PoE)
AutomDX	YES
Bst Circuit	YES
Configuration RX	T,C
Configuration TX	T,C
Contact Mating Area Plating	GOLD 6u"/15u"/30u"
Cores Per Port	4
Diodes	NO DIODES
LED Option	Yellow/Green LEDS
Latch	UP/Down
Number of Ports	2x1 Port
PCB	FR4
PCB Mount Angle	SIDE ENTRY
PCB Retaining Post	T POST
Pin Type	THT SOLDER
RoHS Compliant	YES-RoHS-5 WITH LEAD IN SOLDER EXEMPTION
Search	YES
Shield EMI Tabs	With
Speed	10/100 Base-T Magnetics
Temperature	-40 TO 85°C / 0 TO 70°C
Turns Ratio RX	1CT:1
Turns Ratio TX	1CT:1

Why Choose Us

Supplier Of Integrated RJ45 Connector And Discrete Magnetic Transformers

The Corporate Goal Is To Achieve The Highest Level Of Customer Satisfaction Through Continuous Improvements In Quality, Delivery And Service
Committed To And Expects Quality Performance From Every Employee
The Company Standard Is Defect-Free Products And Services

Preferred Supplier Of TI Samsung Cisco Siemens …
You Will Look At Our Logo On BeagleBone Board

Frequently Asked Questions

What are the main part numbers corresponding to this RJ45 Modular Jack?

The matching part numbers for this modular jack are 0845-2D1T-H5, 0845-2D1T-S4, and RM3-ZZ-0020.

What is the application and speed capabilities of this connector?

It is designed for Non-PoE Ethernet applications and supports 10/100 Base-T network speeds.

Does this RJ45 connector support AutoMDIX functionality?

Yes, this modular jack features built-in AutoMDIX and BST circuit support.

What is the operating temperature range?

The connector is designed to function properly in temperatures ranging from -40°C to 85°C or 0°C to 70°C.

What certification standards does this product meet?

This product is compliant with ISO 9001:2008, UL Certification, Reach Certification, and RoHS compliance specifications.

What plating specifications are available for the contact mating area?

The contact mating area features professional-grade gold plating available in thickness options of 6u", 15u", and 30u".
