OptiLinker OptiLinker

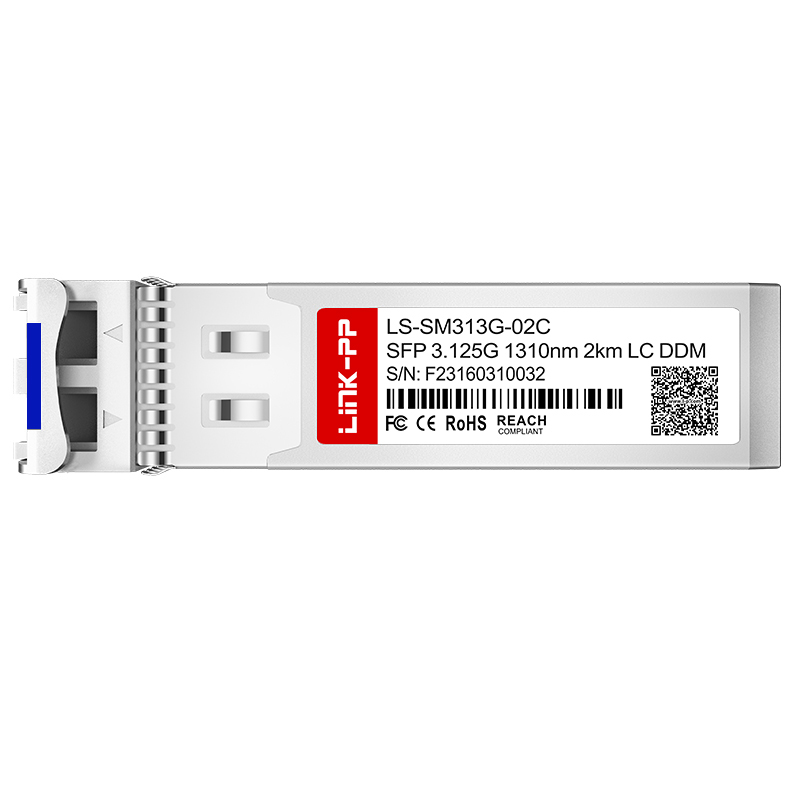

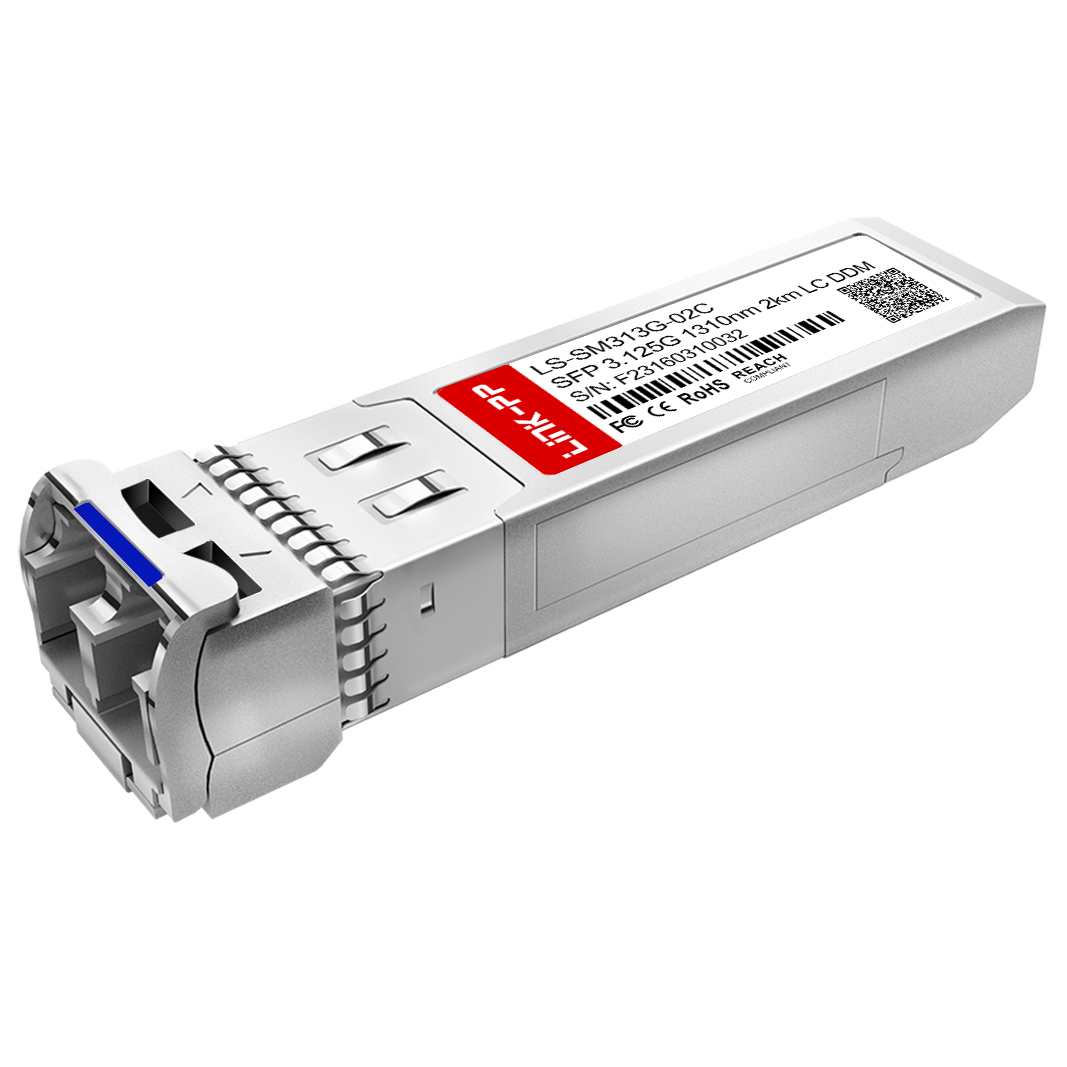

Single Mode 3G SFP 1310nm 2km SMF Duplex LC Optical Transceiver Module

Product Description

Single Mode 3G SFP 1310nm 2km SMF Duplex LC Optical Transceiver Module
Part No. LS-SM313G-02C
Form Factor SFP
Max Data Rate 3.125Gbps
Wavelength 1310nm
Max Cable Distance 2km
Connector Duplex LC
Media SMF
Transmitter Type FP
Receiver Type PIN
TX Power -8 ~ 0dBm
Receiver Sensitivity < -18dBm
Receiver Overload -1dBm
EMC (Electro Magnetic Compatibility) Supported
DDM/DOM Supported
Protocols MSA Compliant
Temperature Range 0 to 70°C / -40 to 85°C
Warranty 5 Years
Sample Available
View Our Solutions
We draw on over 10 years of experience in chips and modules to integrate fast speeds, small size, power savings, and high performance in every module. A full series of optical modules is provided for fixed access, wireless access, carrier Ethernet, wavelength division multiplexing (WDM), and data communication networks.
Optical Transceiver Solutions
Support Full Range Of 2.5G SFP
Part Number Data Rate Wavelength Distance Media DDM
LS-MM852G-S3C 2.5Gbps 850nm 300m Multi-mode Yes
LS-MM852G-S5C 2.5Gbps 850nm 550m Multi-mode Yes
LS-SM312G-02C 2.5Gbps 1310nm 2km Single Mode Yes
LS-SM312G-10C 2.5Gbps 1310nm 10km Single Mode Yes
LS-SM312G-15C 2.5Gbps 1310nm 15km Single Mode Yes
LS-SM312G-20C 2.5Gbps 1310nm 20km Single Mode Yes
LS-SM552G-20C 2.5Gbps 1550nm 20km Single Mode Yes
LS-SM312G-40C 2.5Gbps 1310nm 40km Single Mode Yes
LS-SM552G-40C 2.5Gbps 1550nm 40km Single Mode Yes
LS-SM552G-80C 2.5Gbps 1550nm 80km Single Mode Yes
Optical Transceiver Interface Transceiver Product Range
Applications & Networks
Optical Transport Networks
Optical Transport Networks
End-to-end DWDM systems are supported with a comprehensive suite of optical devices - from active modules to optical passive components, including optical amplifiers (EDFA & RFA), Mux & Demux, OPM, ROADM, MCS, OLP, and OTDR solutions.
Cloud and Enterprise
Cloud and Enterprise
To meet the rising demands of massive data transmission within enterprise data centers, a specialized range of high-speed optical modules has been engineered, with transmission speeds ranging from 10G to 800G, delivering reliable optical interconnection networks.
Wireless Networks
Wireless
High reliability and performance systems are enabled by utilizing industry-standard chip architectures and efficient semiconductor designs. The infrastructure supports Dark Fiber, WDM, Radio over Fiber, High Speed, Mid-haul, and Back-haul links tailored for global 4G/5G configurations.
FTTx Broadband access
FTTx
Total FTTx optical fiber access solutions are designed for communication networks, encompassing all-optical structures as well as hybrid optical-copper access architectures.
Subsystems Operations
Subsystems
To guarantee structural continuity across complex lines, complete O&M infrastructure packages are available, seamlessly integrating Optical Line Protection (OLP) configurations with Optical Line Monitoring (OLM) systems.
Related Products SFP Cage
SFP Cage Accessories
Why Choose Us
Professional Production Line
Quality Testing Standards
Advanced Equipment
Packaging and Quality Control
Production Support
Frequently Asked Questions
Are you a manufacturer or a trading company?
We are a specialized manufacturer of magnetic telecom and networking components, including RJ45 connectors, LAN transformers, RJ11 connectors, and optical SFP modules.
Can I get a sample before mass production?
Yes, we can offer you free samples to test and verify the quality, but shipping and freight costs must be covered by the customer.
What is your standard delivery time?
Products that are currently in stock are ready to ship immediately, while custom orders or mass production runs typically take between 15 and 30 days.
What after-sales service and support do you offer?
We provide a comprehensive warranty period on all hardware components along with access to technical assistance online to resolve any configuration queries.
Can you accept OEM/ODM orders?
Yes, we support both OEM and ODM custom manufacturing. Please send your specifications and design inquiries to our support team for a detailed review.
What is your main production advantage?
We hold extensive production experience, featuring state-of-the-art testing equipment and manufacturing techniques to deliver high-quality, MSA-compliant networking components.
