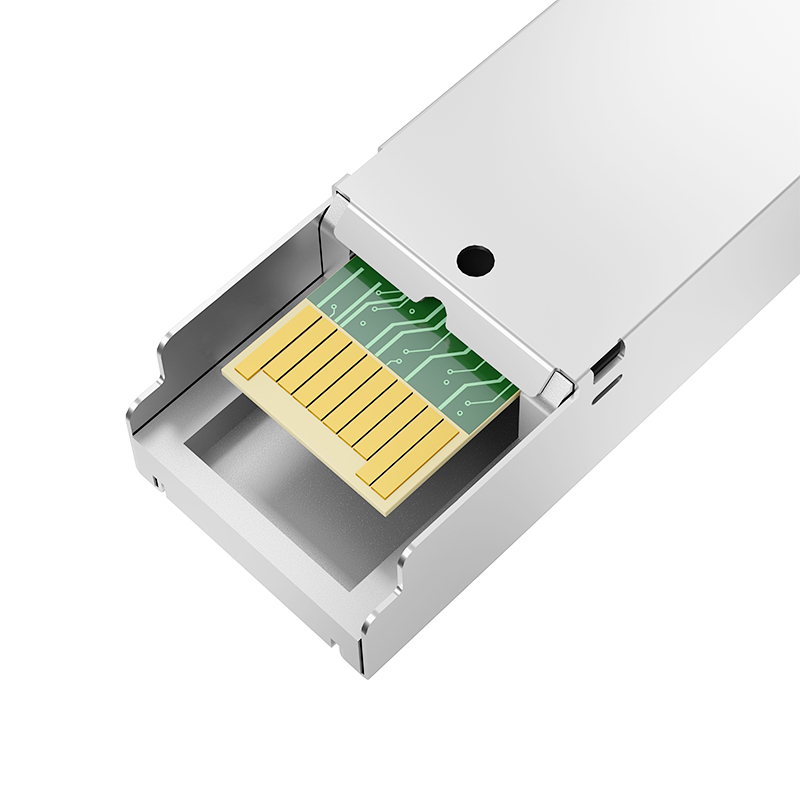

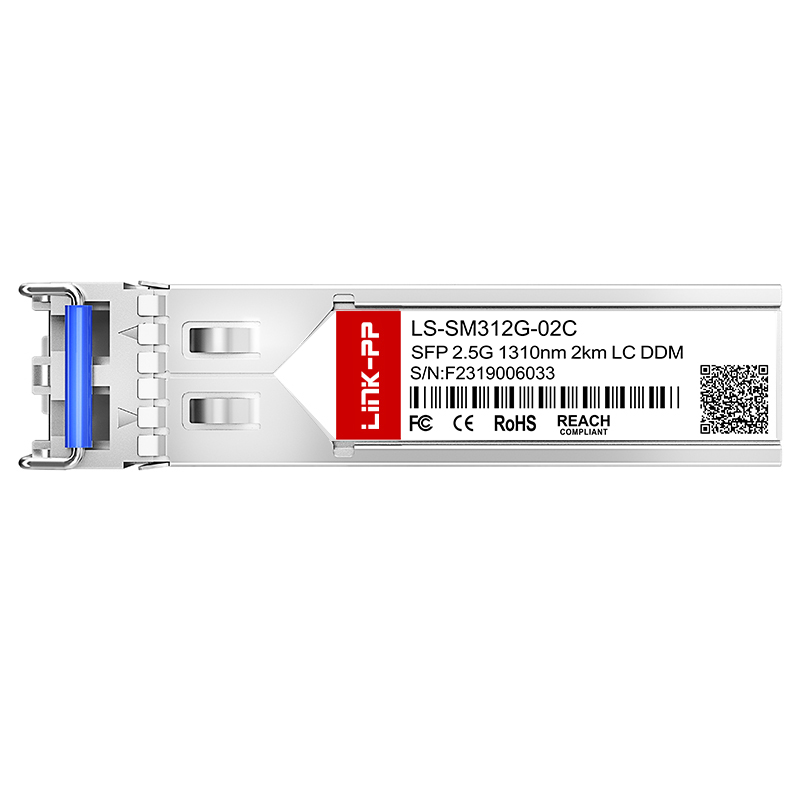

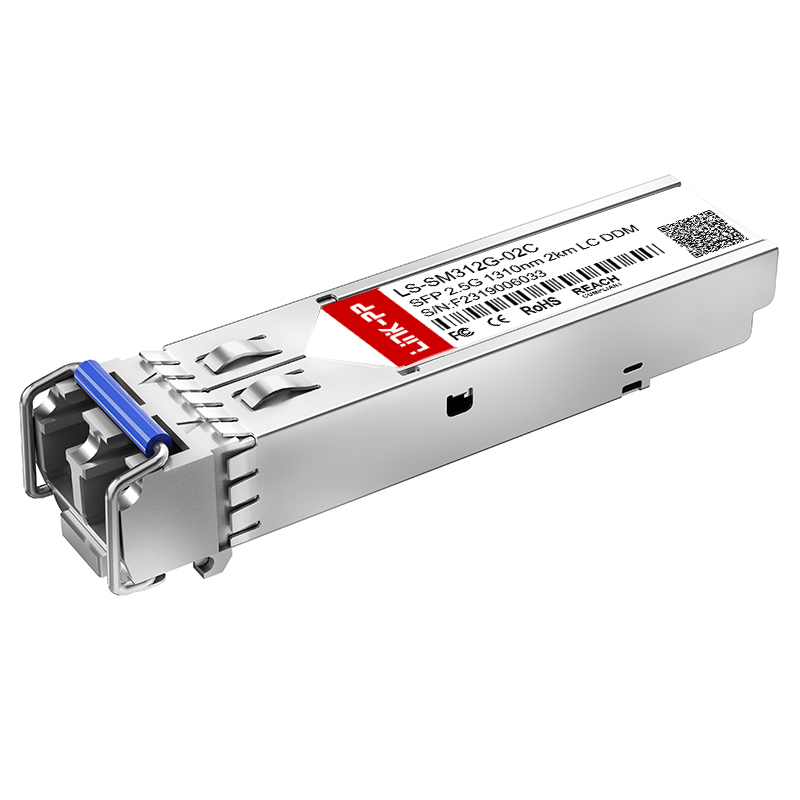

2.5GBASE-IX Duplex LC SMF Optical Transceiver Module Single Mode 1310nm 2.5G SFP Module 2km

1 / 5

2.5GBASE-IX Duplex LC SMF Optical Transceiver Module Single Mode 1310nm 2.5G SFP Module 2km

Send Inquiry

Product Description

Products Description

Item	2.5G SFP
Part Status	Active
Form Factor	SFP
Max Data Rate	2.5Gbps
Wavelength	1310nm
Max Cable Distance	2km
Media	SMF
Connector	Duplex LC
Optical Component	FP/PIN
TX Power	-10~-3dBm
Receiver Sensitivity	<-18dBm
Receiver Overload	-3dBm
Power Consumption	1W
Extinction Ratio	>8.2dB
DDM/DOM	Supported
Commercial Temperature Range	-10 to 70°C (-37 to 158°F)
Protocols	SFP MSA(INF-8074i), GR-253-CORE, ITU-T G.957, FC-PI v2.0, SFF-8472 v9.5
Warranty	5 Years
Sample	Available

⚙ Related Products SFP Cage

Why Choose Us

Company Profile

We are a specialized manufacturer of magnetic telecom and networking components, certificated by ISO9001:2000, ROSH, REACH, CE and UL, owning advanced manufacturing facilities and test equipments imported from abroad. Established in 1997, we have around 2000 staff at present. With the abundant productive capacity of 3000K per month, we are able to delivery the goods within the short time. Moreover, we can provide the professional complete solution for magnetic components and strong technical support as well.

Main Products: 10/100/1000M LAN pulse transformer and filter, RJ45 connector with 10/100/1000M magnetic, T1/E1, T3/DS3/E3/STS-1 interface line transformer, ISDN, HDSL, ADSL and VDSL interface line transformer and splitter. Our products are widely used in networking and communication equipments such as HUB, PC card, Switch, Router, PC Mainboard, SDH, PDH, IP Phone, xDSL modem. We have exported our products to more than 30 countries and regions in the world. Our customers cover most of the countries in the world, including Germany, France, England, USA, Singapore, Korea, Canada and Japan.

Our engineering staff is dedicated to identifying, developing and manufacturing the optimal solution for our customers' unique requirements. We trust that our strength in the field and our faith of pursuing higher will convince you to be our longterm partner.

FAQ

Are you a factory or trading company?

We are a specialized manufacturer of magnetic telecom and networking components, such as RJ45 connectors, LAN transformers, RJ11 connectors, and SFP modules, etc.

Can I get a sample before mass production?

Yes, we can offer you free sample to test quality, but you should pay the shipping fee.

What is your delivery time?

Ready to ship for stock items, and 15-30 days for mass production orders.

What after-service can you offer?

We offer a one-year guarantee period along with online technical support 24 hours a day.

Can you accept OEM/ODM order?

Yes, please send your inquiry to us so that we can have a detailed discussion regarding your custom requirements.

What is your advantage?

We have over 19 years of dedicated production experience in delivering high-reliability and certified communication components.
