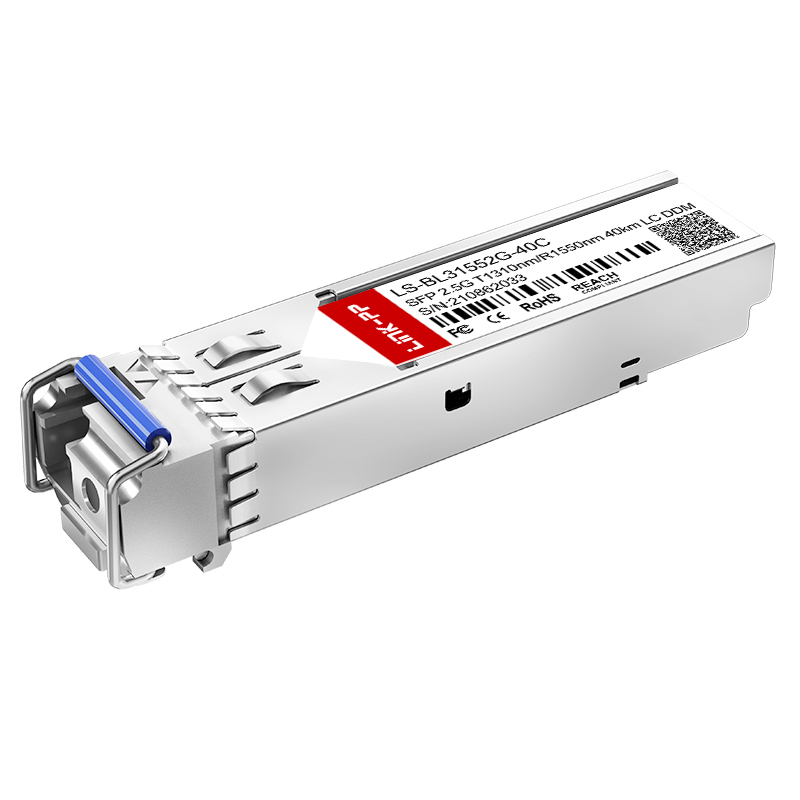

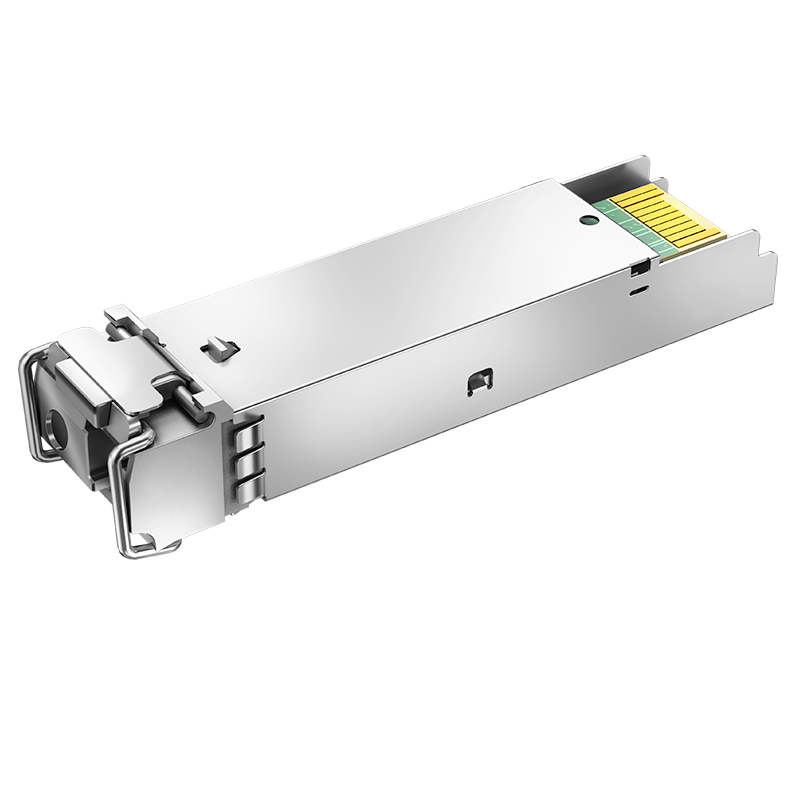

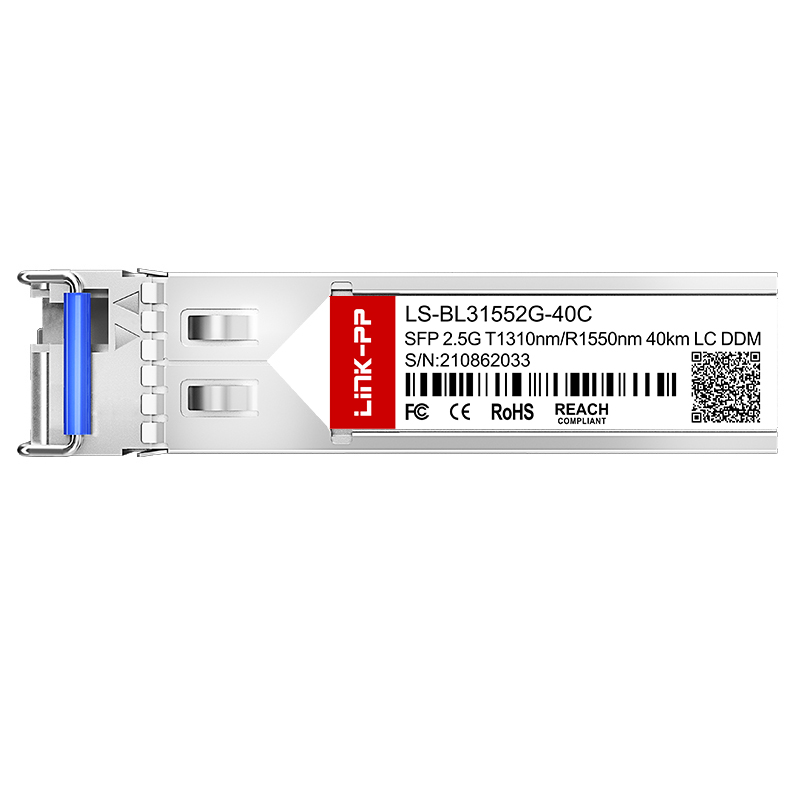

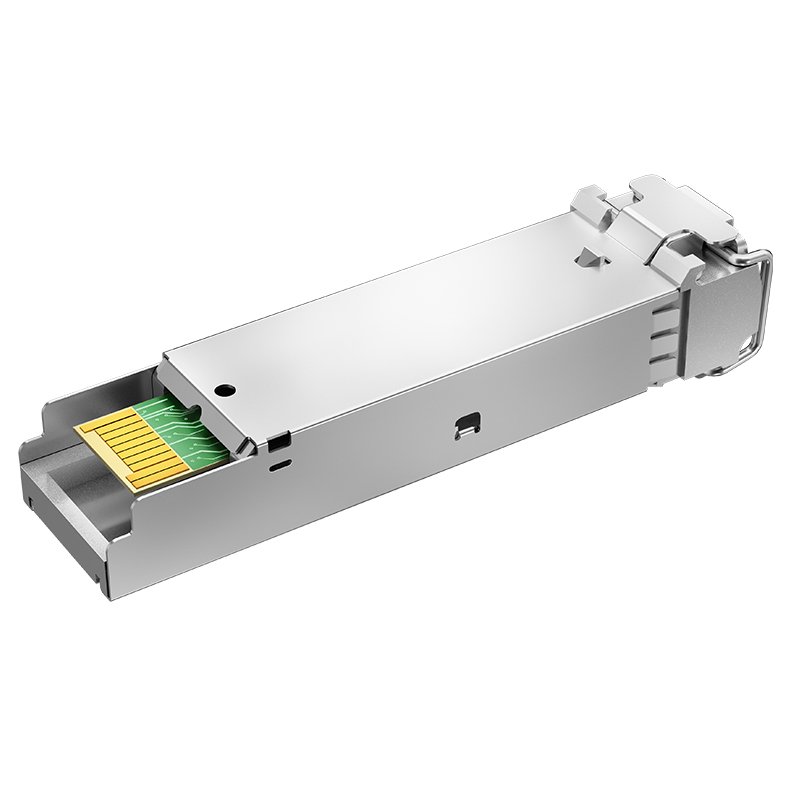

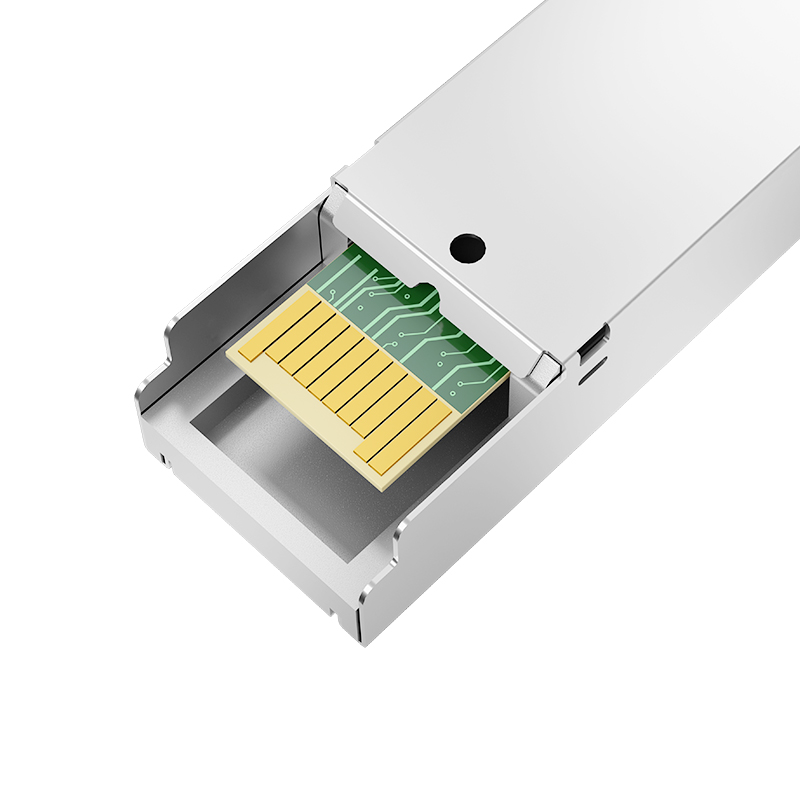

1310nm-TX/1550nm-RX Bidirectional SFP 2.5G Bidi 40km SMF LC Optical Transceiver Module

Product Description

1310nm-TX/1550nm-RX Bidirectional SFP 2.5G Bidi 40km SMF LC Optical Transceiver Module
Part No. LS-BL31552G-40C
Form Factor SFP
Max Data Rate 2.5Gbps
Wavelength 1310nm-TX/1550nm-RX
Max Cable Distance 40km
Connector Simplex LC
Media SMF
Transmitter Type DFB
Receiver Type PIN
EMC (Electro Magnetic Compatibility) Supported
DDM/DOM Supported
Protocols Fast Ethernet, Gigabit Fibre Channel, MSA Compliant
Temperature Range 0 to 70°C / -40 to 85°C
Warranty 5 Years
Sample Available
VIEW OUR SOLUTIONS

We draw on over 10 years of experience in chips and modules to integrate fast speeds, small size, power savings, and high performance in every module.

A full series of optical modules is provided for fixed access, wireless access, carrier Ethernet, wavelength division multiplexing (WDM), and data communication networks.

SFP Solutions
Support 1.25G BiDi SFP
1.25G BiDi SFP Type 1 1.25G BiDi SFP Type 2
Support 10G/25G BiDi SFP
10G/25G BiDi SFP
Transceiver Module Quality
SFP Modules Category
Optical Transport Networks
Optical Transport Networks

End-to-end DWDM devices with almost all optical devices - from active modules to optical passive devices, including optical amplifier (EDFA & RFA), Mux & Demux, OPM, ROADM, MCS, OLP, and OTDR etc. are provided.

Cloud and Enterprise
Cloud and Enterprise

To meet the demand of mass data transmission in data centers, a series of high-speed optical modules with product rates ranging from 10G to 800G has been developed, providing high-quality optical interconnection solutions for data centers.

Wireless
Wireless

High reliability and performance products with mature and efficient lasers and mainstream chip solutions are provided to customers all around the world. The solution includes Dark Fiber, WDM, Radio over Fiber, High Speed, Mid-haul and Back-haul which could meet all the needs of various scenarios in 4G/5G systems.

FTTx
FTTx

Aiming at global communication network constructors, total FTTx optical fiber access solutions covered from all-optical or optical copper combined access solutions and products are provided.

Subsystems
Subsystems

To ensure the normal operation of the communication line, the optical cable O&M solution is provided, which integrates an optical line protection system (OLP) and an optical line monitoring system (OLM).

❖ Related Products SFP Cage ❖
SFP Cage Related Products
Why Choose Us
Advantage 1 Advantage 2 Advantage 3 Advantage 4
Profile

A specialized manufacturer of magnetic telecom and network components, certified by ISO9001:2000, ROSH, REACH, CE and UL, with advanced manufacturing equipment and testing equipment imported from abroad. Established in 1997, with about 2000 employees at present. With the abundant production capacity of 3000K per month, we are able to deliver products within a short time. In addition, we provide a complete series of optical modules for fixed access, wireless access, carrier Ethernet, wavelength division multiplexing (WDM), and data communication networks. The range also includes high-speed optical interconnect solutions for cloud computing and ultra-broadband networks. Using the latest optoelectronic technologies, products are designed, manufactured, and sold worldwide.

Facility Environment 1 Facility Environment 2
Frequently Asked Questions (FAQ)
Are you a factory or a trading company?
We are a specialized manufacturer of magnetic telecom and networking components, including RJ45 connectors, LAN transformers, RJ11 connectors, SFP modules, and more.
Can I get a sample before mass production?
Yes, we can offer you free samples to test quality, but shipping costs are the responsibility of the customer.
What is your delivery time?
Products in stock are ready to ship. For mass production items, the standard delivery time is 15-30 days.
What after-service can you offer?
We offer a one-year warranty period and provide technical support online 24 hours a day.
Can you accept OEM/ODM orders?
Yes, please send your requirements to us so we can proceed with a detailed discussion.
What is your advantage?
We have 19 years of manufacturing experience, utilizing high-quality standards to deliver reliable telecommunication and networking components globally.
