OptiLinker
OptiLinker
| item | value |
|---|---|
| Model Number | Low profile rj45 jack |
| Part Status | Active |
| Connector Type | RJ45 |
| Applications-Lan | Ethernet(PoE/Non_PoE) |
| Speed | 10/100/1000/2.5G/5G/10G Base-T, AutoMDIX |
| Mounting Type | Through Hole |
| Orientation | 90° Angle (Right) |
| Termination | Solder |
| Contact Finish Thickness | 6.00µin (0.152µm) |
| LED Color | Yellow/Green, Green/Yellow, Green&Yellow/Green&Yellow |
| Number of Cores per Jack | 4/6/8/12 |
| Shielding | Shielded, Emi Finger |
| Number of Ports | Single Port |
| Features | Board Guide |
| Tab Direction | Down/Up |
| Contact Finish | Gold |
| Configuration RX/TX | T,C |
| Turns Ratio RX/TX | 1CT:1CT |
| Operating Temperature | 0°C ~ 70°C/-40°C ~ +85°C |
Package: Tray
Carton size: 40*32*33cm
G.W./carton: 12.3kg
Qty/carton: 1200pcs
SPQ: 50pcs
N.W/pcs: 0.01kg

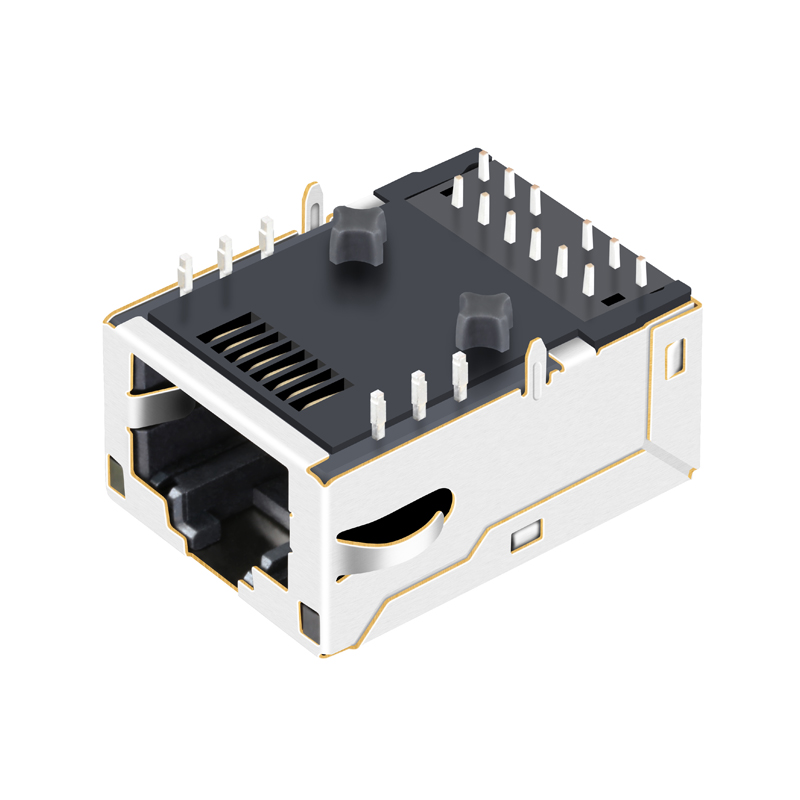

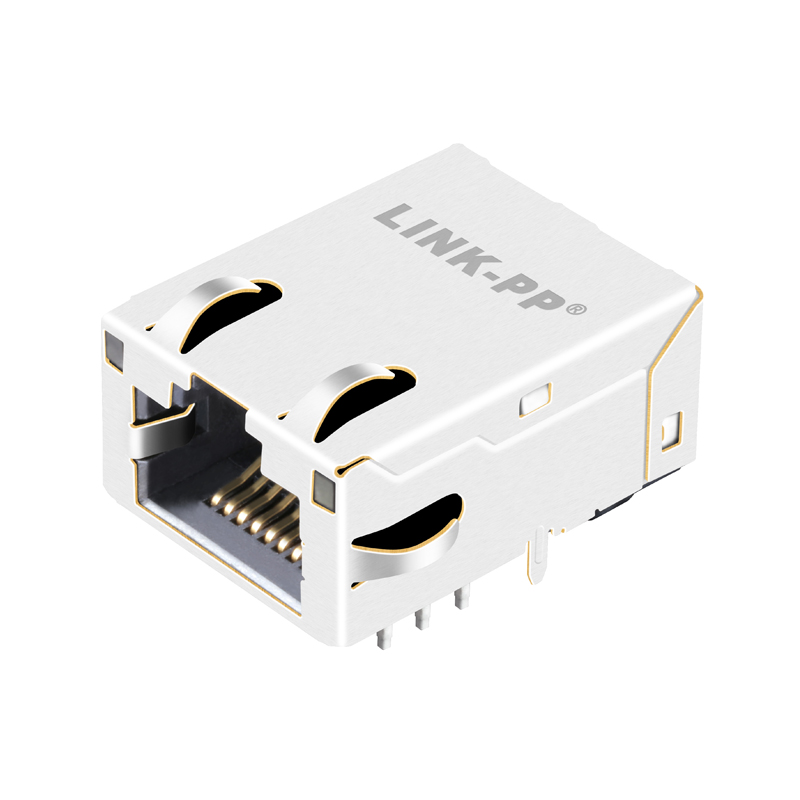

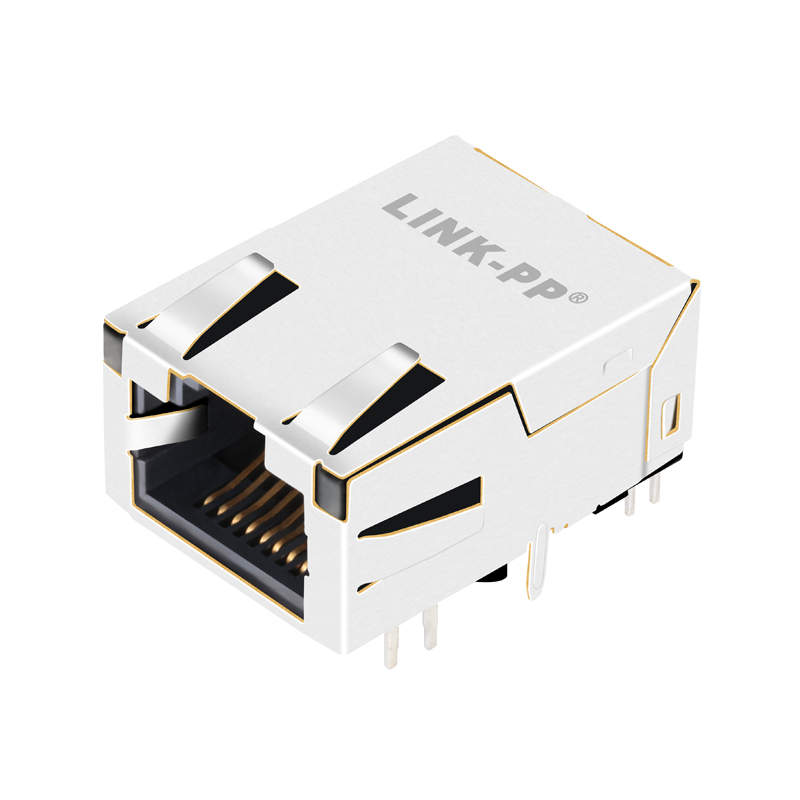

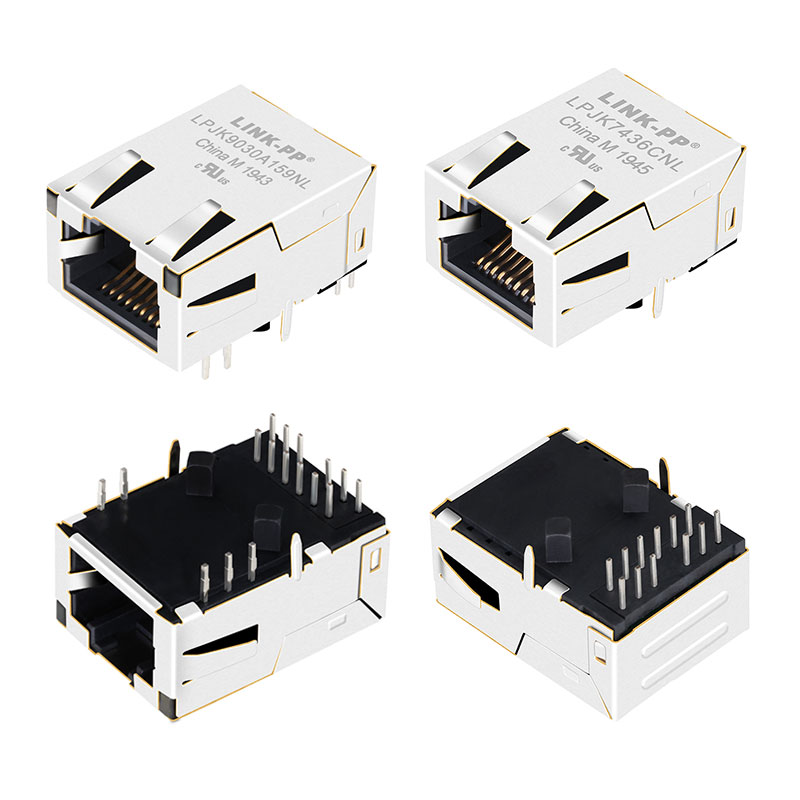

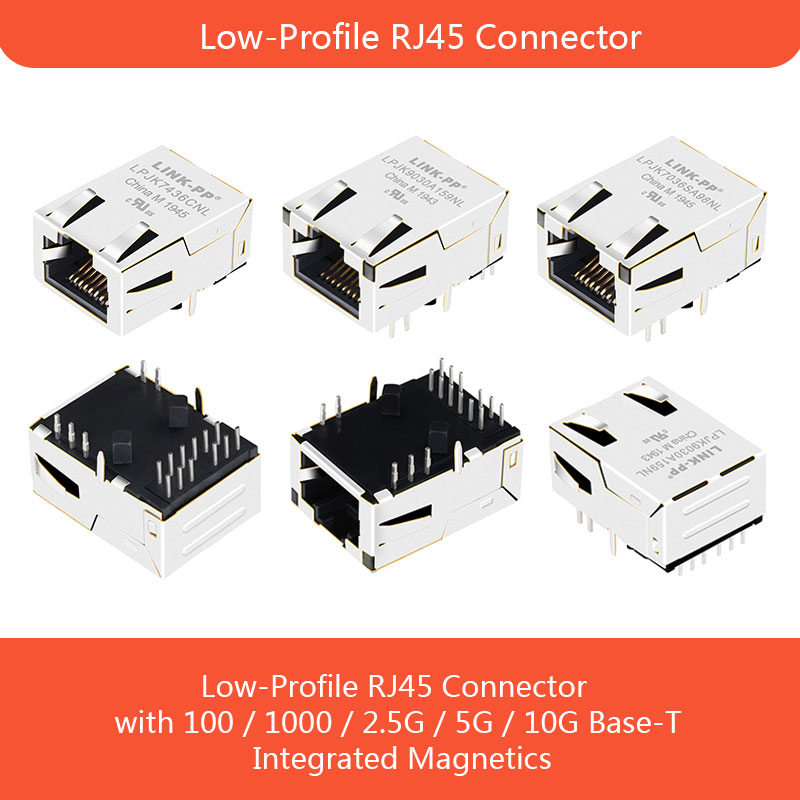

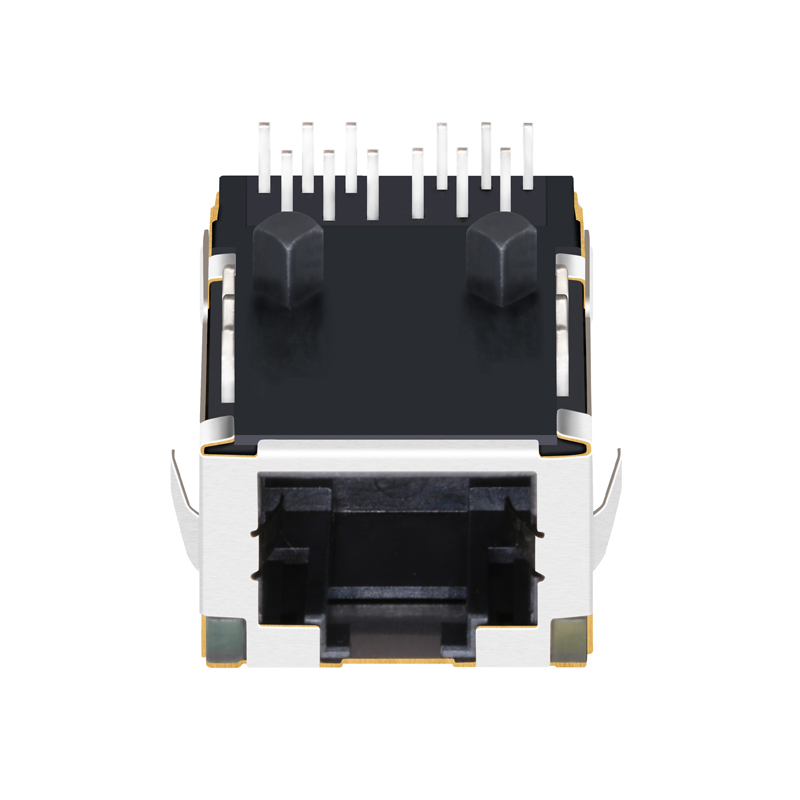

The low profile RJ45 jack includes an integrated transformer or common mode choke, supports Power over Ethernet (PoE) up to 50 Watt, speeds up to 10 Gbit/s, and features improved Common Mode Rejection due to additional NiZn cores.
Quality assurance includes a strict pre-production sample evaluation before commencing mass production, followed by a thorough final inspection of all units prior to shipment.
These RJ45 connectors are fully compliant with IEEE 802.3u, IEEE 802.3ab, IEEE 802.3af, IEEE 802.3at, and upcoming IEEE 802.3bt standards. The manufacturing process and quality systems are certified by SGS, ISO9001:2008, UL, REACH, and CE.
The primary product offerings include RJ45 Magnetic modules, LAN transformers, RJ11 Connectors, RJ45 Connectors, and SFP modules.
Products are packaged in trays, with standard cartons measuring 40*32*33 cm. The gross weight per carton is 12.3 kg containing 1200 pieces, with a standard packaging quantity (SPQ) of 50 pieces. The net weight per piece is 0.01 kg.
Accepted Delivery Terms include FOB, CFR, CIF, EXW, FAS, CIP, FCA, CPT, DEQ, DDP, DDU, and Express Delivery. Supported payment currencies include USD, EUR, JPY, CAD, AUD, HKD, GBP, CNY, and CHF. Accepted payment formats include T/T, L/C, D/P, D/A, MoneyGram, Credit Card, PayPal, Western Union, Cash, and Escrow.
