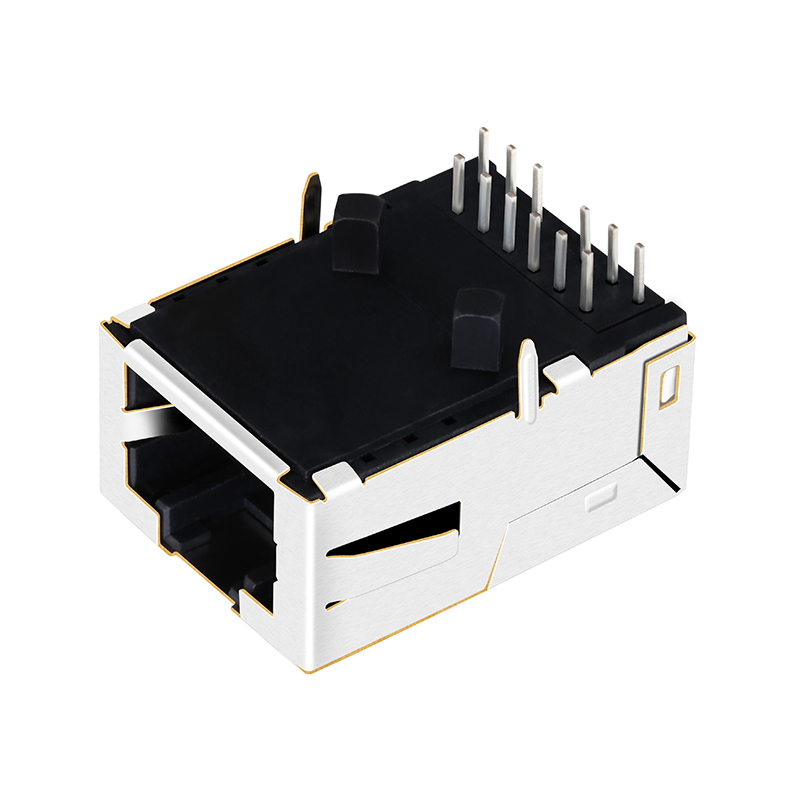

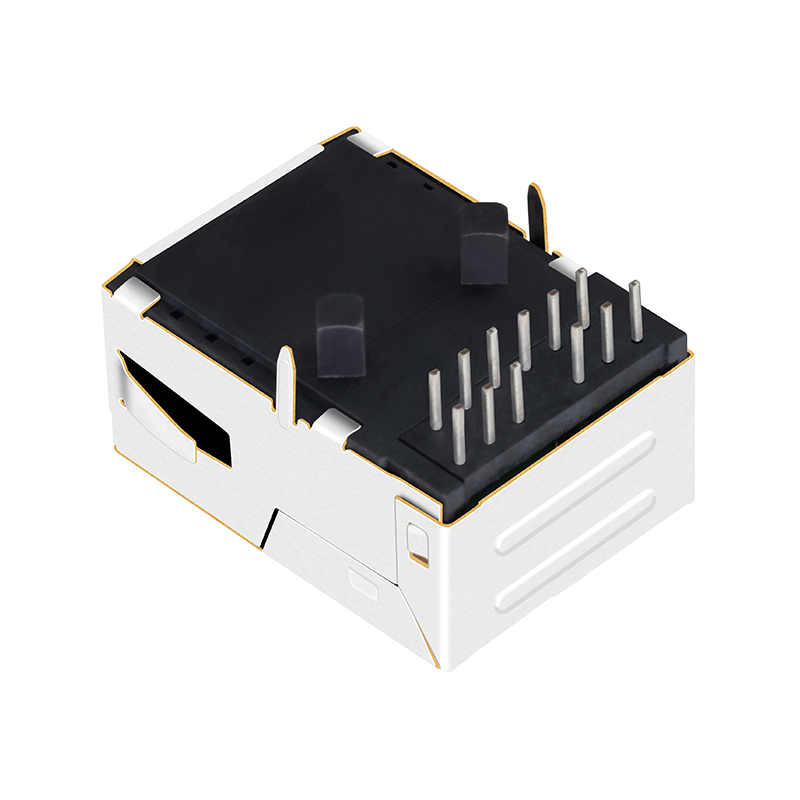

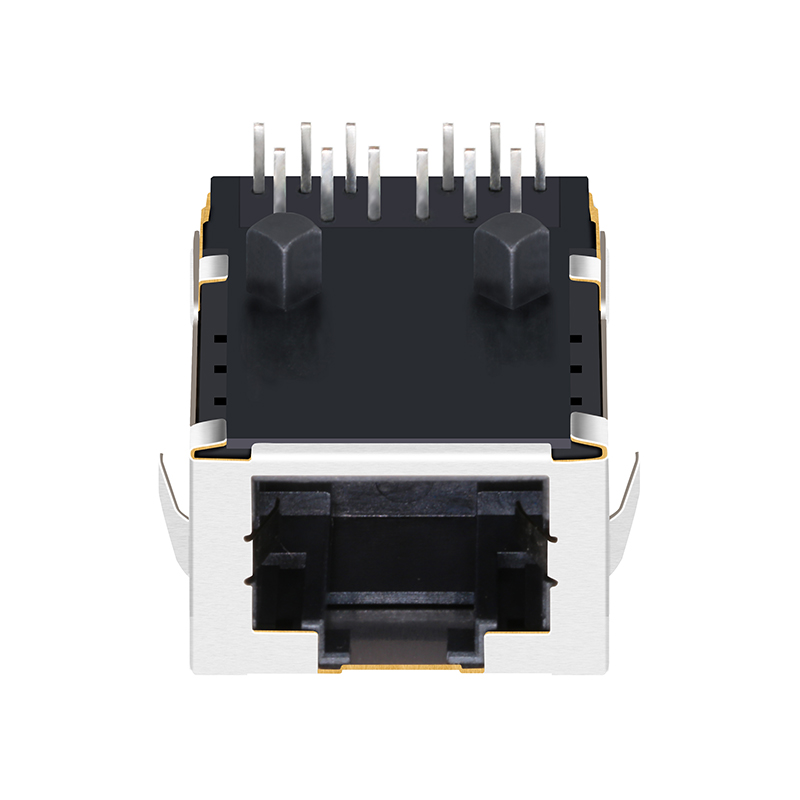

L8AL-1X1T-32A 10/100/1000 Base-t Magnetic Ethernet Low Profile Female RJ45 Connector Without Leds
L8AL-1X1T-32A 10/100/1000 Base-t Magnetic Ethernet Low Profile Female RJ45 Connector Without Leds
L8AL-1X1T-32A 10/100/1000 Base-t Magnetic Ethernet Low Profile Female RJ45 Connector Without Leds
L8AL-1X1T-32A 10/100/1000 Base-t Magnetic Ethernet Low Profile Female RJ45 Connector Without Leds
L8AL-1X1T-32A 10/100/1000 Base-t Magnetic Ethernet Low Profile Female RJ45 Connector Without Leds
1 / 5
L8AL-1X1T-32A 10/100/1000 Base-t Magnetic Ethernet Low Profile Female RJ45 Connector Without Leds
L8AL-1X1T-32A 10/100/1000 Base-t Magnetic Ethernet Low Profile Female RJ45 Connector Without Leds
L8AL-1X1T-32A 10/100/1000 Base-t Magnetic Ethernet Low Profile Female RJ45 Connector Without Leds
L8AL-1X1T-32A 10/100/1000 Base-t Magnetic Ethernet Low Profile Female RJ45 Connector Without Leds
L8AL-1X1T-32A 10/100/1000 Base-t Magnetic Ethernet Low Profile Female RJ45 Connector Without Leds

L8AL-1X1T-32A 10/100/1000 Base-t Magnetic Ethernet Low Profile Female RJ45 Connector Without Leds

Send Inquiry

Product Description

L8AL-1X1T-32A 10/100/1000 Base-t Magnetic Ethernet Low Profile Female RJ45 Connector Without Leds
Magnetic Ethernet Female RJ45 Connector
Products Description
Item RJ45 Female Connector
Part Number LPJK7436CNL
Compatible With L8AL-1X1T-32A
Part Status Active
Connector Type Jack
Number of Positions/Contacts 8p8c (RJ45, Ethernet)
Application-Lan Ethernet(NoN PoE)
Number of Ports 1x1 Port
Speed 10/100/1000 Base-T
Latch Up
Cores per Port 8
Orientation 90° Angle (Right)
PCB Mount Angle SIDE ENTRY
Shield EMI Tabs With
LED Option Without
PCB FR4
PCB Retaining Post T POST
Temperature -40℃ TO 85℃
Bst Circuit Yes
AutomDX YES
Contact Mating Area Plating GOLD 6u"/15u"/30u"
Turns Ratio RX/TX 1CT:1CT
Configuration RX/TX T,C
RJ45 Connector Dimensions Product Options
Product Details View 1
Product Details View 2
Product Details View 3
Product Production line 1
Product Production line 2
Product Production line 3
Company Profile
Established in 1997, we are a professional designer and manufacturer in magnetic telecom and networking components. With an extensive line of state-of-the-art catalog products as well as custom capabilities.
We are a global supplier of magnetic telecom and networking components to OEMs, contract manufacturers, and CEMs, supplying more than 10,000+ customers over 200 countries. Building multi-warehouse systems in key areas and continuously increasing inventory, we are committed to becoming the world's leading Ethernet RJ45 connector and LAN transformer company.
Production Facility View 1
Production Facility View 2
Production Facility View 3
FAQ
? 1. Are you factory or trading company?
We are a specialized manufacturer of magnetic telecom and networking components, such as RJ45 connectors, LAN transformers, RJ11 connectors, and SFP modules, etc.
? 2. Can I get a sample before mass production?
Yes, we can offer you free sample to test quality, but you should pay the shipping fee.
? 3. What is your delivery time?
Ready to ship for stock and 15-30 days for mass production.
? 4. What after-service can you offer?
One year guarantee period and we can offer technical support online 24 hours.
? 5. Can you accept OEM/ODM order?
Yes, please send inquiry to us so that we can have a detailed discussion.
? 6. What is your advantage?
19 years of production experience and we are Intel's and Jabil's partner for many years.
