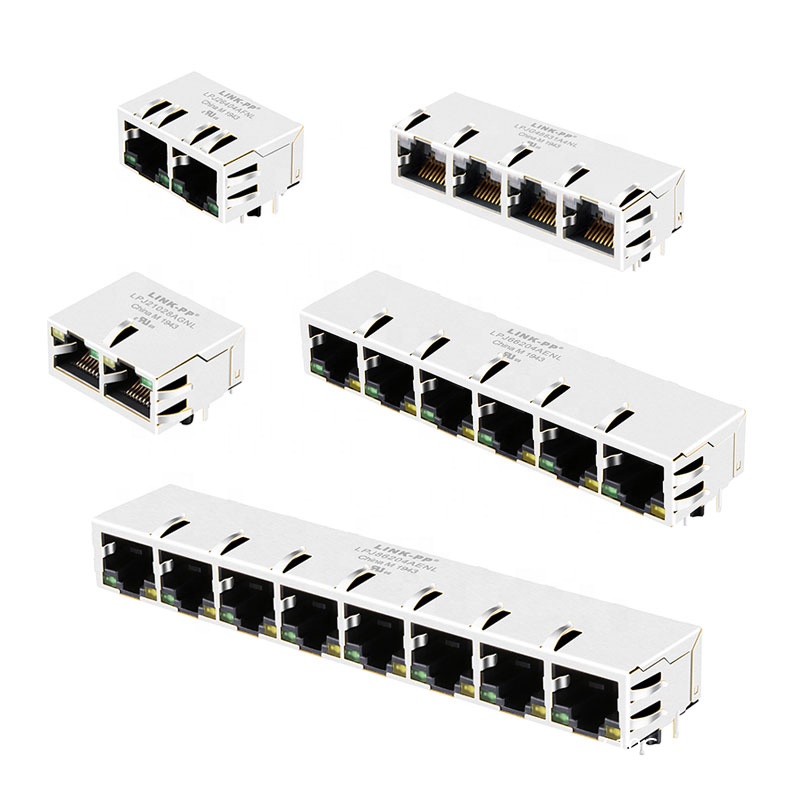

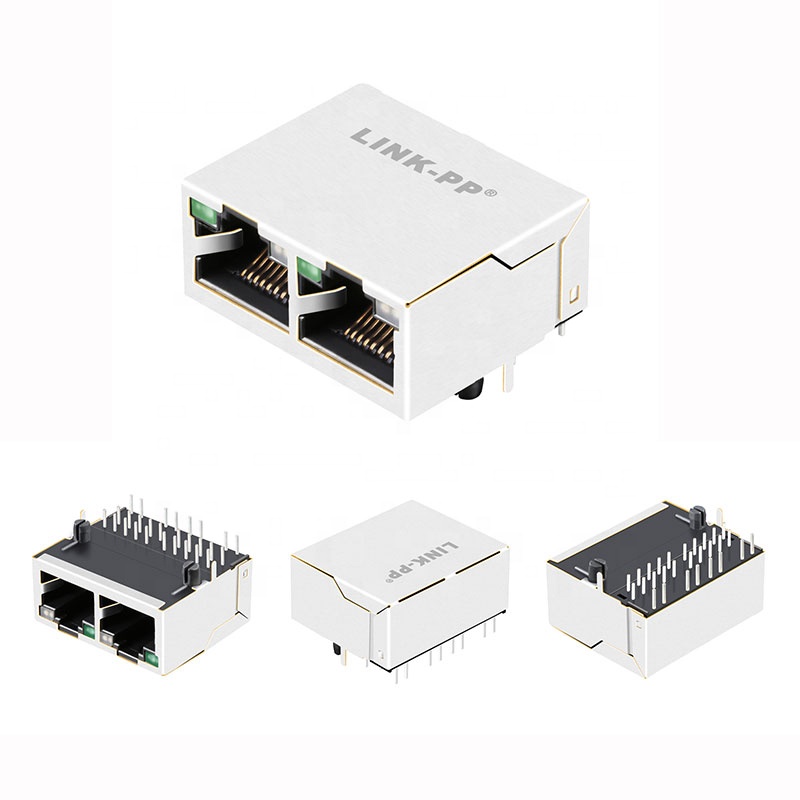

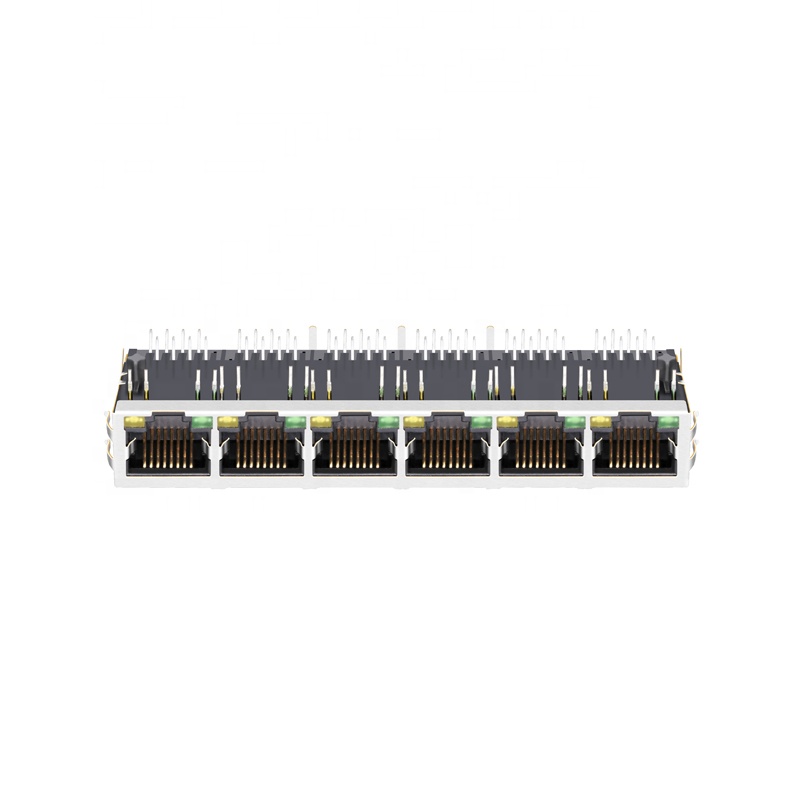

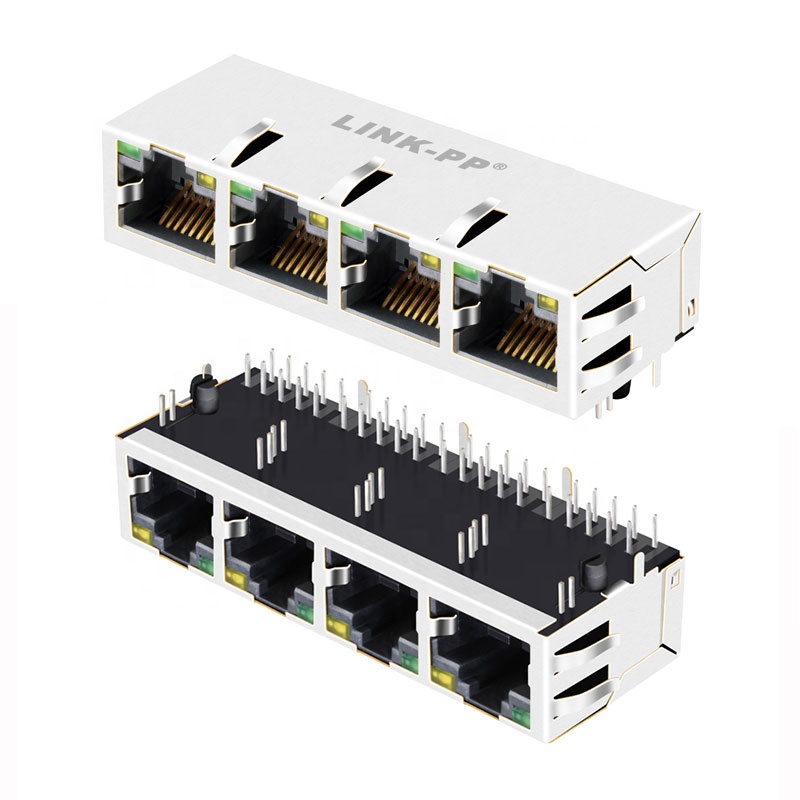

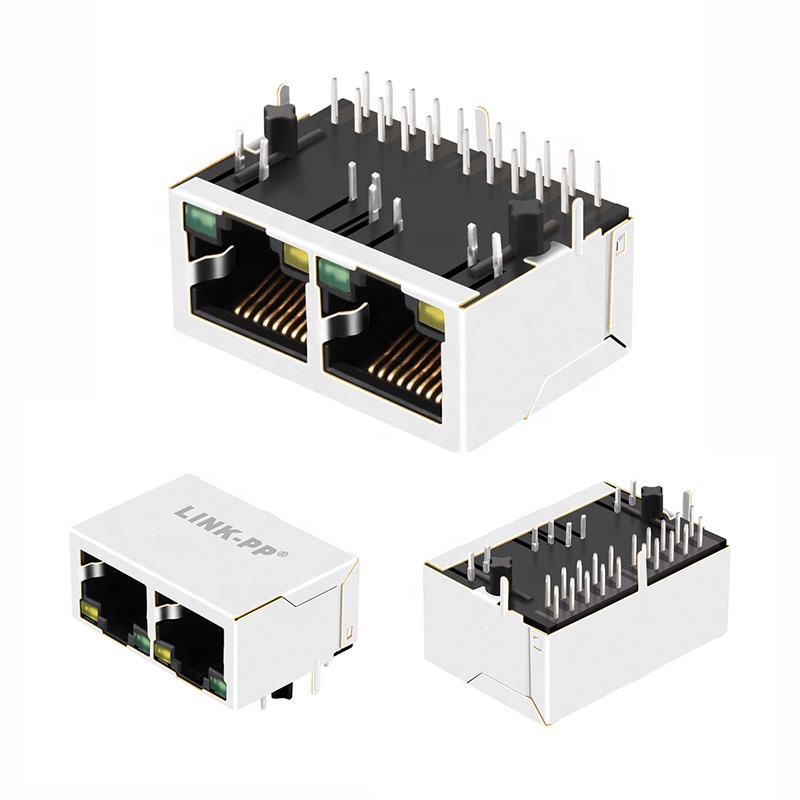

1x2 1x4 1x6 1x8 Port 100/1000/2.5G/5G/10G Base-T 10p8c 8p8c Cat5 Cat5e Cat6 Cat6a PCB Modular MagJack RJ45 Filtered Connectors
1x2 1x4 1x6 1x8 Port 100/1000/2.5G/5G/10G Base-T 10p8c 8p8c Cat5 Cat5e Cat6 Cat6a PCB Modular MagJack RJ45 Filtered Connectors
1x2 1x4 1x6 1x8 Port 100/1000/2.5G/5G/10G Base-T 10p8c 8p8c Cat5 Cat5e Cat6 Cat6a PCB Modular MagJack RJ45 Filtered Connectors
1x2 1x4 1x6 1x8 Port 100/1000/2.5G/5G/10G Base-T 10p8c 8p8c Cat5 Cat5e Cat6 Cat6a PCB Modular MagJack RJ45 Filtered Connectors
1x2 1x4 1x6 1x8 Port 100/1000/2.5G/5G/10G Base-T 10p8c 8p8c Cat5 Cat5e Cat6 Cat6a PCB Modular MagJack RJ45 Filtered Connectors
1 / 5
1x2 1x4 1x6 1x8 Port 100/1000/2.5G/5G/10G Base-T 10p8c 8p8c Cat5 Cat5e Cat6 Cat6a PCB Modular MagJack RJ45 Filtered Connectors
1x2 1x4 1x6 1x8 Port 100/1000/2.5G/5G/10G Base-T 10p8c 8p8c Cat5 Cat5e Cat6 Cat6a PCB Modular MagJack RJ45 Filtered Connectors
1x2 1x4 1x6 1x8 Port 100/1000/2.5G/5G/10G Base-T 10p8c 8p8c Cat5 Cat5e Cat6 Cat6a PCB Modular MagJack RJ45 Filtered Connectors
1x2 1x4 1x6 1x8 Port 100/1000/2.5G/5G/10G Base-T 10p8c 8p8c Cat5 Cat5e Cat6 Cat6a PCB Modular MagJack RJ45 Filtered Connectors
1x2 1x4 1x6 1x8 Port 100/1000/2.5G/5G/10G Base-T 10p8c 8p8c Cat5 Cat5e Cat6 Cat6a PCB Modular MagJack RJ45 Filtered Connectors

1x2 1x4 1x6 1x8 Port 100/1000/2.5G/5G/10G Base-T 10p8c 8p8c Cat5 Cat5e Cat6 Cat6a PCB Modular MagJack RJ45 Filtered Connectors

Send Inquiry

Product Description

Product Description
  • RJ45 Connector with integrated transformer / common mode choke
  • Power over Ethernet up to 50 Watt and speeds up to 10 Gbit/s
  • Available in SMT, THT and THT with USB
  • Compliant with standards: IEEE 802.3u, IEEE 802.3ab, IEEE 802.3af, IEEE 802.3at and upcoming IEEE 802.3bt
  • HPLE products: Improved Common Mode Rejection due to additional NiZn cores
Product Description Image
Specification
item value
Model Number Integrated Connector Modules
Part Status Active
Connector Type RJ45
Applications-Lan Ethernet(PoE/Non_PoE)
Speed 10/100/1000/2.5G/5G/10G Base-T, AutoMDIX
Mounting Type Through Hole
Orientation 90° Angle (Right)
Termination Solder
Contact Finish Thickness 6.00µin (0.152µm)
LED Color Yellow/Green, Green/Yellow, Green&Yellow/Green&Yellow
Number of Cores per Jack 4/6/8/12
Shielding Shielded, Emi Finger
Number of Ports 1x2 1x4 1x6 1x8 Port
Features Board Guide
Tab Direction Down/Up
Contact Finish Gold
Configuration RX/TX T,C
Turns Ratio RX/TX 1CT:1CT
Operating Temperature 0°C ~ 70°C/-40°C ~ +85°C
Packing & Delivery
Package
Tray
Carton Size
37*30*30cm
G.W./Carton
9kg
Qty/Carton
600pcs
SPQ
30pcs
N.W/pcs
0.015kg
Packing Image
