Home > Multi Port RJ45 Connector > JXD0-4005NL JX80-0033NL 1x4 Port 10/100 Base-T 8 Pin Led Connector Socket Network Jack

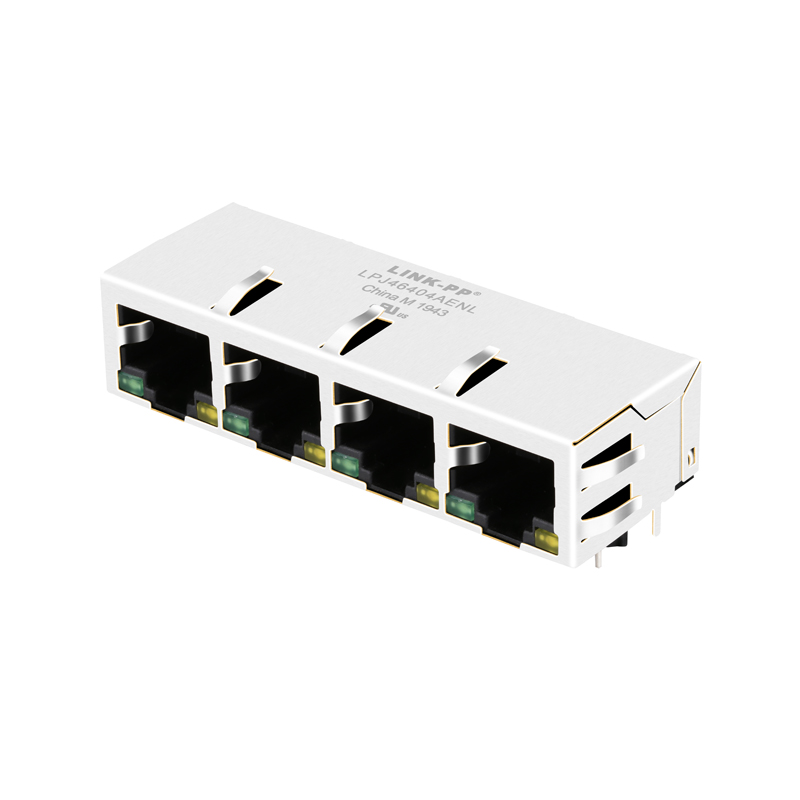

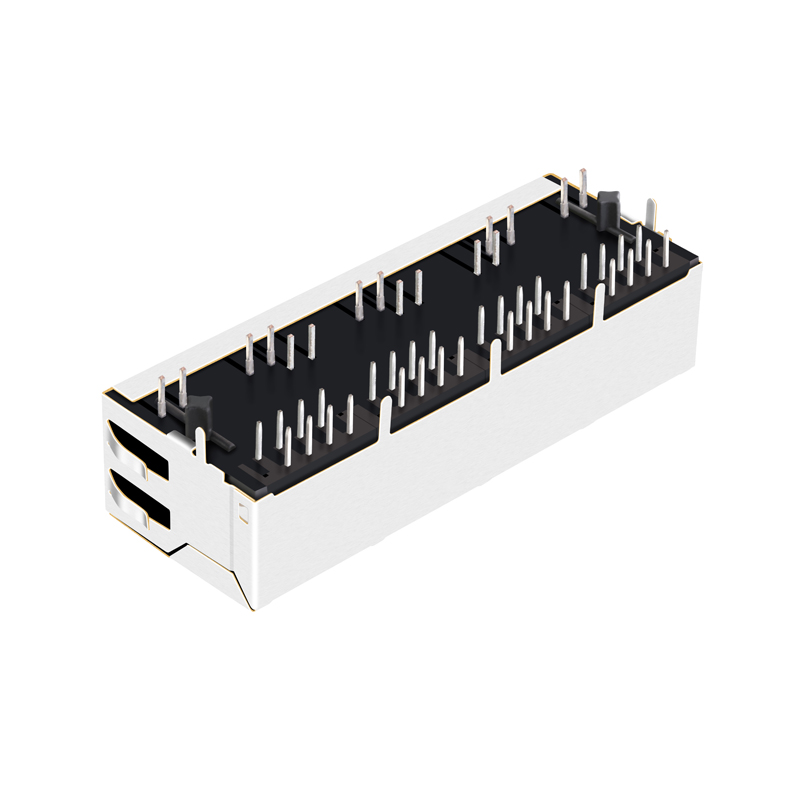

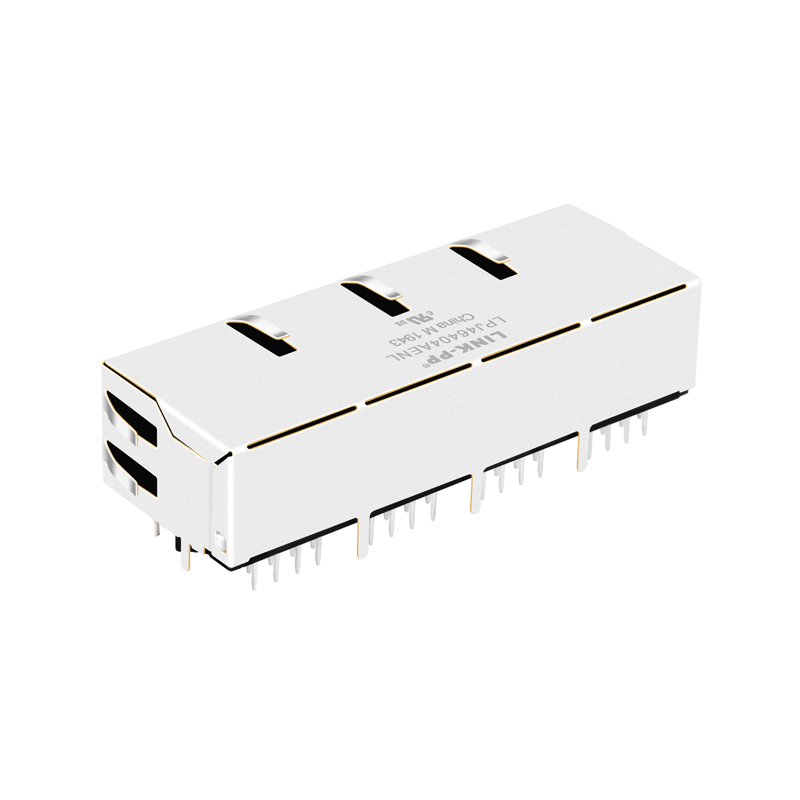

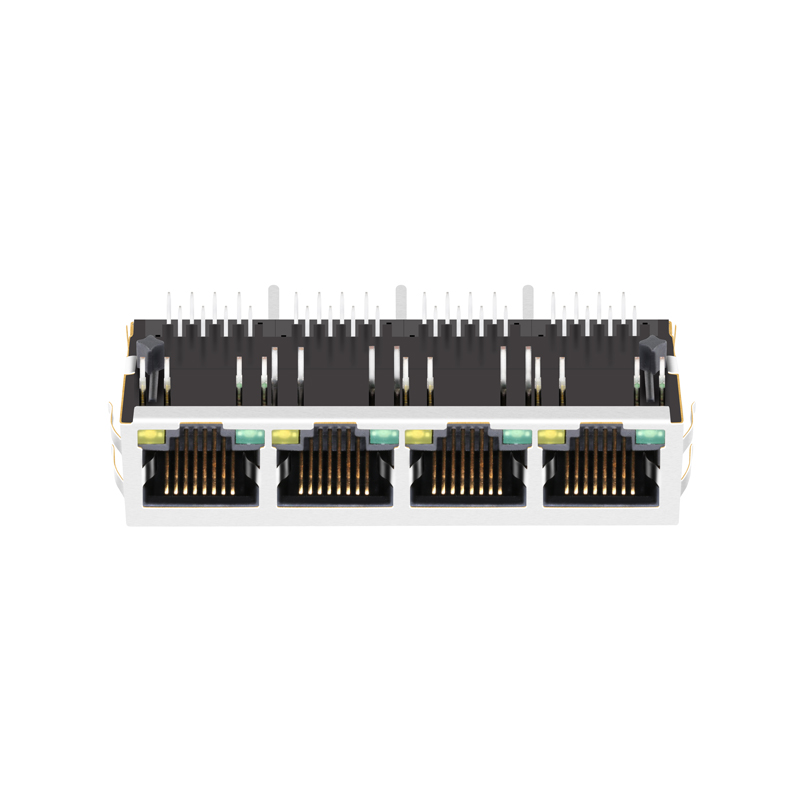

JXD0-4005NL JX80-0033NL 1x4 Port 10/100 Base-T 8 Pin Led Connector Socket Network Jack
JXD0-4005NL JX80-0033NL 1x4 Port 10/100 Base-T 8 Pin Led Connector Socket Network Jack
JXD0-4005NL JX80-0033NL 1x4 Port 10/100 Base-T 8 Pin Led Connector Socket Network Jack
JXD0-4005NL JX80-0033NL 1x4 Port 10/100 Base-T 8 Pin Led Connector Socket Network Jack
JXD0-4005NL JX80-0033NL 1x4 Port 10/100 Base-T 8 Pin Led Connector Socket Network Jack
1 / 5
JXD0-4005NL JX80-0033NL 1x4 Port 10/100 Base-T 8 Pin Led Connector Socket Network Jack
JXD0-4005NL JX80-0033NL 1x4 Port 10/100 Base-T 8 Pin Led Connector Socket Network Jack
JXD0-4005NL JX80-0033NL 1x4 Port 10/100 Base-T 8 Pin Led Connector Socket Network Jack
JXD0-4005NL JX80-0033NL 1x4 Port 10/100 Base-T 8 Pin Led Connector Socket Network Jack
JXD0-4005NL JX80-0033NL 1x4 Port 10/100 Base-T 8 Pin Led Connector Socket Network Jack

JXD0-4005NL JX80-0033NL 1x4 Port 10/100 Base-T 8 Pin Led Connector Socket Network Jack

Send Inquiry

Product Description

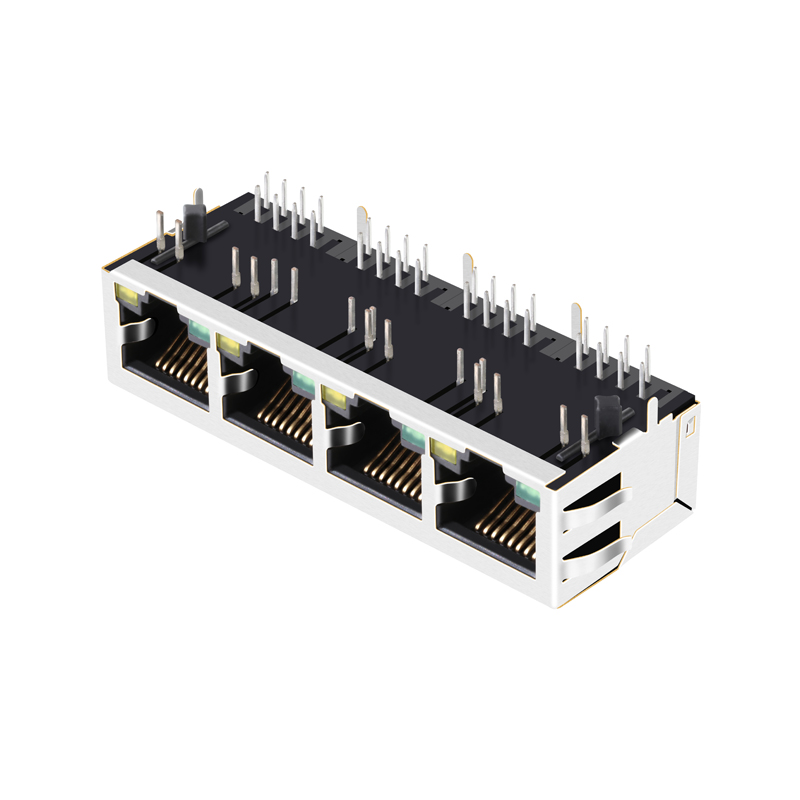

Product Display 1
Product Display 2
Product Specifications
Part NumberLPJ46404AENL
Pulse Cross ReferenceJXD0-4005NL / JX80-0033NL
StatusActive
Connector TypeRJ45
ApplicationsEthernet (Non-PoE)
Speed10/100 Base-T, AutoMDIX
Mounting TypeThrough Hole
Orientation90° Angle (Right)
TerminationSolder
Contact FinishGold, 6.00µin (0.152µm)
LED ColorGreen/Yellow
Number of Cores4 per Jack
ShieldingShielded, EMI Finger
Port Configuration1x4 Port
FeaturesBoard Guide, Tab Down
Operating Temp-40°C ~ 85°C
Detail View 1
Detail View 2
About Our Magnetic Components

A specialized manufacturer of magnetic telecom and networking components, certified by ISO9001:2000, ROHS, REACH, CE, and UL. Our production facility features advanced manufacturing and testing equipment. With an abundant monthly capacity of 3000K, we ensure short lead times and provide professional complete solutions for magnetic components alongside strong technical support.

Main Product Range:
  • 10/100/1000M / 2.5G/5G/10G LAN pulse transformers and filters
  • RJ45 connectors with 10/100/1000M / 2.5G/5G/10G magnetic
  • T1/E1, T3/DS3/E3/STS-1 interface line transformers
  • ISDN, HDSL, ADSL, and VDSL interface line transformers and splitters
Technical Drawing
Internal Schematic
Board Layout
Applications & Reliability

Our products are widely utilized in networking and communication equipments, including:

Quality Control
Manufacturing
  • Hubs, Switches, and Routers
  • PC Mainboards and SDH/PDH systems
  • IP Phones and xDSL Modems
Packaging
Certification Support
Frequently Asked Questions
Are you a manufacturer or trade company?
We are a specialized manufacturer focusing on RJ45 connectors and LAN Transformers for over 23 years, ensuring direct quality control and competitive lead times.
Can I request samples for testing?
Yes, we provide 3-5 pieces of free samples for your technical evaluation. Small batch orders are also accepted.
Do you offer OEM/ODM services?
Absolutely. We have extensive experience in converting designs into real products, including custom laser branding on the components.
What is the typical lead time?
With our high-capacity production lines, we typically ship within 30 days. For specific urgent requirements, please consult with our team.
What certifications do your products hold?
All products are manufactured under ISO9001:2000 standards and are fully compliant with RoHS, REACH, CE, and UL certifications.
What are the main applications for these RJ45 connectors?
They are widely used in networking hardware such as HUBs, PC cards, Switches, Routers, PC Mainboards, SDH, PDH, IP Phones, and xDSL modems.
