In Stocks 1000 Base-T Single Port PoE+ 24 Pin Ethernet Lan Transformer Modules TG1G-S012NZRL
In Stocks 1000 Base-T Single Port PoE+ 24 Pin Ethernet Lan Transformer Modules TG1G-S012NZRL
In Stocks 1000 Base-T Single Port PoE+ 24 Pin Ethernet Lan Transformer Modules TG1G-S012NZRL
In Stocks 1000 Base-T Single Port PoE+ 24 Pin Ethernet Lan Transformer Modules TG1G-S012NZRL
In Stocks 1000 Base-T Single Port PoE+ 24 Pin Ethernet Lan Transformer Modules TG1G-S012NZRL
1 / 5
In Stocks 1000 Base-T Single Port PoE+ 24 Pin Ethernet Lan Transformer Modules TG1G-S012NZRL
In Stocks 1000 Base-T Single Port PoE+ 24 Pin Ethernet Lan Transformer Modules TG1G-S012NZRL
In Stocks 1000 Base-T Single Port PoE+ 24 Pin Ethernet Lan Transformer Modules TG1G-S012NZRL
In Stocks 1000 Base-T Single Port PoE+ 24 Pin Ethernet Lan Transformer Modules TG1G-S012NZRL
In Stocks 1000 Base-T Single Port PoE+ 24 Pin Ethernet Lan Transformer Modules TG1G-S012NZRL

In Stocks 1000 Base-T Single Port PoE+ 24 Pin Ethernet Lan Transformer Modules TG1G-S012NZRL

Send Inquiry

Product Description

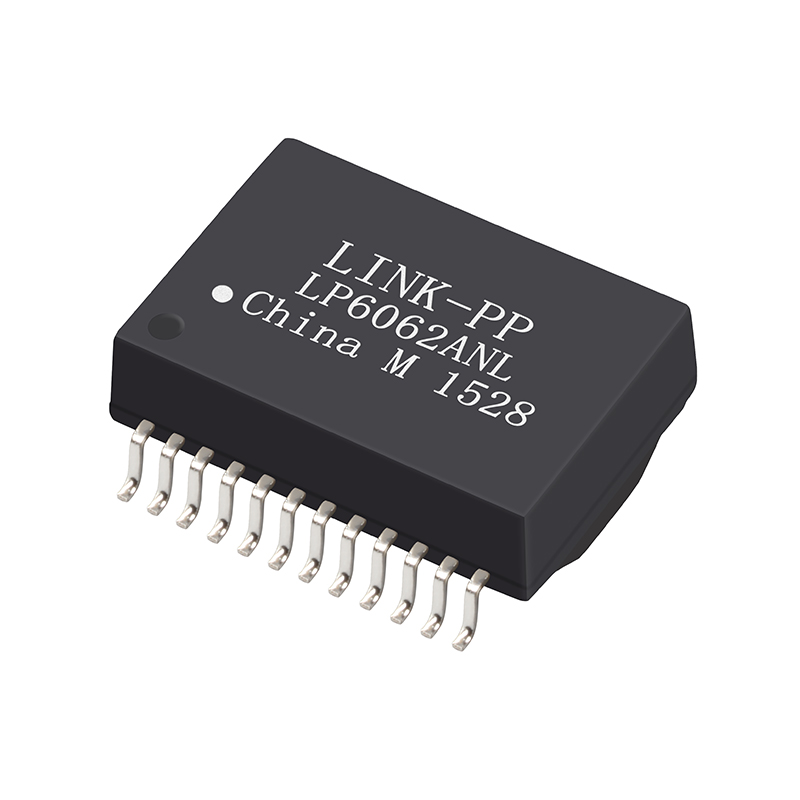

Lan Transformer Overview

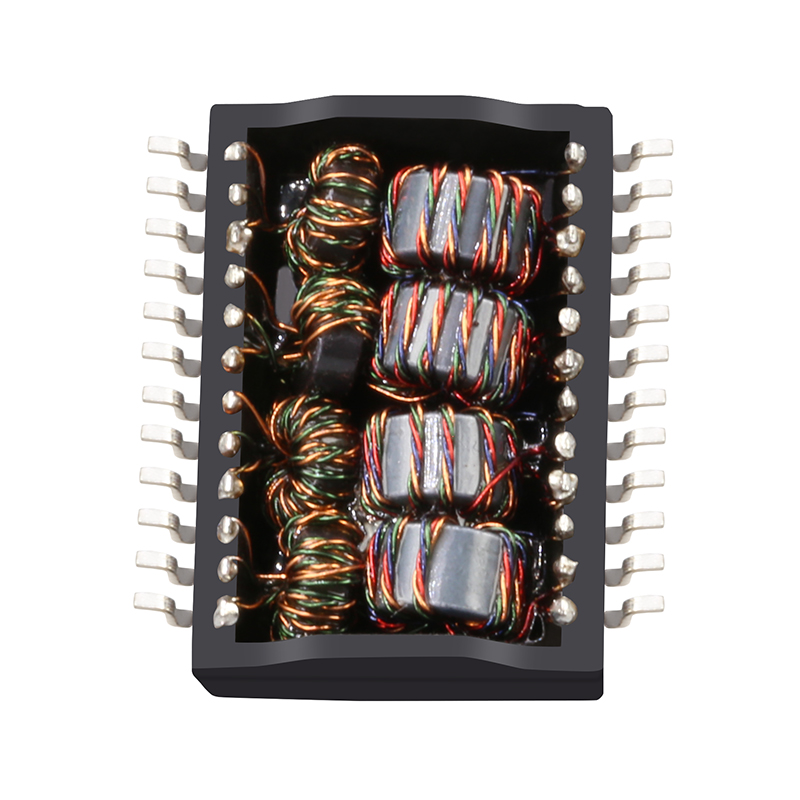

Lan Transformer Details View 1

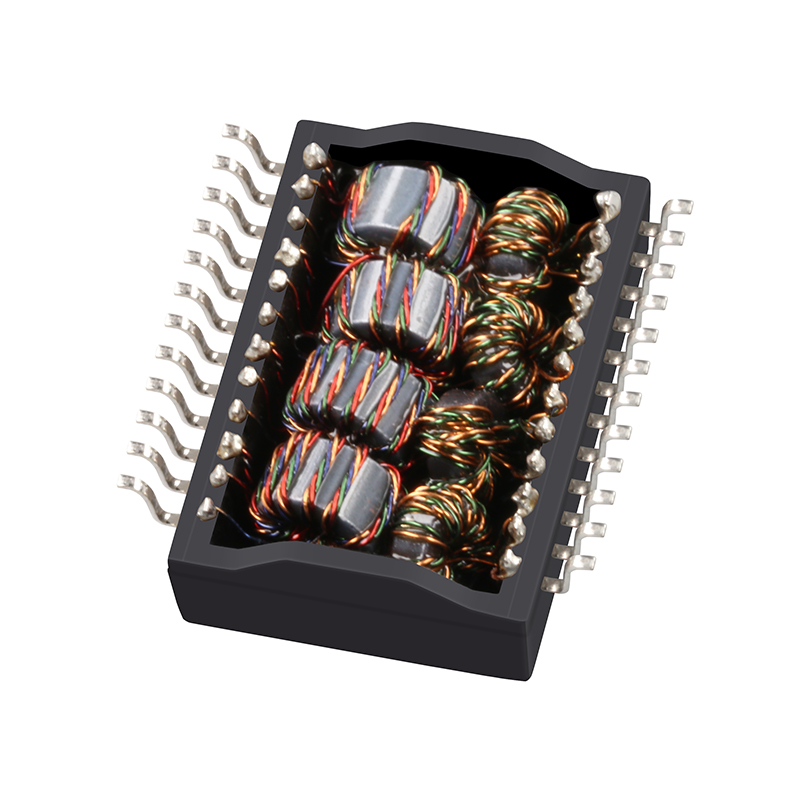

Lan Transformer Details View 2
Lan Transformer Details View 3

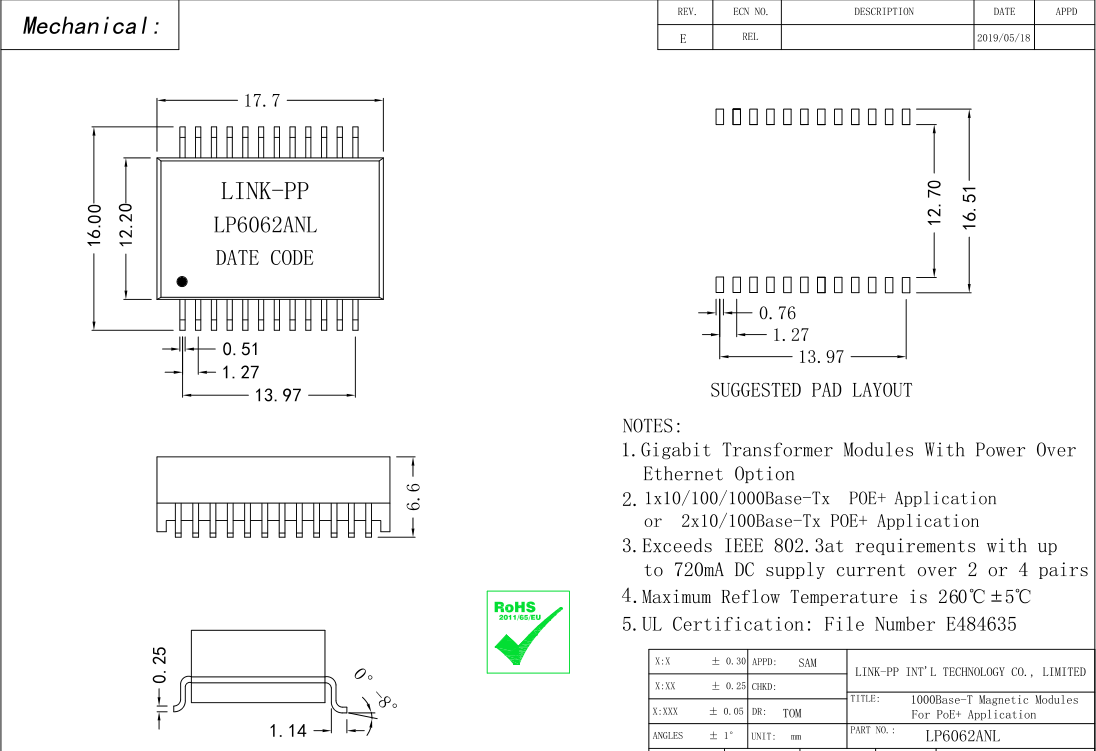

Dimensional Drawing
item value
Place of Origin China
Compatible Part Number 1 LP6062ANL
Compatible Part Number 2 TG1G-S012NZRL
Transformer Type Lan Transformer
Application-Lan Ethernet(PoE+)
Number of Ports Single Port
Speed 10/100/1000 Base-T
Package Tape & Reel
Cores per Port 8
PIN number 24 Pin
Mounting Type Surface Mount
Temperature -40℃ TO +85℃
Turns Ratio RX/TX 1CT:1CT
Configuration RX/TX T,C,S
Internal Schematic
Package Details
N.W/pcs: 0.004kg, Package: Reel, SPQ: 400pcs, Qty/carton: 1600pcs, Carton size: 37*37*25cm, G.W/carton: 5.8kg

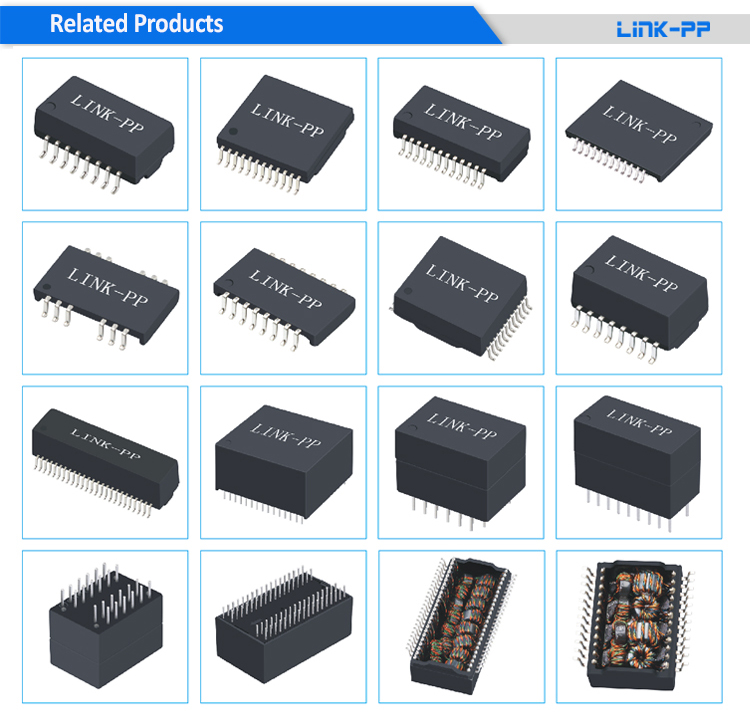

Production Environment 1
Production Environment 2
Production Environment 3

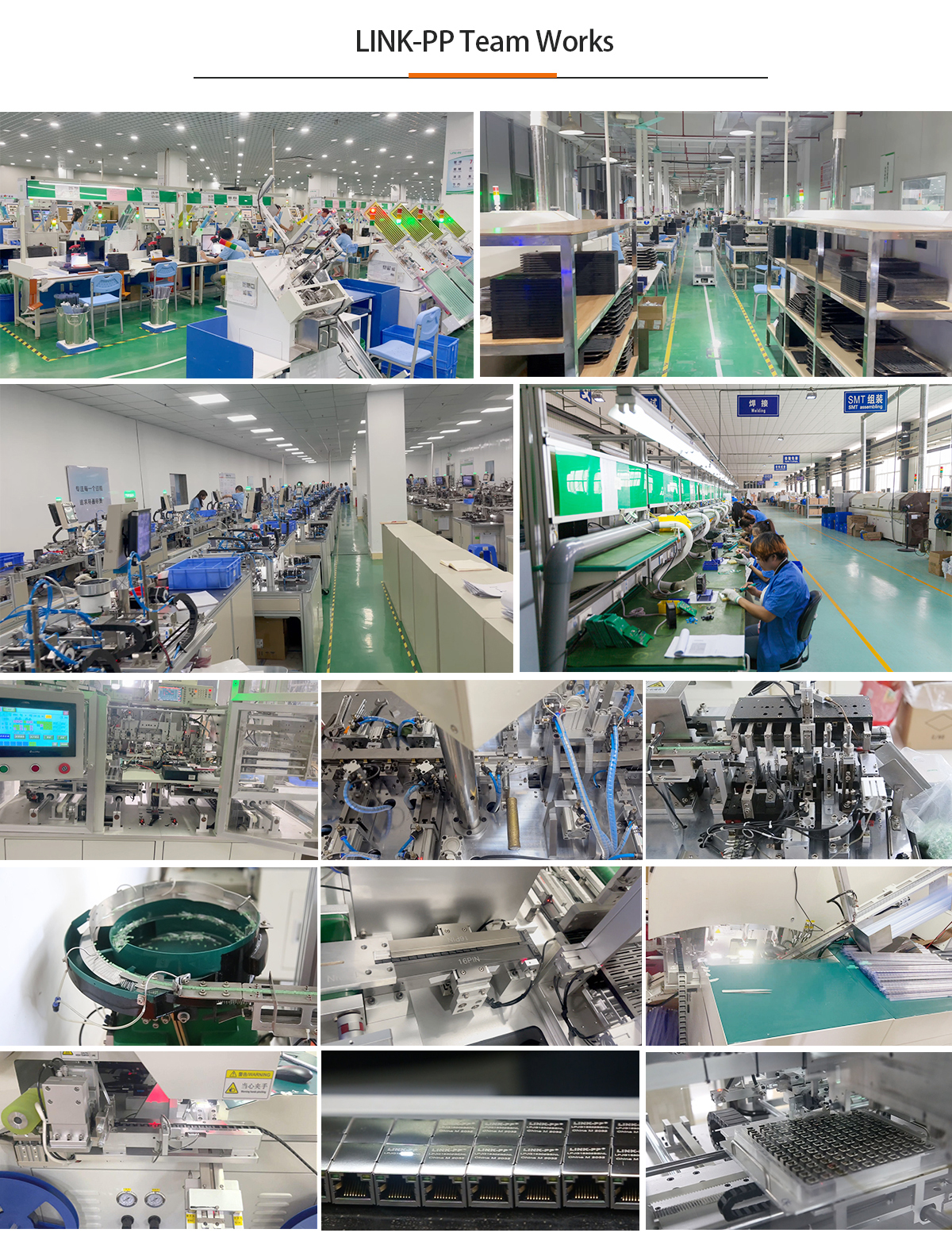

Quality Assurance 1

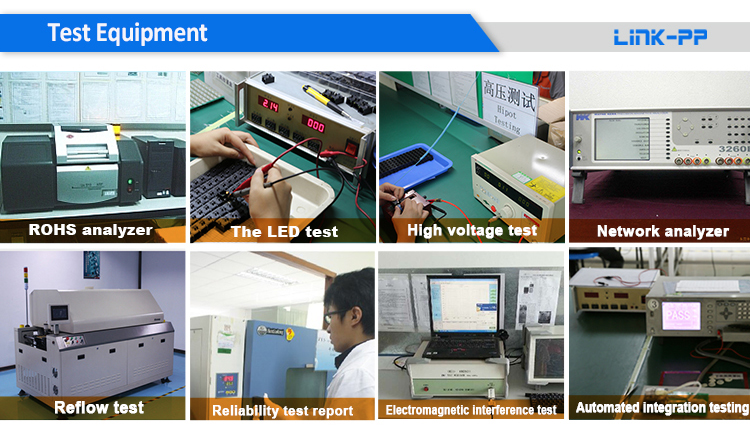

Quality Assurance 2
Quality Assurance 3
Certified Standards
Frequently Asked Questions
1. What is the application of this LAN transformer?
This LAN transformer is designed for Ethernet applications, specifically supporting Power over Ethernet (PoE+) devices, ensuring reliable performance in networking equipment.
2. What transmission speeds does this transformer support?
It supports 10/100/1000 Base-T Gigabit Ethernet speeds, making it highly versatile for modern high-speed networking solutions.
3. What is the working temperature range of the device?
The component operates reliably in harsh conditions within a wide temperature range of -40℃ to +85℃.
4. What is the mounting type and packaging of the product?
It is a surface mount (SMT) device with a 24-pin design. It comes packaged in Tape & Reel format to support automated pick-and-place manufacturing.
5. What are the packaging specifications for logistics?
Each piece weighs approximately 0.004kg. The Standard Pack Quantity (SPQ) is 400 pieces per reel, and 1600 pieces per carton. The total carton gross weight is 5.8kg.
6. What compatibility cross-references does this transformer have?
This product is designed as an equivalent cross-reference for LP6062ANL and TG1G-S012NZRL part numbers, sharing identical specifications and performance levels.
