10G Base-T 24 Pin Single Port SMT PoE Lan Magnetic Transformer XF-GH-002

1 / 5

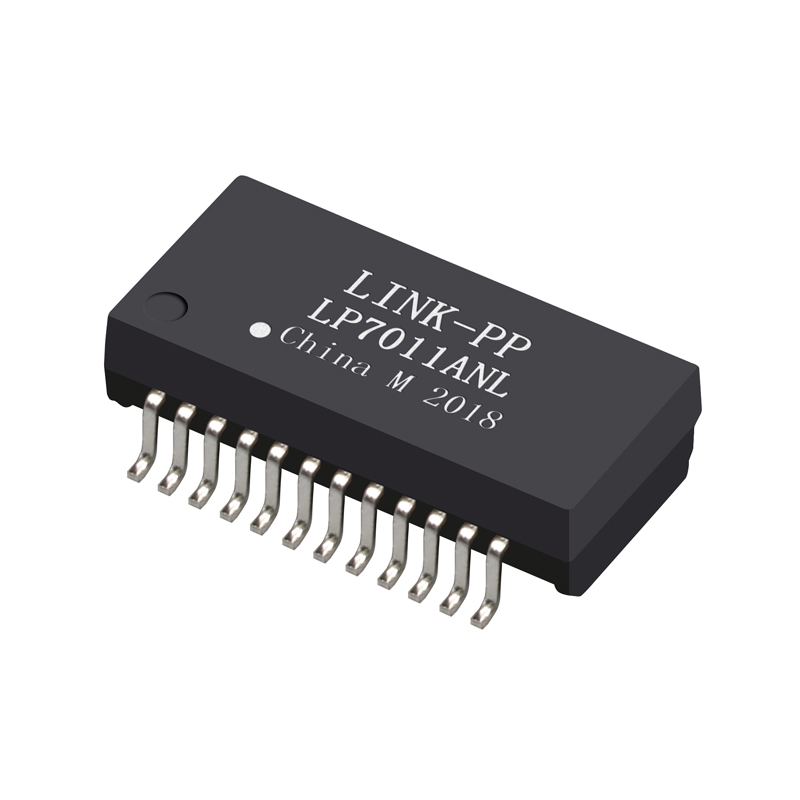

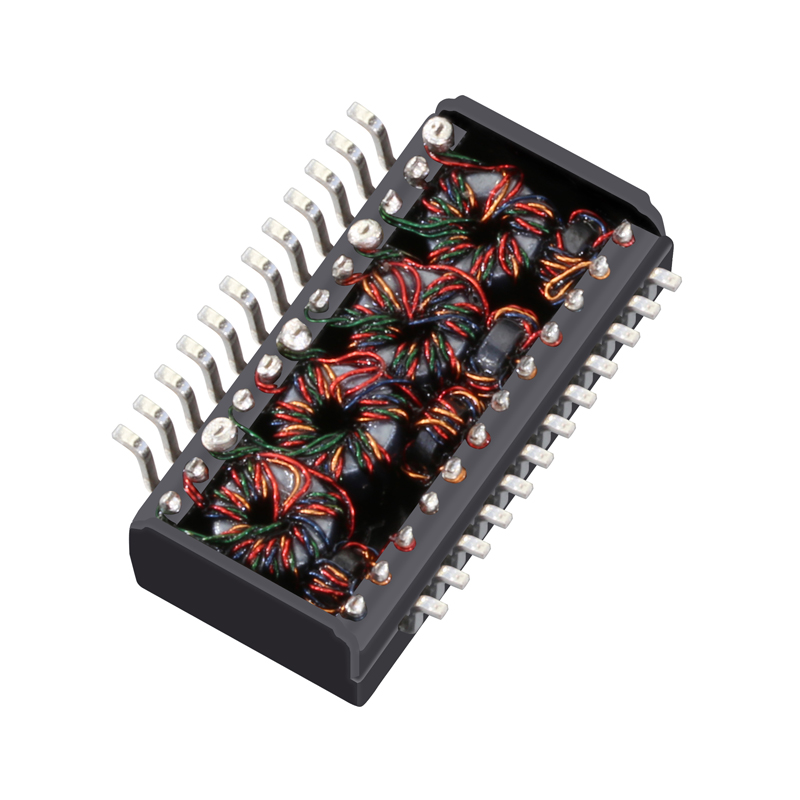

10G Base-T 24 Pin Single Port SMT PoE Lan Magnetic Transformer XF-GH-002

Send Inquiry

Product Description

Specification

item	value
Place of Origin	China
Part Number:	LP7011ANL
Pulse Part Number	XF-GH-002
Transformer Type	Lan Transformer
Application-Lan	Ethernet(PoE)
Number of Ports	Single Port
Speed	10G Base-T
Package	Tape & Reel
Cores per Port	8
PIN number	24
Mounting Type	Surface Mount
Temperature	-40℃ TO +85℃
Turns Ratio RX/TX	1CT:1CT
Configuration RX/TX	T,C,S

Packing & Delivery

Package Details:

Company Profile

We are a specialized manufacturer of magnetic telecom and networking components, certificated by ISO9001:2000, ROSH, REACH, CE and UL, owning advanced manufacturing facilities and test equipment imported from abroad. Established in 1997, we have around 2000 staff at present. With an abundant production capacity of 3000K per month, we are able to deliver goods within a short time. Moreover, we can provide professional complete solutions for magnetic components as well as strong technical support. Our products are widely used in networking and communication equipment such as HUBs, PC cards, Switches, Routers, PC Mainboards, SDH, PDH, IP Phones, and xDSL modems.

Main Products:

10/100/1000M LAN pulse transformer and filter
RJ45 connector with 10/100/1000M magnetic
T1/E1, T3/DS3/E3/STS-1 interface line transformer
ISDN, HDSL, ADSL and VDSL interface line transformer and splitter

We have exported our products to more than 30 countries and regions worldwide, including Germany, France, England, USA, Singapore, Korea, Canada, and Japan.

Our engineering staff is dedicated to identifying, developing, and manufacturing the optimal solution for our customers' unique requirements. We trust that our strength in the field and our commitment to higher standards will convince you to be our long-term partner.

Frequently Asked Questions

What is a LAN transformer and what is its primary function?

A LAN transformer (or Ethernet transformer) is a magnetic component used in network interfaces. It provides isolation, reduces noise, filters signals, and matches impedance between the PHY chip and the network cabling.

Does this transformer support Power over Ethernet (PoE)?

Yes, this component is designed for Ethernet (PoE) applications, allowing both data signals and electrical power to be safely transmitted over a single network cable.

What are the benefits of the 10G Base-T speed rating?

The 10G Base-T rating ensures the transformer is capable of supporting high-speed data transmission rates up to 10 Gigabits per second, suitable for advanced networking, server, and data center configurations.

What does the operating temperature range of -40℃ to +85℃ indicate?

This indicates the component meets industrial-grade temperature requirements. It is built to perform reliably in extreme cold and hot environments.

What is the significance of the 1CT:1CT turns ratio?

A 1CT:1CT (1 Center Tap to 1 Center Tap) turns ratio indicates a 1-to-1 voltage transmission ratio. This provides optimal signal coupling and isolation matching without altering voltage levels.

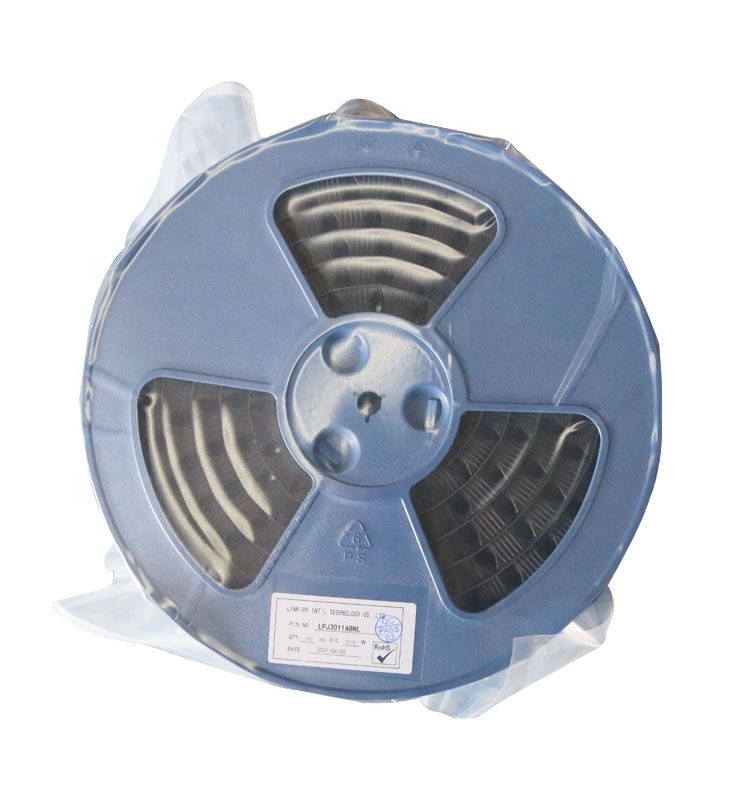

How is this product packaged for shipment?

It is packaged using Tape & Reel (SPQ: 400pcs per reel, 1600pcs per carton), which is designed to support automated surface mount (SMD) pick-and-place assembly lines.
