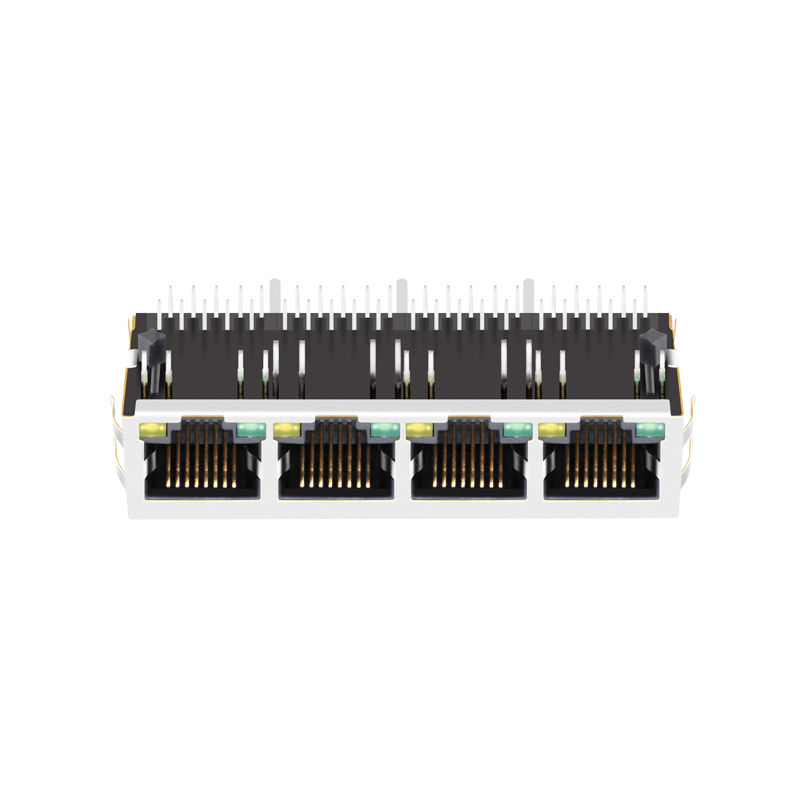

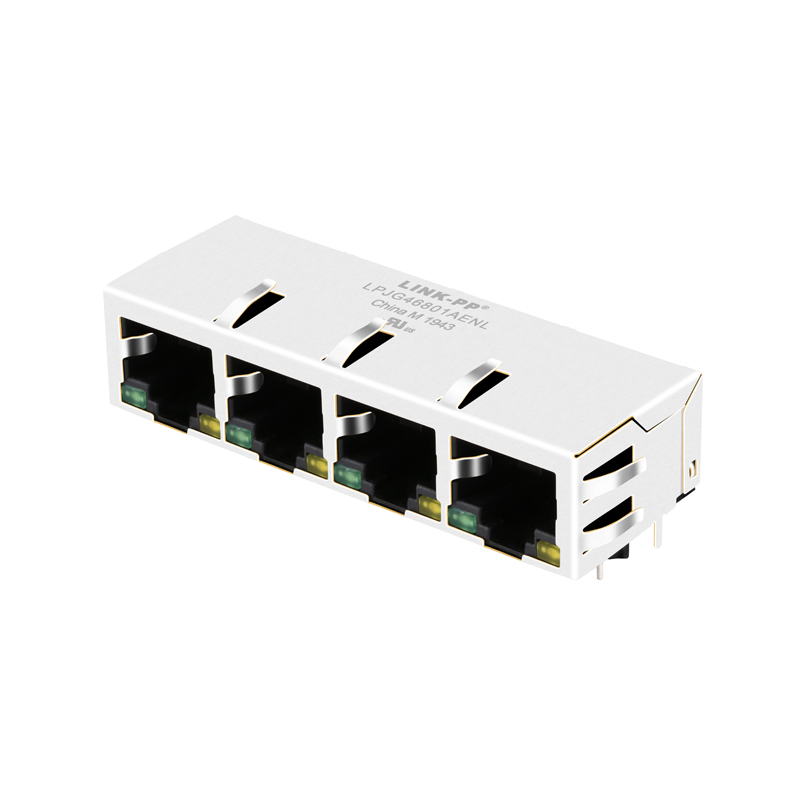

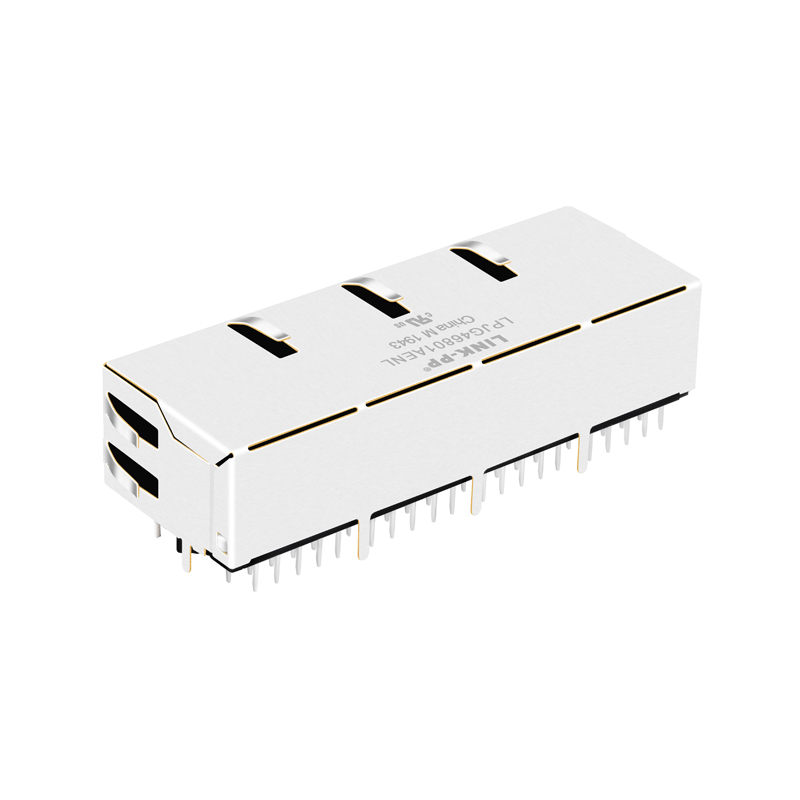

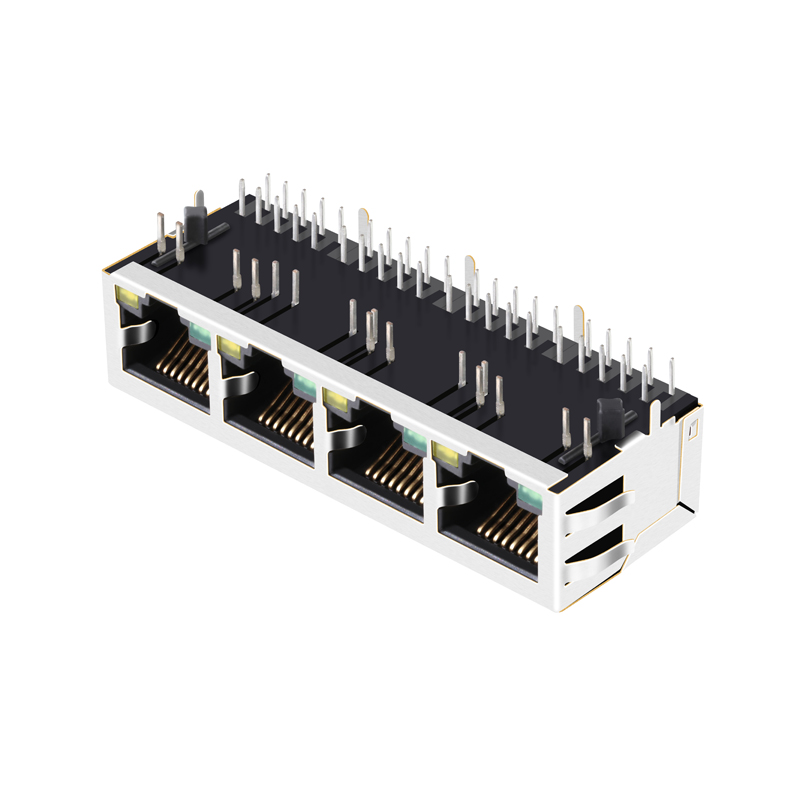

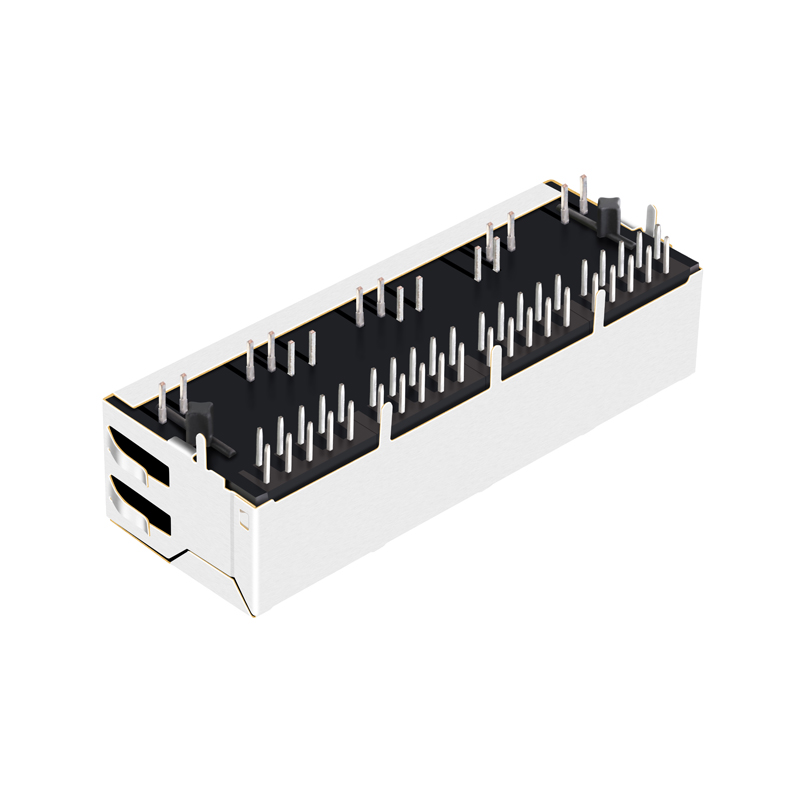

LPJG46801AENL 1000 Base-T 1X4 Port 10P8C Magnetic Ethernet RJ45 Connector
LPJG46801AENL 1000 Base-T 1X4 Port 10P8C Magnetic Ethernet RJ45 Connector
LPJG46801AENL 1000 Base-T 1X4 Port 10P8C Magnetic Ethernet RJ45 Connector
LPJG46801AENL 1000 Base-T 1X4 Port 10P8C Magnetic Ethernet RJ45 Connector
LPJG46801AENL 1000 Base-T 1X4 Port 10P8C Magnetic Ethernet RJ45 Connector
1 / 5
LPJG46801AENL 1000 Base-T 1X4 Port 10P8C Magnetic Ethernet RJ45 Connector
LPJG46801AENL 1000 Base-T 1X4 Port 10P8C Magnetic Ethernet RJ45 Connector
LPJG46801AENL 1000 Base-T 1X4 Port 10P8C Magnetic Ethernet RJ45 Connector
LPJG46801AENL 1000 Base-T 1X4 Port 10P8C Magnetic Ethernet RJ45 Connector
LPJG46801AENL 1000 Base-T 1X4 Port 10P8C Magnetic Ethernet RJ45 Connector

LPJG46801AENL 1000 Base-T 1X4 Port 10P8C Magnetic Ethernet RJ45 Connector

Send Inquiry

Product Description

📷 Product Description
RJ45 Connector Display
RJ45 Connector View
📋 Specification
Model NumberLPJG46801AENL
Part StatusActive
Connector TypeRJ45
Applications10/100/1000 Base-T, AutoMDIX
Mounting TypeThrough Hole
Orientation90° Angle (Right)
TerminationSolder
Contact Finish Thickness6.00µin (0.152µm)
LED ColorGreen - Yellow
Number of Cores per Jack8
ShieldingShielded, EMI Finger
Number of Ports1X4 Port
FeaturesBoard Guide
Tab DirectionDown
Contact FinishGold
Configuration RX/TXT,C
Turns Ratio RX/TX1CT:1CT
Operating Temperature0°C ~ 70°C
📦 Packing & Delivery
🚚
Standard Packaging Details:
20 pcs in 1 tray, 20 trays per carton.
Carton Dimensions: 37 x 30 x 30 cm
Weight: 10 KGS (400 pcs) per carton.
Packaging
⚙ Technical Capabilities
🌐
High Speed Base-T

Supports 100 / 1000 / 2.5G / 5G / 10G Base-T 1xN RJ45 Connectors.

🌡
Industrial Temp

Suitable for environments from –40 °C up to +85 °C.

🚀
Wide Compatibility

Compatible with EtherCAT, Profinet, and leading Ethernet ICs.

Feature Image 1
Feature Image 2
📍 Technical Drawings & Views
Drawing 1
Drawing 2
Drawing 3
Drawing 4
❓ FAQ
How is the quality of the RJ45 connectors guaranteed?
We follow a strict quality control process including a pre-production sample before mass production and a final inspection before every shipment to ensure performance and reliability.
What types of magnetic components can I purchase?
You can purchase a wide range of components including RJ45 Magnetic connectors, Lan transformers, Modular Jacks, and RJ11 Connectors.
What industrial certifications do these products hold?
The products are manufactured under strict standards and hold certifications such as ISO9001, RoHS, REACH, CE, and UL.
What are the primary applications for these connectors?
These components are widely used in networking and communication equipment such as Hubs, Routers, Switches, IP cameras, IoT applications, and Industrial Ethernet systems like EtherCAT.
What is the typical lead time and production capacity?
With an abundant productive capacity of up to 3000K units per month, we are able to deliver goods within short lead times to meet urgent project requirements.
What payment and delivery terms are available?
We accept various delivery terms including FOB, CFR, CIF, EXW, and DDP. Accepted payment types include T/T, L/C, Credit Card, and PayPal in multiple currencies such as USD, EUR, and GBP.
