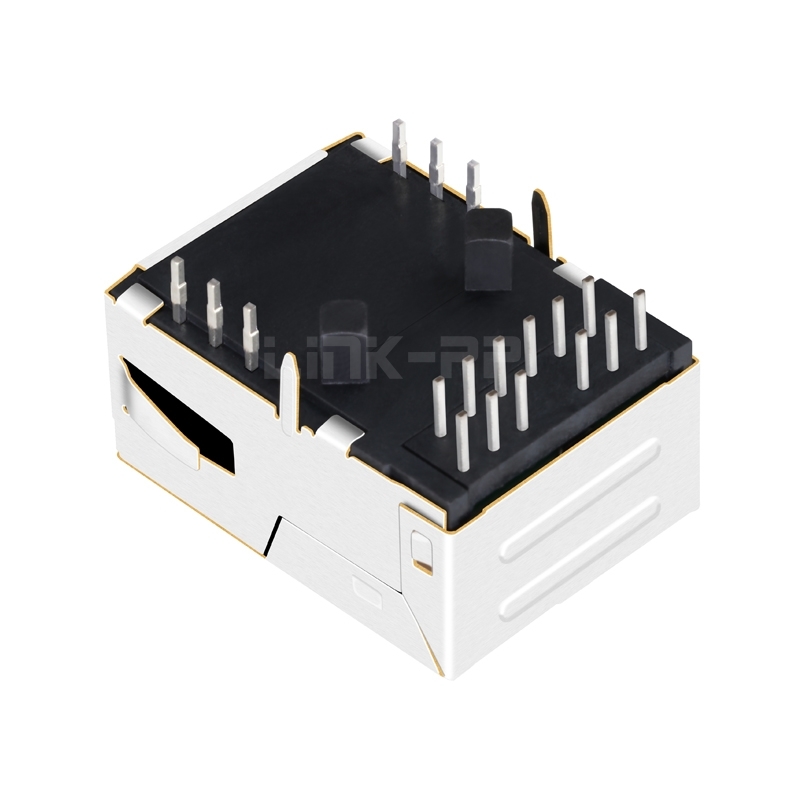

JT4-1108HL Tab Down Low Profile 1 Port Magnetic Jack 10G Base-t Female RJ45 Connector
JT4-1108HL Tab Down Low Profile 1 Port Magnetic Jack 10G Base-t Female RJ45 Connector
JT4-1108HL Tab Down Low Profile 1 Port Magnetic Jack 10G Base-t Female RJ45 Connector
JT4-1108HL Tab Down Low Profile 1 Port Magnetic Jack 10G Base-t Female RJ45 Connector
JT4-1108HL Tab Down Low Profile 1 Port Magnetic Jack 10G Base-t Female RJ45 Connector
1 / 5
JT4-1108HL Tab Down Low Profile 1 Port Magnetic Jack 10G Base-t Female RJ45 Connector
JT4-1108HL Tab Down Low Profile 1 Port Magnetic Jack 10G Base-t Female RJ45 Connector
JT4-1108HL Tab Down Low Profile 1 Port Magnetic Jack 10G Base-t Female RJ45 Connector
JT4-1108HL Tab Down Low Profile 1 Port Magnetic Jack 10G Base-t Female RJ45 Connector
JT4-1108HL Tab Down Low Profile 1 Port Magnetic Jack 10G Base-t Female RJ45 Connector

JT4-1108HL Tab Down Low Profile 1 Port Magnetic Jack 10G Base-t Female RJ45 Connector

Send Inquiry

Product Description

JT4-1108HL Tab Down Low Profile 1 Port Magnetic Jack 10G Base-t Female RJ45 Connector
Product Overview
Products Description
Item RJ45 Female Connector
Part Number LPJK9002A83NL
Part Status Active
Connector Type Jack
Number of Positions/Contacts 10p8c (RJ45, Ethernet)
Application-Lan Ethernet (Non-PoE)
Number of Ports 1x1 Port
Speed 10G Base-T
Latch Down
Cores per Port 8
Orientation 90° Angle (Right)
PCB Mount Angle SIDE ENTRY
Shield EMI Tabs With
LED Option Green/Yellow
PCB FR4
PCB Retaining Post T POST
Temperature 0°C TO 70°C
Bst Circuit Yes
AutomDX YES
Contact Mating Area Plating GOLD 6u"/15u"/30u"
Turns Ratio RX/TX 1CT:1CT
Configuration RX/TX T,C
High-Speed Connectivity
Designed for high performance, supporting speeds up to 10G Base-T networks smoothly.
Low Profile Design
Ideal for space-constrained applications with a tab down, low-profile configuration.
EMI Shielding
Equipped with EMI tabs to ensure minimal interference and steady signal transmission.

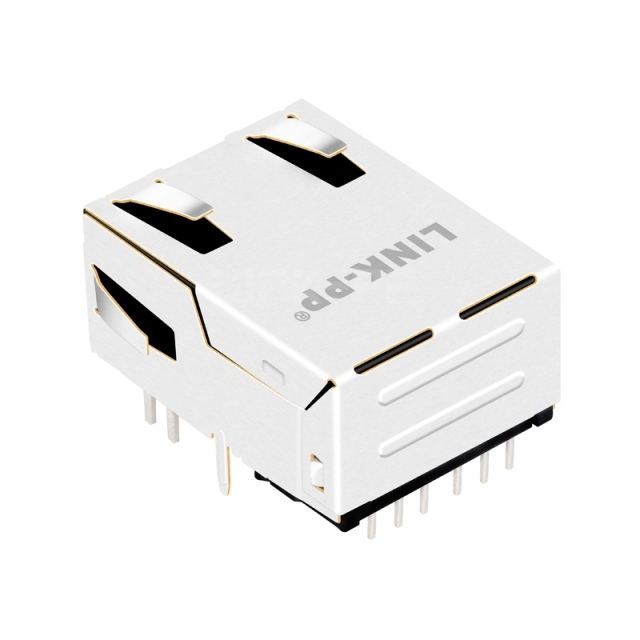

Product Detail Front

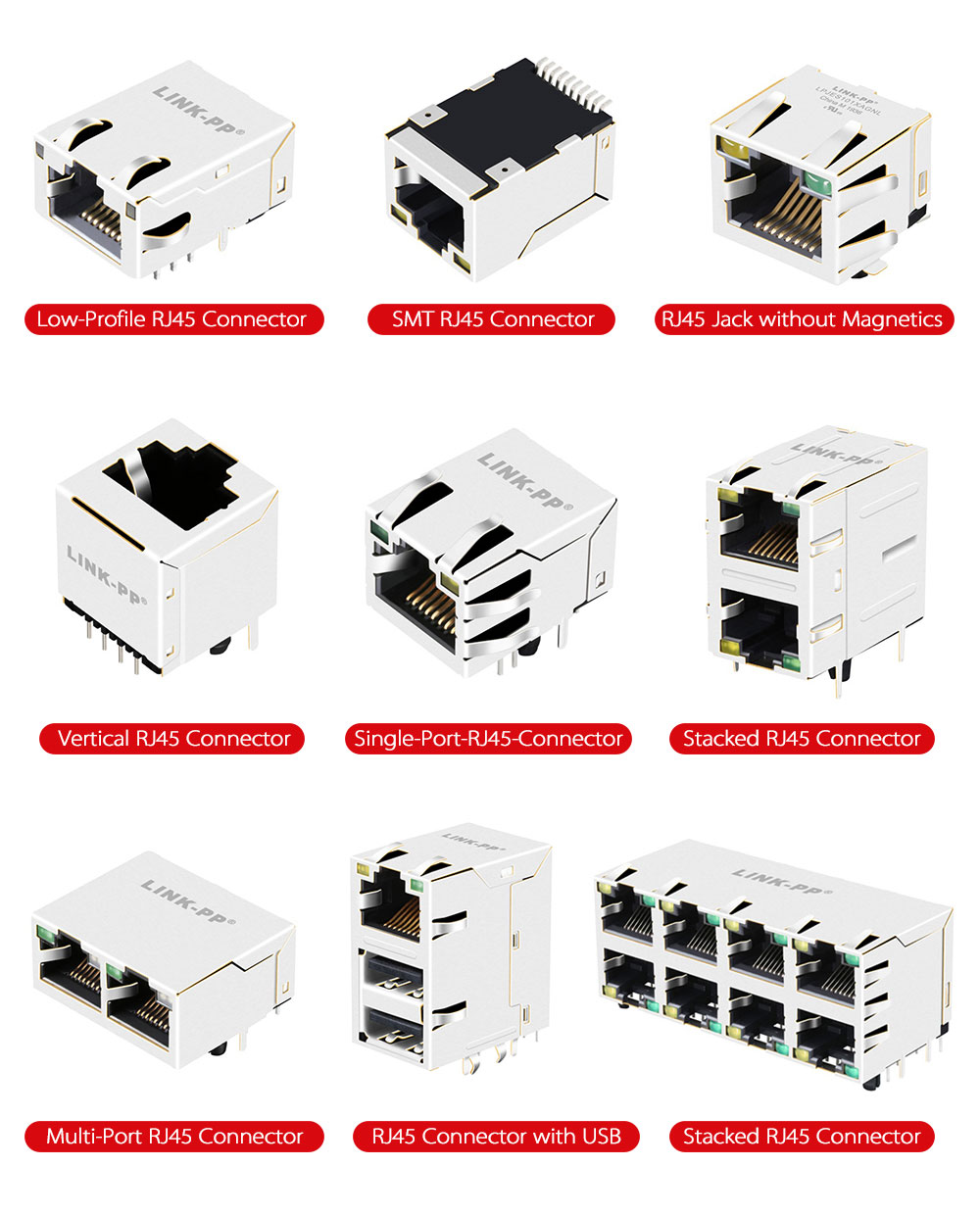

Product Categories Grid
Specification Outline
Inner Diagram
Quality Standard Verification
Packaging Scheme
Product Dimensions
Product Application Area
FAQ
1. Are you a factory or trading company?
We are a specialized manufacturer of magnetic telecom and networking components, including RJ45 connectors, LAN transformers, RJ11 connectors, and SFP modules.
2. Can I get a sample before mass production?
Yes, we can offer free samples to test quality, but shipping fees are to be covered by the buyer.
3. What is your delivery time?
Ready to ship items are dispatched immediately from stock. For mass production, the standard delivery time is 15-30 days.
4. What after-service can you offer?
We provide a one-year guarantee period along with 24-hour online technical support.
5. Can you accept OEM/ODM orders?
Yes, custom OEM and ODM orders are welcome. Please contact us to discuss the details.
6. What is your advantage?
With 19 years of dedicated production experience, we have established long-term partnerships with leading global technology brands.
