China Supplier J1N-0003NL Female Multiple Port RJ45 Connectors

Product Description

RJ45 Connectors & Lan Transformers

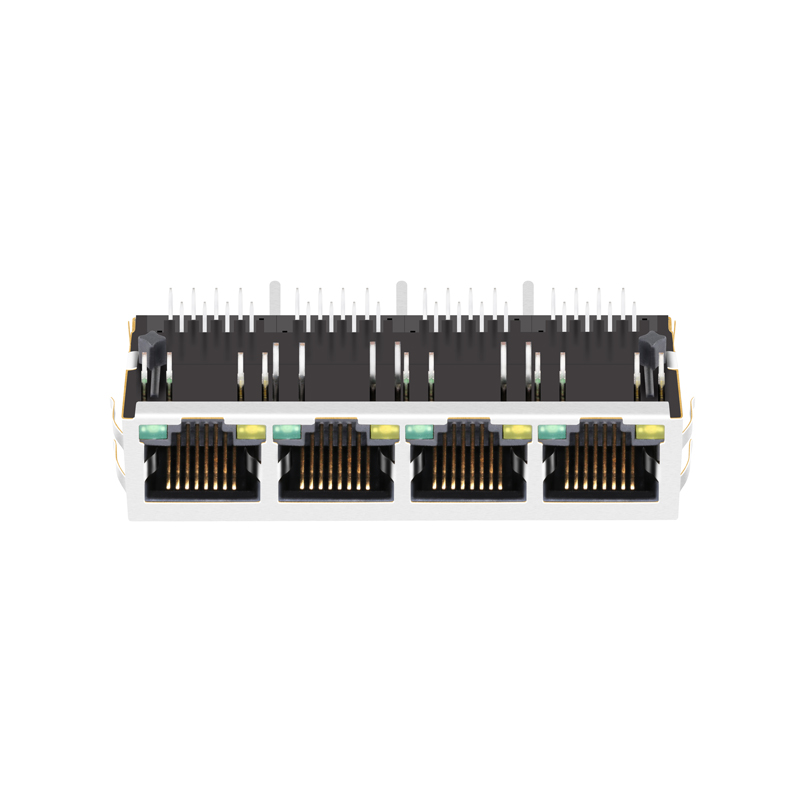

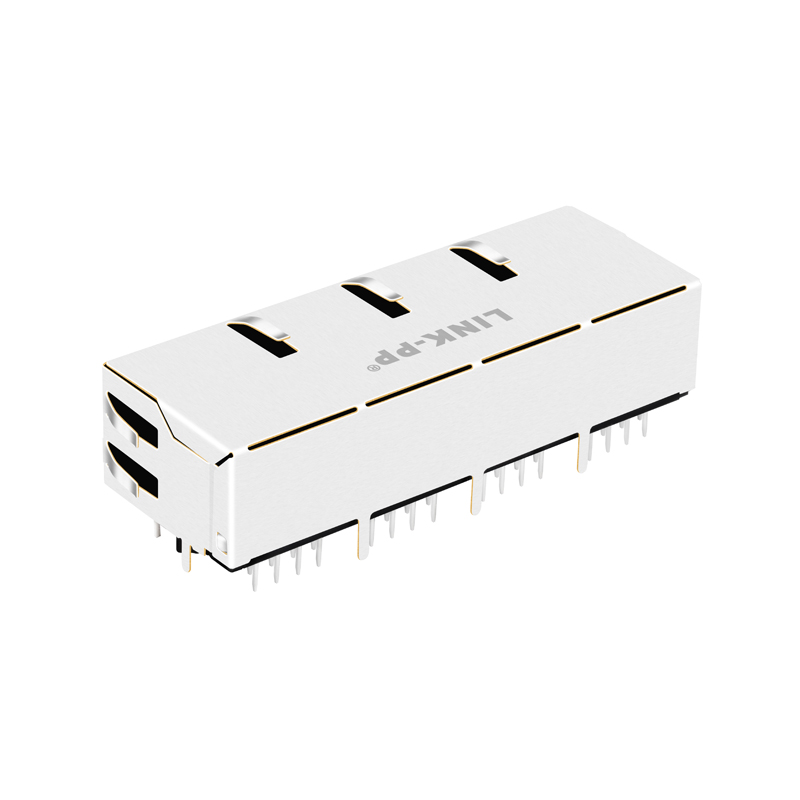

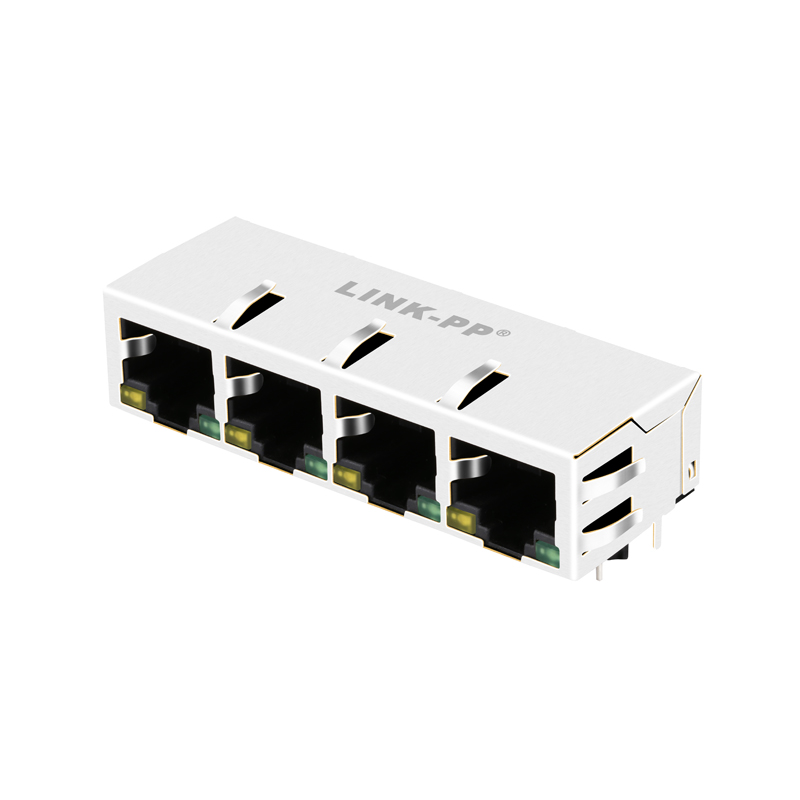

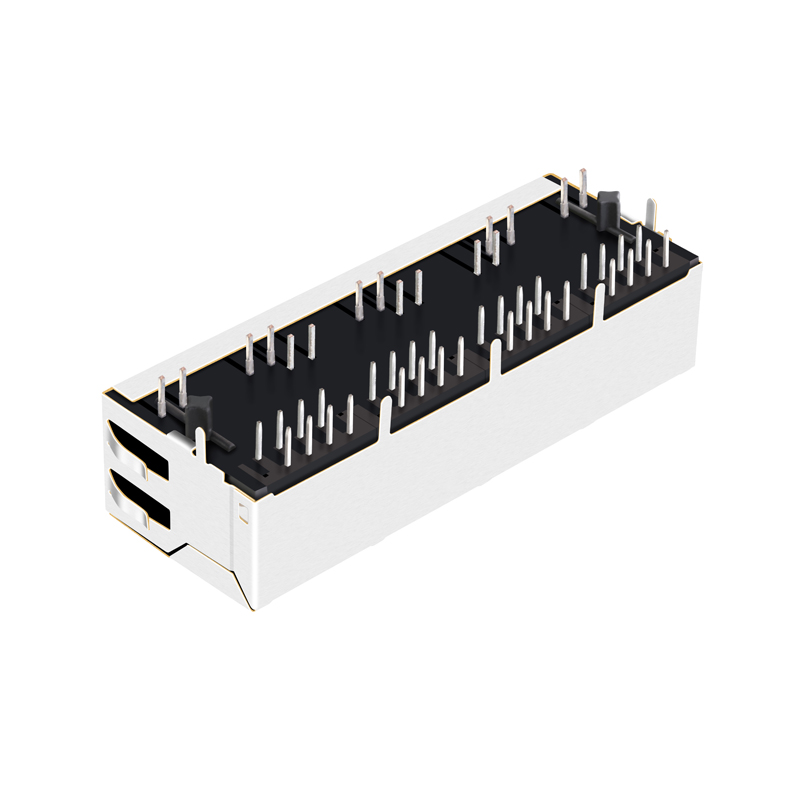

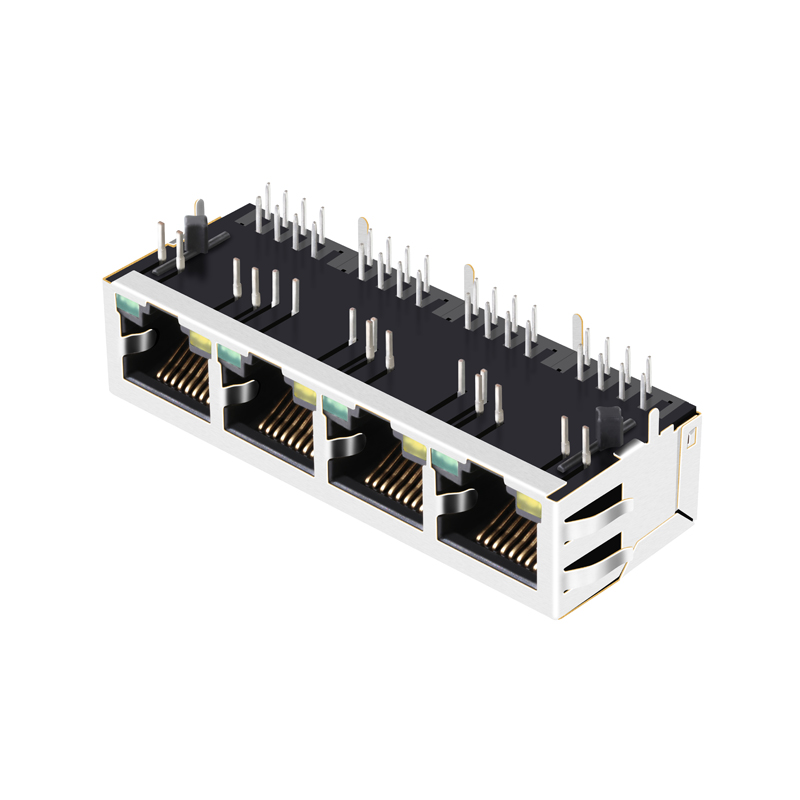

China Supplier J1N-0003NL Female Multiple Port RJ45 Connectors
Products Description
Item RJ45 Female Connector
Compatible With J1N-0003NL
Part Status Active
Connector Type Jack
Number of Positions/Contacts 8p8c (RJ45, Ethernet)
Application-Lan Ethernet(NoN PoE)
Number of Ports 1x1 Port
Speed 10/100/1000 Base-T
Latch Down/Up
Cores per Port 4
Orientation 90° Angle (Right)
PCB Mount Angle SIDE ENTRY
Shield EMI Tabs Without/With
LED Option Green/Yellow
PCB FR4
PCB Retaining Post T POST
Temperature 0℃ TO 70℃ / -40℃ TO 85℃
Bst Circuit Yes
AutomDX YES
Contact Mating Area Plating GOLD 6u"/15u"/30u"
Turns Ratio RX/TX 1CT:1CT
Configuration RX/TX T,C
Female Multiple Port RJ45 Connector Detail
Product Category Details
RJ45 Connector Category Matrix
Connector Dimensions Info
Technical Layout Drawing
Schematic Parameters
PCB Footprint Recommendation
Quality Assurance Equipment
Advanced Testing System
Company Profile
Established in 1997, our company is a professional designer and manufacturer in magnetic telecom and networking components. With an extensive line of state-of-the-art catalog products as well as custom capabilities.

We are a global supplier of magnetic telecom and networking components to OEMs, contract manufacturers, and CEMs, supplying more than 10,000+ customers across 200 countries. Building multi-warehouse systems in key areas and continuously increasing inventory, we are committed to becoming the world's leading Ethernet RJ45 connector and LAN transformer provider.
Production Workshop
Automatic Assembling Process
Precision Quality Control
FAQ
1. Are you a factory or a trading company?
We are a specialized manufacturer of magnetic telecom and networking components, including RJ45 connectors, LAN transformers, RJ11 connectors, and SFP modules.
2. Can I get a sample before mass production?
Yes, we can offer you free samples to test the quality, but shipping fees should be covered by your side.
3. What is your delivery time?
Ready to ship for stock items and 15-30 days for mass production orders.
4. What after-service can you offer?
We offer a one-year guarantee period along with 24-hour online technical support.
5. Can you accept OEM/ODM orders?
Yes, please contact us with details so that we can have a customized discussion.
6. What is your advantage?
We have 19 years of professional production experience and have partnered with top global enterprises for many years.
