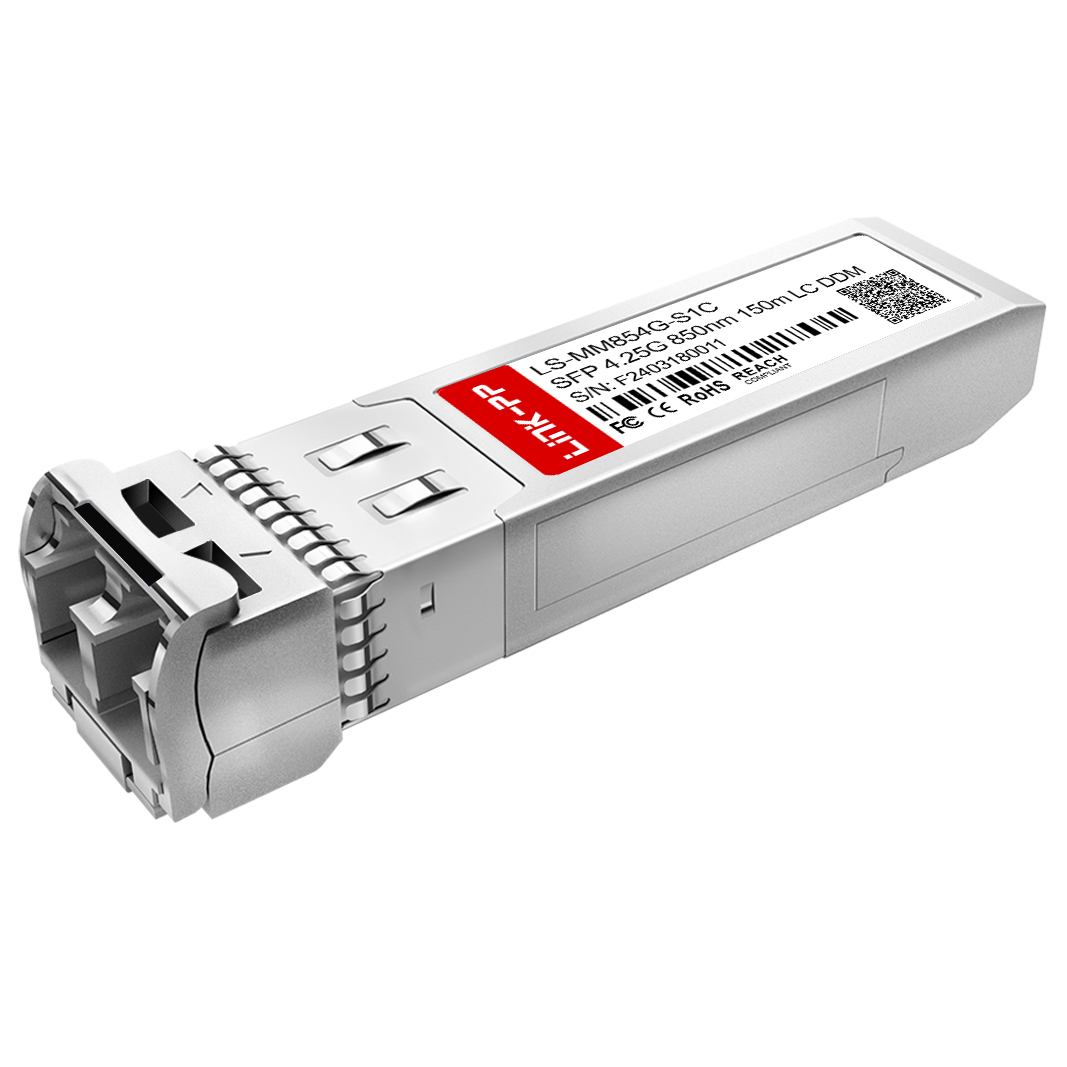

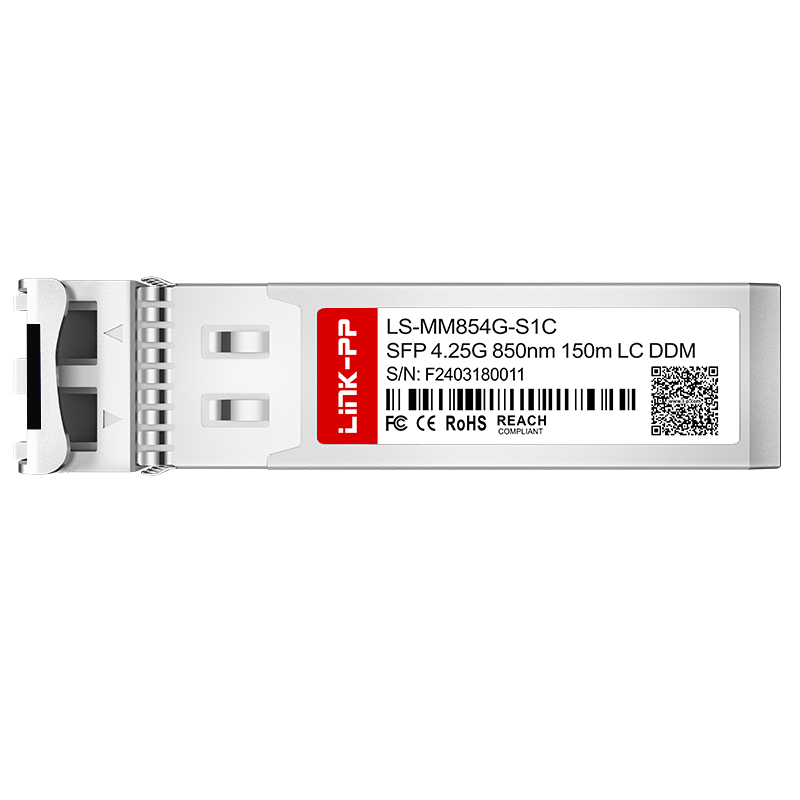

Multi Mode SFP 4G Fibre Channel 850nm 150m MMF LC Optical Transceiver Module

1 / 5

Multi Mode SFP 4G Fibre Channel 850nm 150m MMF LC Optical Transceiver Module

Send Inquiry

Product Description

Part No.	LS-MM854G-S1C
Form Factor	SFP
Max Data Rate	4.25Gbps
Wavelength	850nm
Max Cable Distance	150m
Connector	Duplex LC
Media	MMF
Transmitter Type	VCSEL
Receiver Type	PIN
TX Power	-9 ~ 0dBm
Receiver Sensitivity	< -20dBm
EMC (Electro Magnetic Compatibility)	Supported
DDM/DOM	Supported
Protocols	MSA Compliant
Temperature Range	0 to 70°C / -40 to 85°C
Warranty	5 Years
Sample	Available

VIEW OUR SOLUTIONS

We draw on over 10 years of experience in chips and modules to integrate fast speeds, small size, power savings, and high performance in every module.

A full series of optical modules is provided for fixed access, wireless access, carrier Ethernet, wavelength division multiplexing (WDM), and data communication networks.

Support Full Range Of 4.25G SFP

Part Number	Data Rate	Wavelength	Distance	Media	DDM
LS-MM854G-S1C	4.25Gbps	850nm	150m	Multi-mode	Yes
LS-MM852G-S3C	4.25Gbps	850nm	300m	Multi-mode	Yes
LS-MM854G-S5C	4.25Gbps	850nm	500m	Multi-mode	Yes
LS-SM314G-02C	4.25Gbps	1310nm	2km	Single Mode	Yes
LS-SM314G-04C	4.25Gbps	1310nm	4km	Single Mode	Yes
LS-SM314G-10C	4.25Gbps	1310nm	10km	Single Mode	Yes
LS-SM314G-40C	4.25Gbps	1310nm	40km	Single Mode	Yes
LS-SM554G-40C	4.25Gbps	1550nm	40km	Single Mode	Yes

Application Scenarios

Optical Transport Networks

End-to-end DWDM devices can be provided with almost all optical devices - from active modules to optical passive devices, including optical amplifier (EDFA & RFA), Mux & Demux, OPM, ROADM, MCS, OLP and OTDR etc.

Cloud and Enterprise

To meet the demand of mass data transmission in data centers, a series of high-speed optical modules has been developed with product rates ranging from 10G to 800G, providing high-quality optical interconnection solutions for data centers.

Wireless

Providing high reliability and performance products with mature and efficient lasers and mainstream chip solutions to customers all around the world. The solution includes Dark Fiber, WDM, Radio over Fiber, High Speed, Mid-haul and Back-haul which could meet all the needs of various scenarios in 4G/5G systems.

FTTx

Aimed at global communication network constructors, providing FTTx optical fiber access total solutions covered from all-optical or optical copper combined access solutions and products.

Subsystems

To ensure the normal operation of the communication line, providing the optical cable O&M solution which integrates an optical line protection system (OLP) and an optical line monitoring system (OLM).
