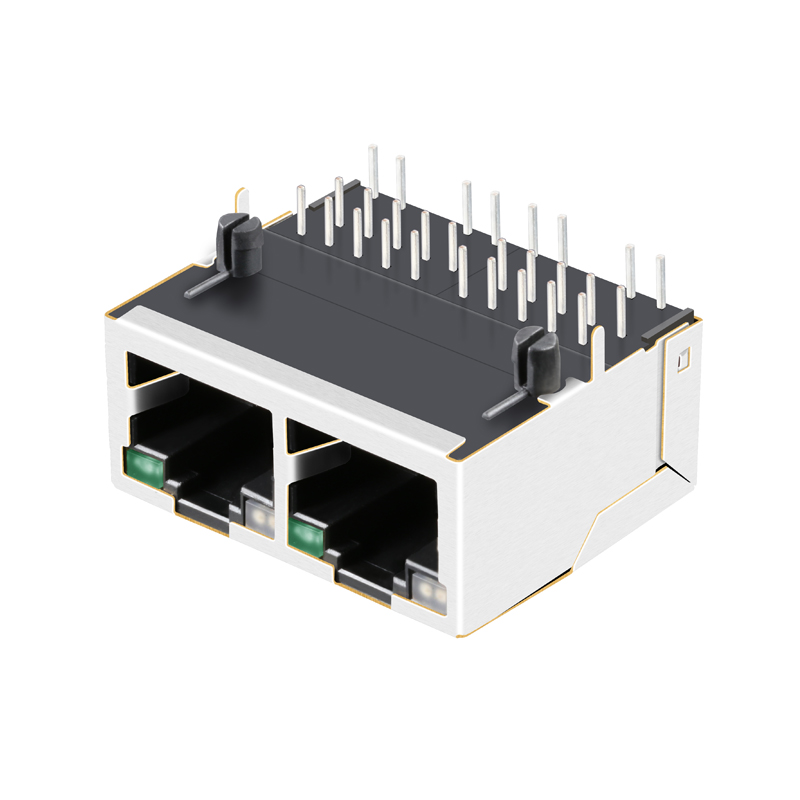

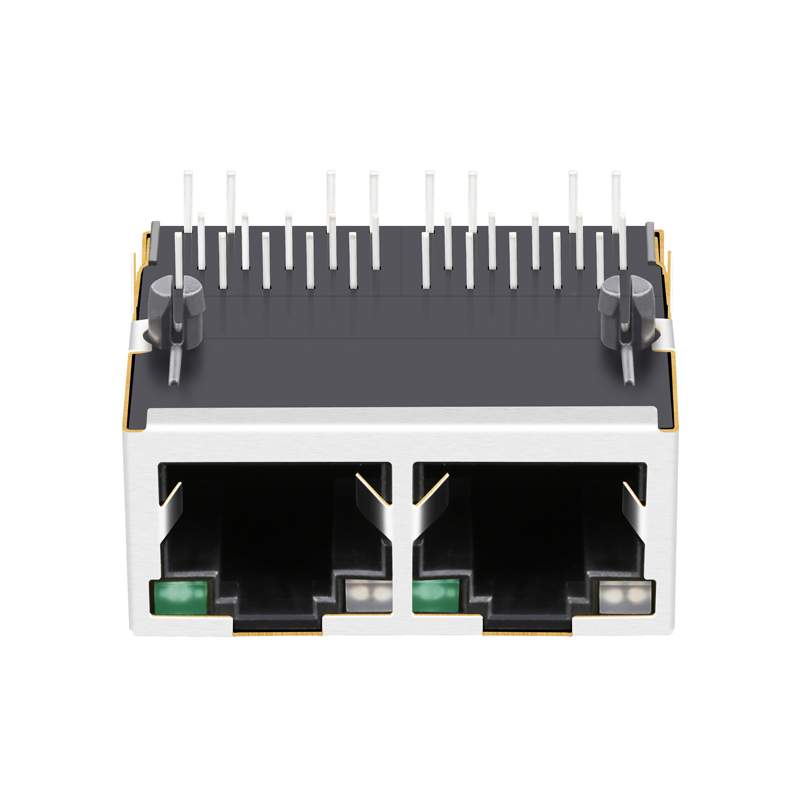

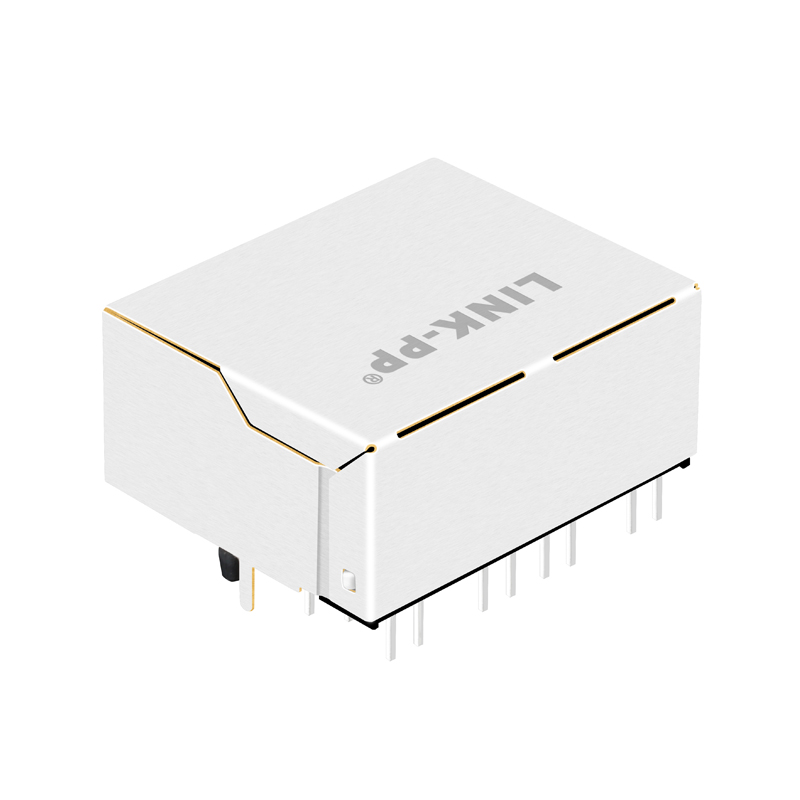

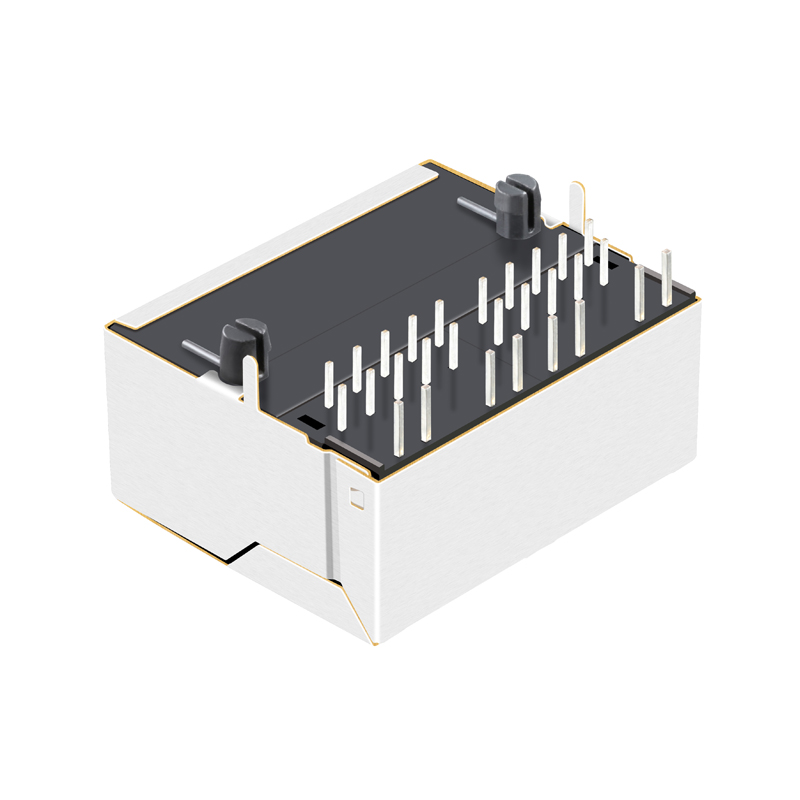

10/100 BASE-T Ethernet Interface RJ45 Female Connector Tab up 1X2 Harmonica Jack 5-6610197-1
10/100 BASE-T Ethernet Interface RJ45 Female Connector Tab up 1X2 Harmonica Jack 5-6610197-1
10/100 BASE-T Ethernet Interface RJ45 Female Connector Tab up 1X2 Harmonica Jack 5-6610197-1
10/100 BASE-T Ethernet Interface RJ45 Female Connector Tab up 1X2 Harmonica Jack 5-6610197-1
10/100 BASE-T Ethernet Interface RJ45 Female Connector Tab up 1X2 Harmonica Jack 5-6610197-1
1 / 5
10/100 BASE-T Ethernet Interface RJ45 Female Connector Tab up 1X2 Harmonica Jack 5-6610197-1
10/100 BASE-T Ethernet Interface RJ45 Female Connector Tab up 1X2 Harmonica Jack 5-6610197-1
10/100 BASE-T Ethernet Interface RJ45 Female Connector Tab up 1X2 Harmonica Jack 5-6610197-1
10/100 BASE-T Ethernet Interface RJ45 Female Connector Tab up 1X2 Harmonica Jack 5-6610197-1
10/100 BASE-T Ethernet Interface RJ45 Female Connector Tab up 1X2 Harmonica Jack 5-6610197-1

10/100 BASE-T Ethernet Interface RJ45 Female Connector Tab up 1X2 Harmonica Jack 5-6610197-1

Send Inquiry

Product Description

10/100 BASE-T Ethernet Interface RJ45 Female Connector Tab up 1X2 Harmonica Jack 5-6610197-1

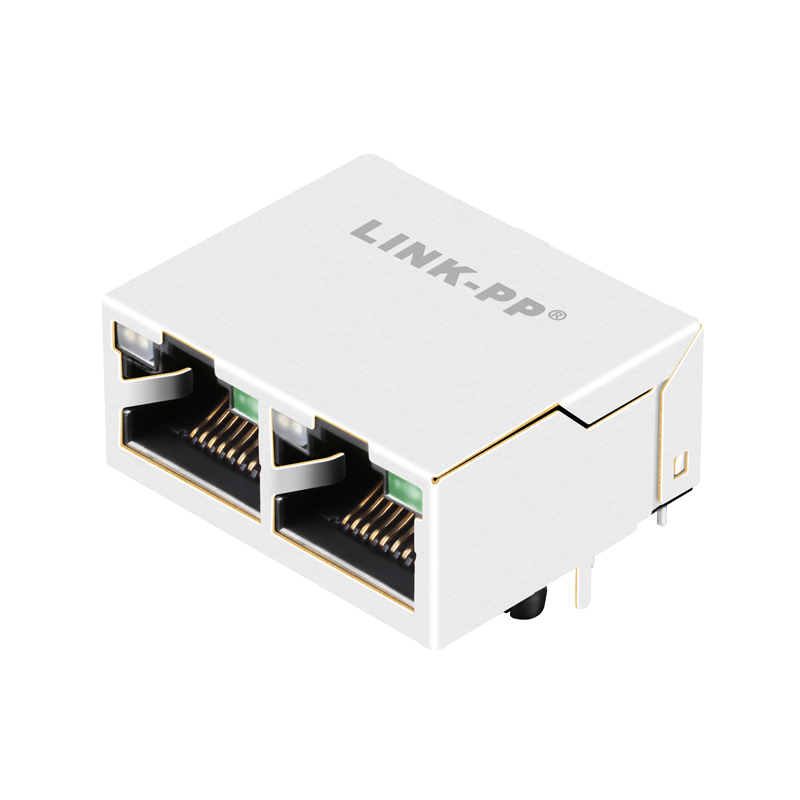

Separator RJ45 Female Connector 1X2 Separator
Part Number5-6610197-1
AutomDXYES
Bst CircuitYES
Configuration RXT,C
Configuration TXT,C
Contact Mating Area PlatingGOLD 6u"/15u"/30u"/50u"
Cores Per Port4
DiodesNO DIDES41
LED OptionGREEN/YELLOW
LatchUP
Number of Ports1X2
PCBFR4
PCB Mount AngleSIDE ENTRY
PCB Retaining PostT POST
Pin TypeTHT SOLDER
RoHS CompliantYES-RoHS-5 WITH LEAD IN SOLDER EXEMPTION
SearchYES
Shield EMI TabsWITH OR WITHOUT
Speed10/100 BASE-T
Temperature0 TO 70°C/-40 TO 85°C
Turns Ratio RX1CT:1
Turns Ratio TX1CT:1
Why Choose Us

World’s Leader Supplier Of Integrated RJ45 Connector And Discrete Magnetic Transformers

🛡️ Professional Certification

ISO 9001:2008
UL Certification
Reach Certification
RoHS Compliance
Active Environmental Policy

✅ 100% Guarantee Quality

Manufactured Under Strict Controls.
100% Tested (Not Just Batch Tested)
Successful Customer base including Global Tech Leaders
Quality Guarantee: 6 Years

💰 Competitive Price And Service

More Competitive Price options
Delivery Time: 2-3 Weeks After Orders
Free Samples Are Available
Provide New Design For Customer Requirements
Technical Drawing 1
Technical Drawing 2
Schematic Diagram PCB Layout

⭐ Preferred Supplier of Major Industry Leaders

Our logo is featured on prominent development boards and used by leading electronics corporations globally.

Application Image 1
Application Image 2
Frequently Asked Questions
What is the data transfer speed of this RJ45 connector?
This connector supports 10/100 BASE-T Ethernet speeds, suitable for standard industrial and networking applications.
What is the port configuration of the 5-6610197-1?
It is a 1X2 Harmonica Jack, meaning it features two RJ45 ports in a single row configuration with a "Tab Up" latch orientation.
Is this product RoHS compliant?
Yes, it is RoHS-5 compliant with lead in solder exemption, meeting standard environmental safety requirements.
What is the operating temperature range?
The connector is designed to operate reliably between 0 to 70°C, with extended options available for -40 to 85°C.
Are samples available for testing?
Yes, free samples can be provided to meet customer design and evaluation requirements before bulk ordering.
What is the typical lead time for orders?
Standard delivery time is approximately 2-3 weeks after the order is confirmed.
