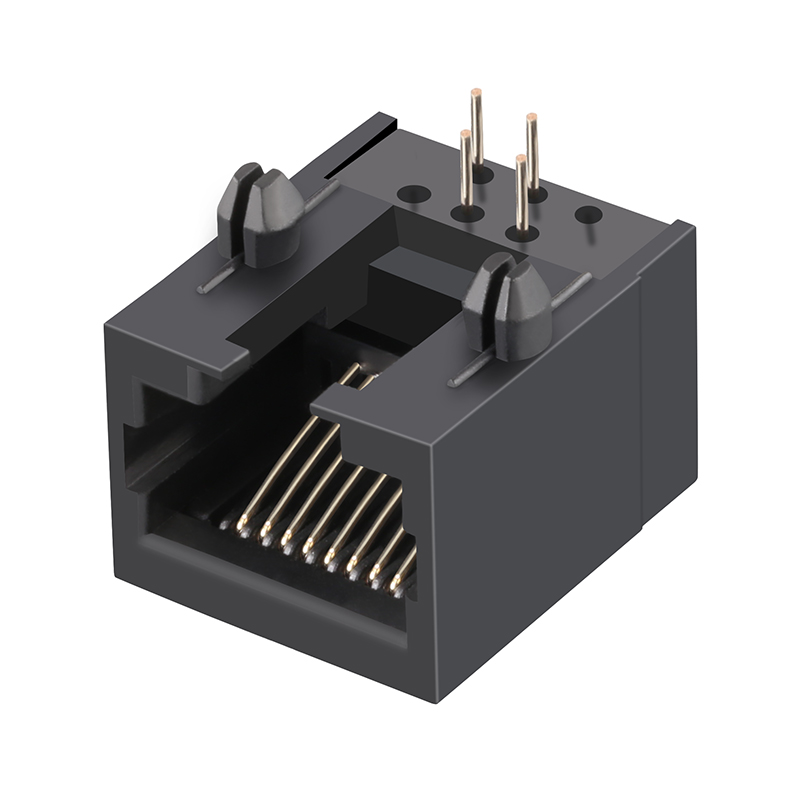

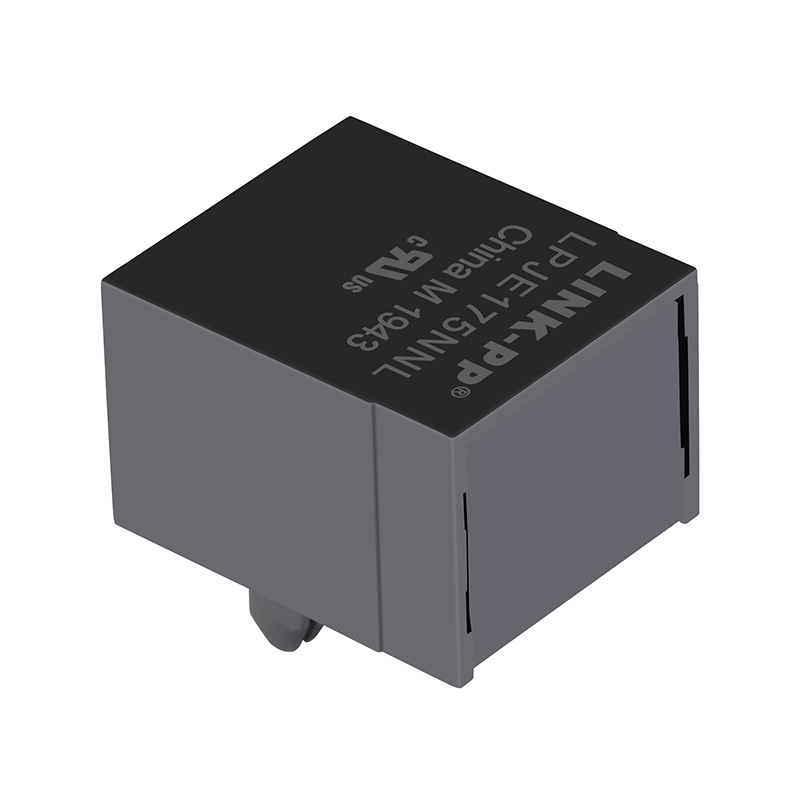

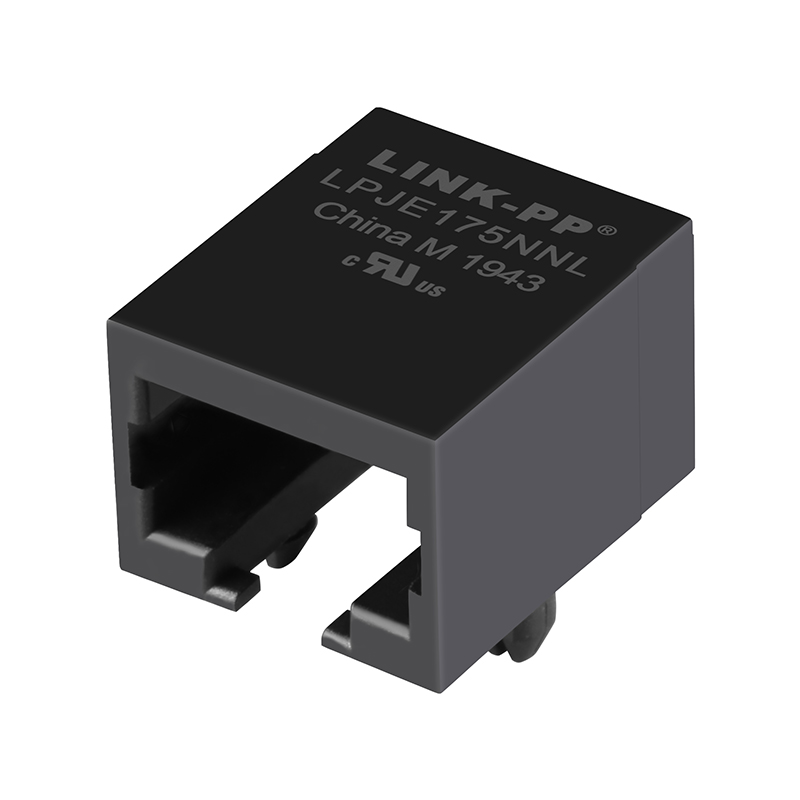

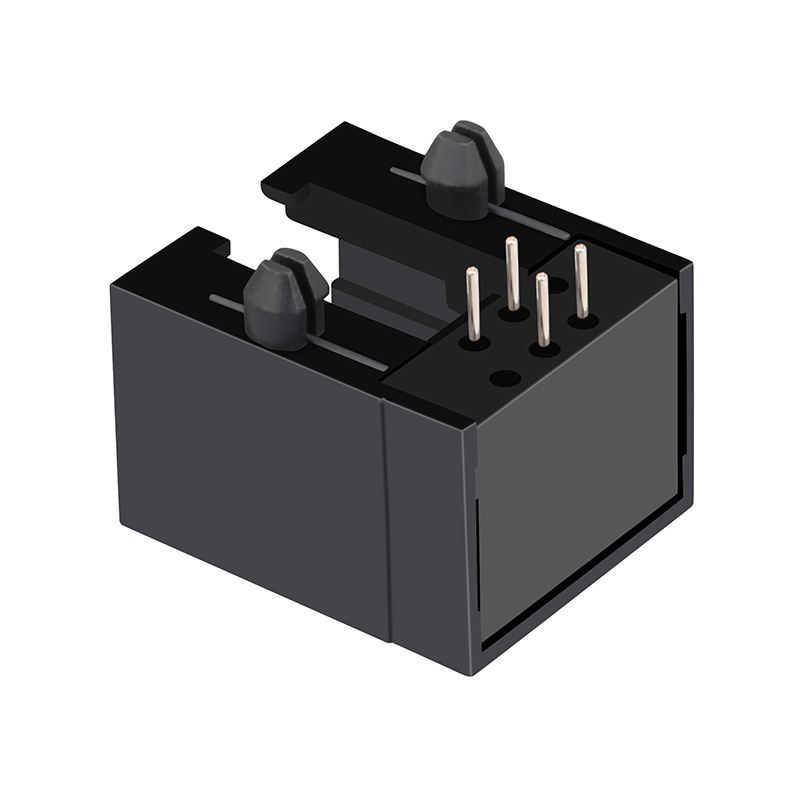

Tab Down Without Magnetics 1x1 Port 4P4C RJ11 Modular Jack

Product Description

Modular Jack Categories
Tab Down Without Magnetics 1x1 Port 4P4C RJ11 Modular Jack
Products Description
Item RJ11 Female Connector
Part Number LPJE175NNL
Part Status Active
Connector Type Jack
Number of Positions/Contacts 4p4c (RJ11, Ethernet)
Application-Lan Ethernet (Non-PoE)
Number of Ports 1x1 Port
Latch Down
Orientation 90° Angle (Right)
PCB Mount Angle SIDE ENTRY
Shield EMI Tabs Without
LED Option Without
PCB FR4
PCB Retaining Post T POST
Temperature -40°C TO 85°C
Bst Circuit Yes
AutomDX YES
Contact Mating Area Plating GOLD 6u"/15u"/30u"
Turns Ratio RX/TX 1CT:1CT
Configuration RX/TX T,C

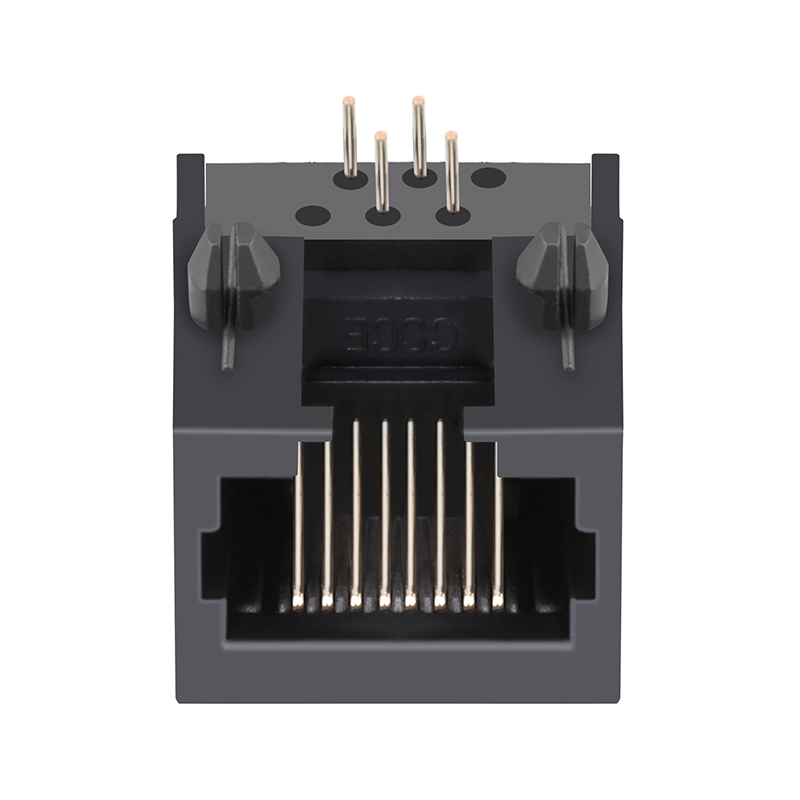

Modular Jack Front View
Modular Jack Side View
Technical Specifications Drawing
Explore More Associated Products Below
Product Options Array
Connector Cross Section Details
Product Testing Diagram
Product Layout Diagram
Quality Compliance Certificate
Manufacturing Certification
Advanced Testing Lab
Automated Testing Equipment
Company Profile
Established in 1997, we are a professional designer and manufacturer of magnetic telecom and networking components. With an extensive line of state-of-the-art catalog products as well as custom capabilities, we operate as a global supplier of magnetic telecom and networking components for OEMs, contract manufacturers, and CEMs, serving more than 10,000+ customers across over 200 countries. By building multi-warehouse systems in key areas and continuously increasing inventory, we are committed to providing leading Ethernet RJ45 connectors and LAN transformer solutions worldwide.
Corporate Headquarters and Factory
Production Workshop
Automatic Assembly Line
Frequently Asked Questions
1. Are you a factory or a trading company?
We are a specialized manufacturer of magnetic telecom and networking components, including RJ45 connectors, LAN transformers, RJ11 connectors, and SFP modules.
2. Can I get a sample before mass production?
Yes, we can offer you free samples to test quality, though the shipping fee should be covered by your side.
3. What is your delivery time?
We have ready-to-ship inventory in stock for immediate dispatch, while standard mass production orders take 15 to 30 days.
4. What after-sales service do you offer?
We offer a one-year guarantee period along with 24-hour online technical support to resolve any queries.
5. Can you accept OEM/ODM orders?
Yes, we support complete custom OEM/ODM configurations. Please send us your specifications for detailed discussions.
6. What is your main advantage?
We bring over 19 years of professional production experience, backed by stable quality standards and partnerships with major global technology enterprises.
