| Parameter | Specification Details |
|---|---|

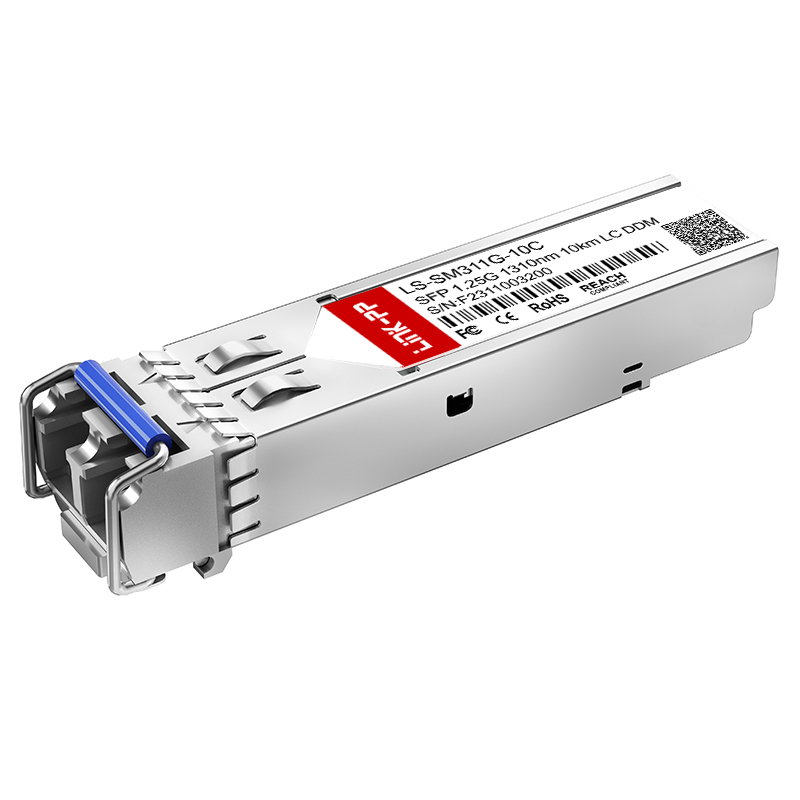

| Item | 1000BASE SFP |
| Compatible | H3C SFP-GE-LX-SM1310 |
| Part Status | Active |
| Form Factor | SFP |
| Max Data Rate | 1.25Gbps |
| Wavelength | 1310nm |
| Max Cable Distance | 10Km |
| Media | SMF |
| Connector | Duplex LC |
| Optical Component | FP/PIN |
| TX Power | -9.5~-3dBm |
| Receiver Sensitivity | <-20dBm |
| Receiver Overload | -3dBm |
| Power Consumption | ≤1W |
| Extinction Ratio | >9dB |
| DDM/DOM | Supported |
| Commercial Temperature Range | 0 to 70°C (32 to 158°F) |
| Protocols | IEEE 802.3ah-2004, IEEE 802.3z, SFF-8472, SFP MSA (INF-8074i) Compliant |
| Warranty | 5 Years |
| Sample | Available |
We are a specialized manufacturer of magnetic telecom and networking components, certified by ISO9001:2000, ROHS, REACH, CE and UL. We own advanced manufacturing facilities and test equipment imported from abroad.
Our company was established in 1997, and we currently have around 2000 staff members. With an abundant production capacity of 3000K per month, we are able to deliver products within a short time.
Moreover, we provide a full series of optical modules for fixed access, wireless access, carrier Ethernet, wavelength division multiplexing (WDM), and data communication networks. The range also offers high-speed optical interconnection solutions for cloud computing and ultra-broadband networks. Using the latest optoelectronics technologies, we develop, manufacture, and distribute products globally.
