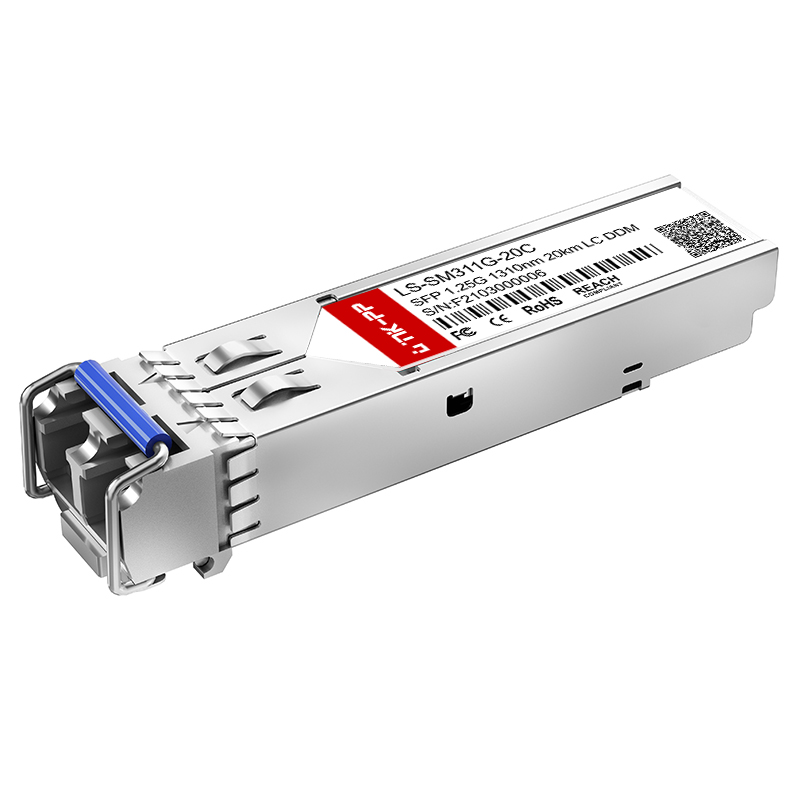

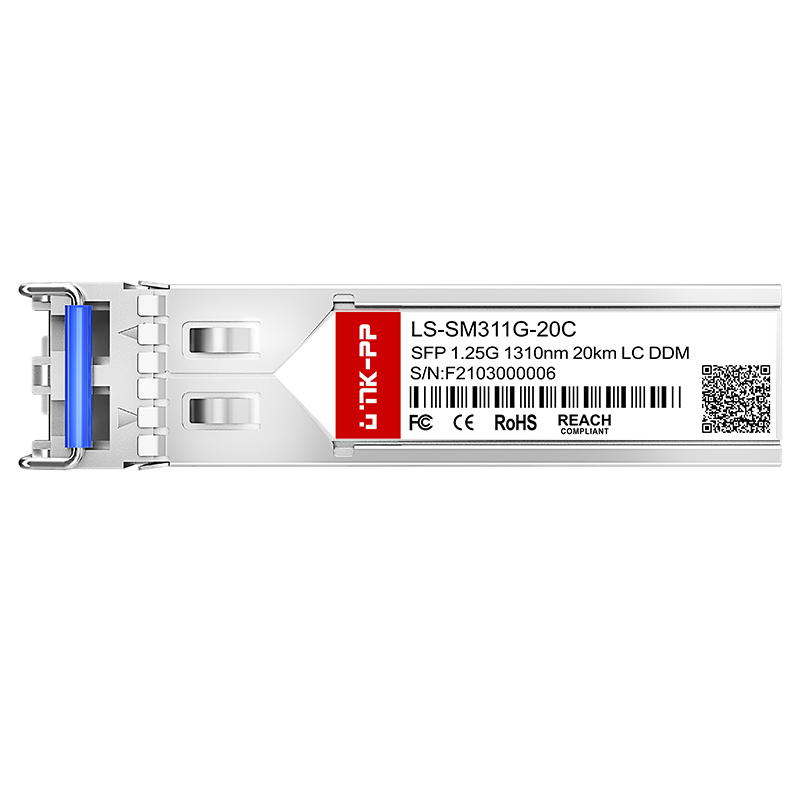

1000BASE-LX/LH SFP Transceiver 1310nm 20km Duplex LC SMF Optical Module

Product Description

1000BASE-LX/LH SFP Transceiver 1310nm 20km Duplex LC SMF Optical Module
Products Description
Item Fiber Optical Modules
Part Status Active
Form Factor SFP
Max Data Rate 1000Mbps
Wavelength 1310nm
Max Cable Distance 20km
Fiber Type SMF
Media 1x1 Port
Connector Duplex LC
Power Consumption <1W
DDM/DOM Supported
Commercial Temperature Range 0 to 70°C (32 to 158°F)
EMC (Electro Magnetic Compatibility) Supported
MTBF 1,000,000 Hours
Protocols IEEE Std 802.3 and 802.3ab, SFP MSA Compliant
Warranty 5 Years
Sample Available
Transceiver Specifications Map
View Our Solution
We draw on over 10 years of experience in chips and modules to integrate fast speeds, small size, power savings, and high performance in every module. We provide a full series of optical modules for fixed access, wireless access, carrier Ethernet, wavelength division multiplexing (WDM), and data communication networks.
Module Integration Map
Optical Transport Networks
We can provide end-to-end DWDM devices with almost all optical devices - from active modules to optical passive devices, including optical amplifiers (EDFA & RFA), Mux & Demux, OPM, ROADM, MCS, OLP, and OTDR, etc.
Optical Transport Networks
Cloud and Enterprise
To meet the demand of mass data transmission in data centers, we have developed a series of high-speed optical modules with product rates ranging from 10G to 800G, providing high-quality optical interconnection solutions for data centers.
Cloud and Enterprise
Wireless
We provide high reliability and performance products with mature and efficient lasers and mainstream chip solutions to our customers all around the world. The solution includes Dark Fiber, WDM, Radio over Fiber, High Speed, Mid-haul, and Back-haul, which meet all the needs of various scenarios in 4G/5G systems.
Wireless Solution
FTTx
Aimed at global communication network constructors, we provide FTTx optical fiber access total solutions covered from all-optical or optical copper combined access solutions and products.
FTTx Solution
Subsystems
To ensure the normal operation of the communication line, we provide the optical cable O&M solution which integrates an optical line protection system (OLP) and an optical line monitoring system (OLM).
Subsystems
Solution Flow Map
Related Products SFP Cage
Product Spec Page 1 Product Spec Page 2
Related SFP Cage 1 Related SFP Cage 2
Why Choose Us
Strength Highlight 1 Strength Highlight 2 Strength Highlight 3 Strength Highlight 4
Company Profile
We are a specialized manufacturer of magnetic telecom and networking components, certificated by ISO9001:2000, RoHS, REACH, CE and UL, and own advanced manufacturing facilities and test equipment imported from abroad.

Established in 1997, we have around 2000 staff at present. With an abundant productive capacity of 3000K per month, we are able to deliver products within a short time.

Moreover, we provide a full series of optical modules for fixed access, wireless access, carrier Ethernet, wavelength division multiplexing (WDM), and data communication networks. The range also offers high-speed optical interconnection solutions for cloud computing and ultra-broadband networks. With the latest optoelectronics technologies, we develop, manufacture, and sell products around the world.
Manufacturing Plant 1 Manufacturing Plant 2
Frequently Asked Questions
1. Are you a factory or trading company?
We are a specialized manufacturer of magnetic telecom and networking components, such as RJ45 connectors, LAN transformers, RJ11 connectors, and SFP modules, etc.
2. Can I get a sample before mass production?
Yes, we can offer you free samples to test quality, but you should pay the shipping fee.
3. What is your delivery time?
Ready to ship for stock and 15-30 days for mass production.
4. What after-service can you offer?
One year guarantee period and we can offer technical support online 24 hours.
5. Can you accept OEM/ODM order?
Yes, please send inquiry to us so that we can have a detailed discussion.
6. What is your advantage?
19 years of production experience and we have been industry-trusted partners for many years.
