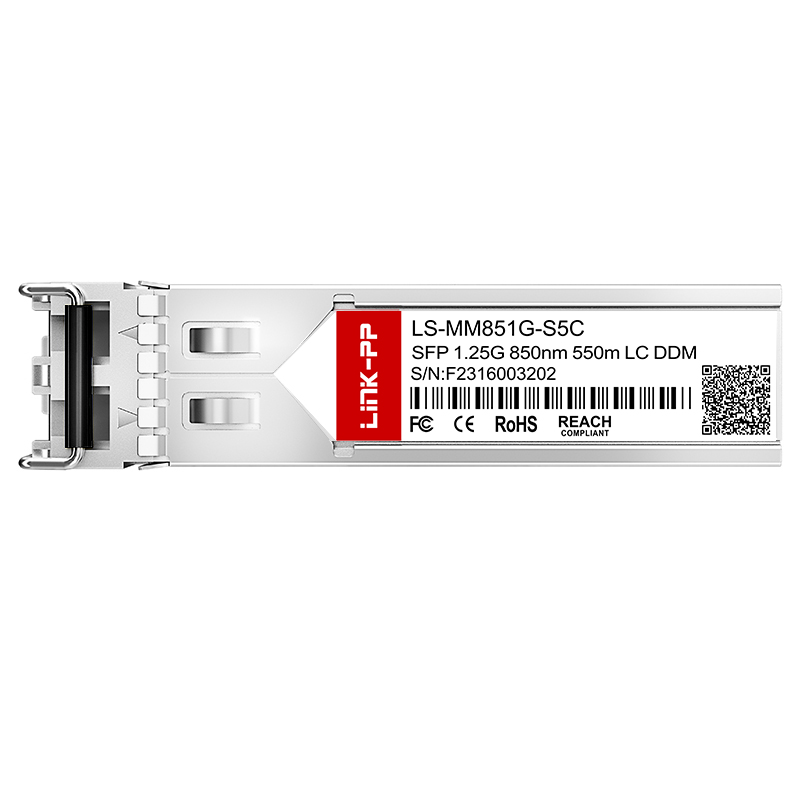

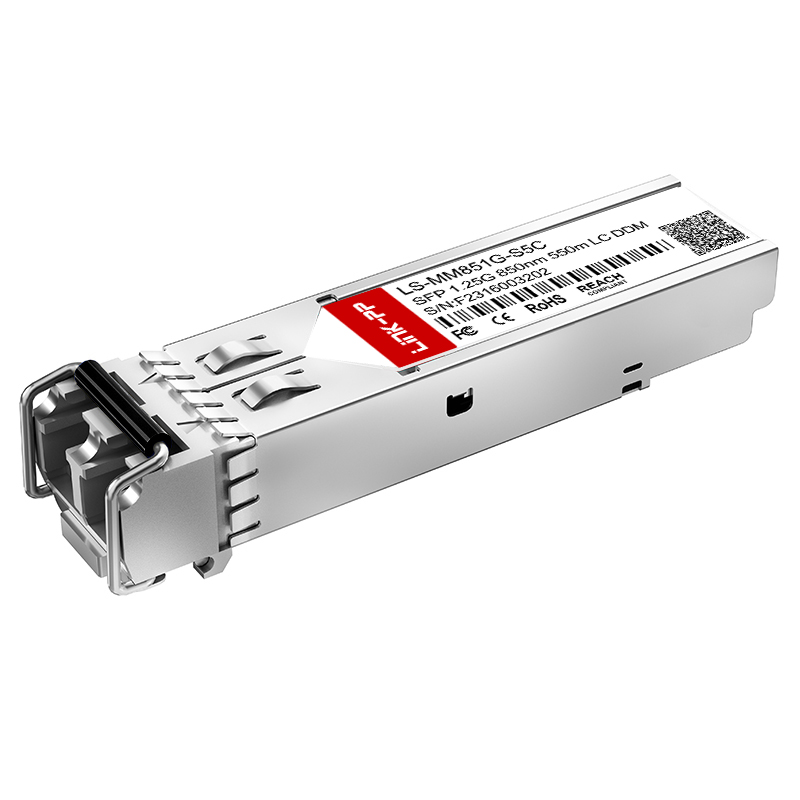

J4858D HPE Aruba Compatible 1000BASE SX Duplex LC Optical Transceiver Multimode 850nm 1.25G SFP Module 550m

1 / 5

J4858D HPE Aruba Compatible 1000BASE SX Duplex LC Optical Transceiver Multimode 850nm 1.25G SFP Module 550m

Send Inquiry

Product Description

Products Description

Item	1000BASE SFP
Compatible	J4858D HPE Aruba
Part Status	Active
Form Factor	SFP
Max Data Rate	1.25Gbps
Wavelength	850nm
Max Cable Distance	550m
Media	MMF

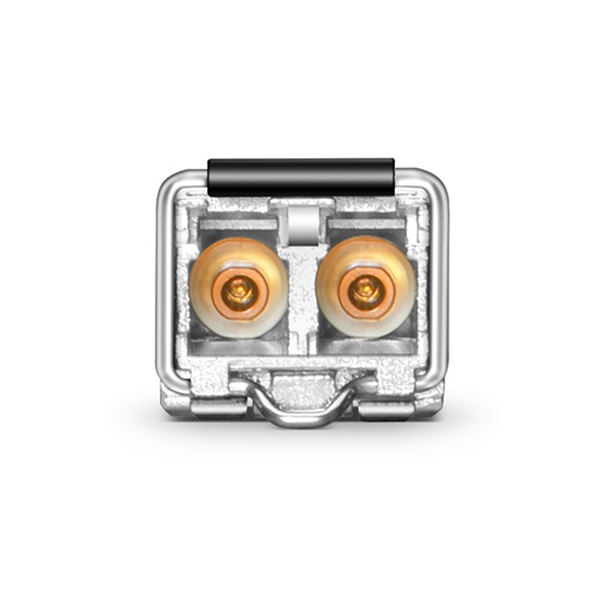

Connector	Duplex LC
Optical Component	VCSEL/PIN
TX Power	-9.5~-3dBm
Receiver Sensitivity	<-17dBm
Receiver Overload	-3dBm
Power Consumption	≤0.8W
Extinction Ratio	>9dB
DDM/DOM	Supported
Commercial Temperature Range	0 to 70°C (32 to 158°F)
Protocols	IEEE 802.3z, SFF-8472, SFP MSA (INF-8074i) Compliant
Warranty	5 Years
Sample	Available

VIEW OUR SOLUTION

We draw on over 10 years of experience in chips and modules to integrate fast speeds, small size, power savings, and high performance in every module. Our optical modules provide fixed access, wireless access, carrier Ethernet, wavelength division multiplexing (WDM), and data communication networks.

Optical Transport Networks

We provide end-to-end DWDM device solutions with almost all optical devices - from active modules to optical passive devices, including optical amplifier (EDFA & RFA), Mux & Demux, OPM, ROADM, MCS, OLP, and OTDR etc.

Cloud and Enterprise

To meet the demand of mass data transmission in data centers, we have developed a series of high-speed optical modules with product rates ranging from 10G to 800G, providing high-quality optical interconnection solutions for data centers.

Wireless

We provide high reliability and performance products with mature and efficient lasers and mainstream chip solutions to our customers all around the world. The solution includes Dark Fiber, WDM, Radio over Fiber, High Speed, Mid-haul, and Back-haul which meet the needs of various scenarios in 4G/5G systems.

FTTx

Aimed at global communication network constructors, we provide FTTx optical fiber access total solutions covering all-optical or optical copper combined access solutions and products.

Subsystems

To ensure the normal operation of the communication line, we provide the optical cable O&M solution which integrates an optical line protection system (OLP) and an optical line monitoring system (OLM).

⚙ Related Products SFP Cage ⚙

Why Choose Us

FAQ

Are you a factory or trading company?

We are a specialized manufacturer of magnetic telecom and networking components, including RJ45 connectors, lan transformers, RJ11 connectors, and SFP modules.

Can I get a sample before mass production?

Yes, we can offer you samples to test quality, with shipping fees applied.

What is your delivery time?

Ready to ship for stock items, and 15-30 days for mass production.

What after-service can you offer?

We provide a warranty period and offer online technical support to assist you.

Can you accept OEM/ODM orders?

Yes, please send your requirements to us so we can discuss the details.

What is your main advantage?

We have extensive production experience and cooperate with global industry leaders to deliver reliable solutions.
