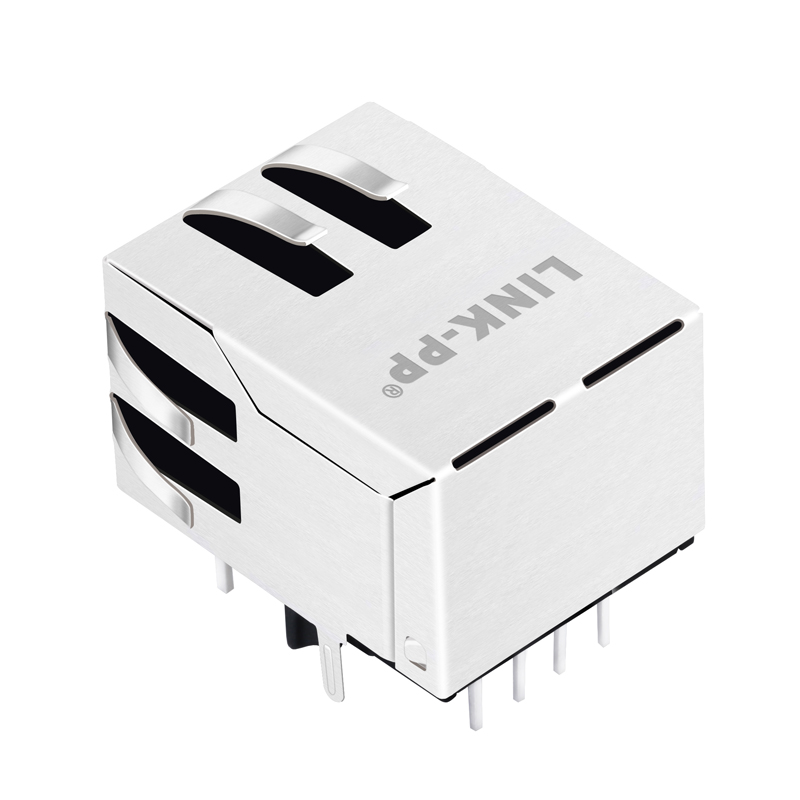

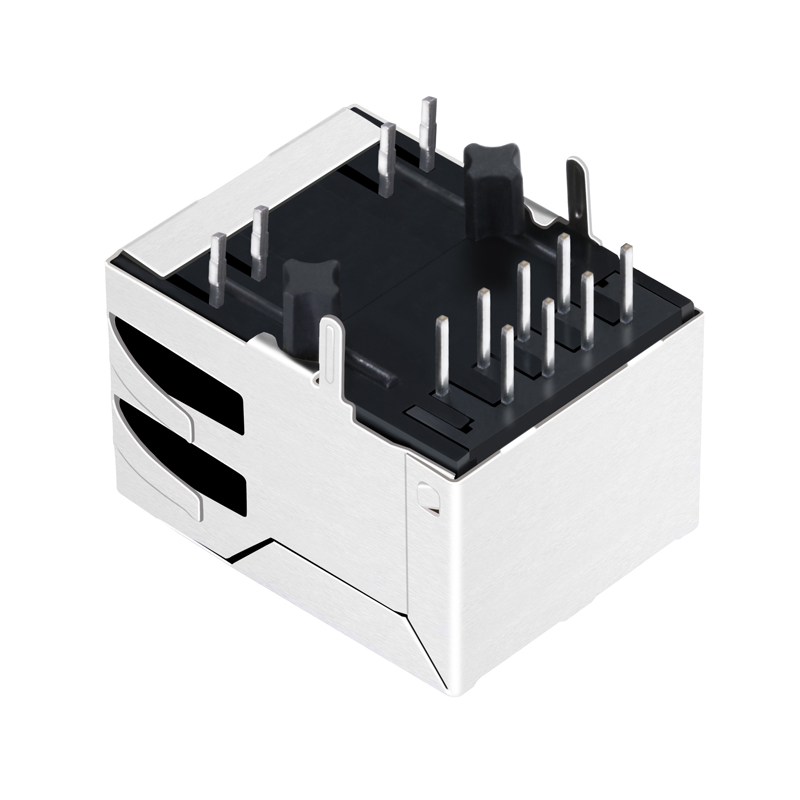

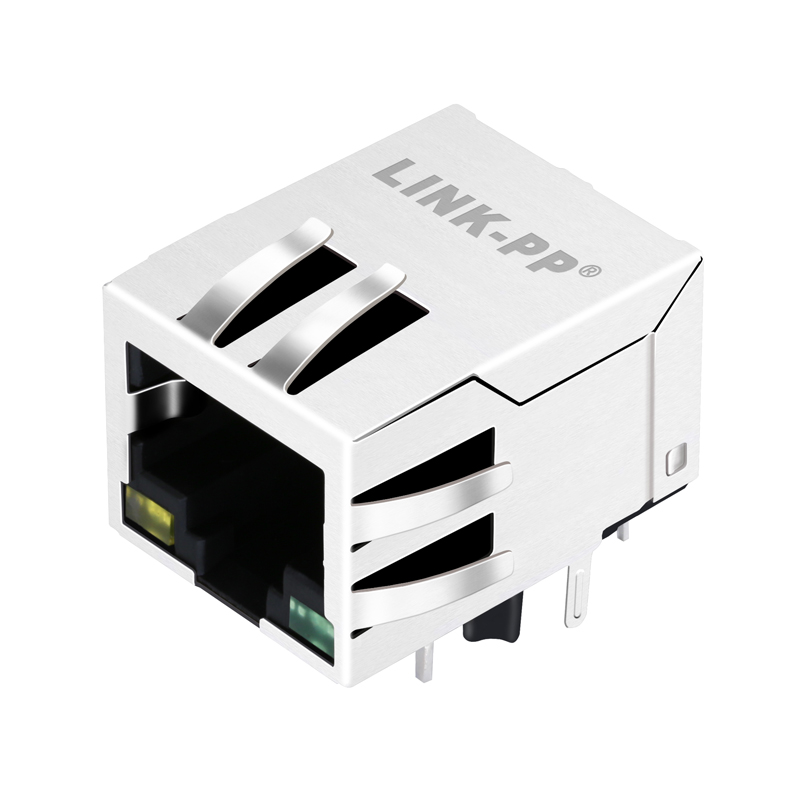

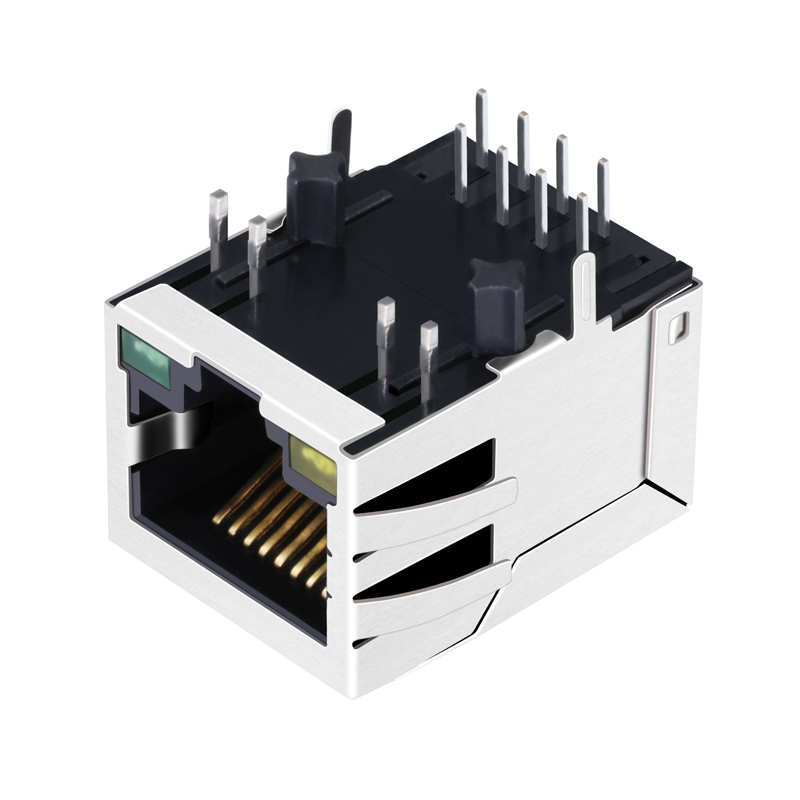

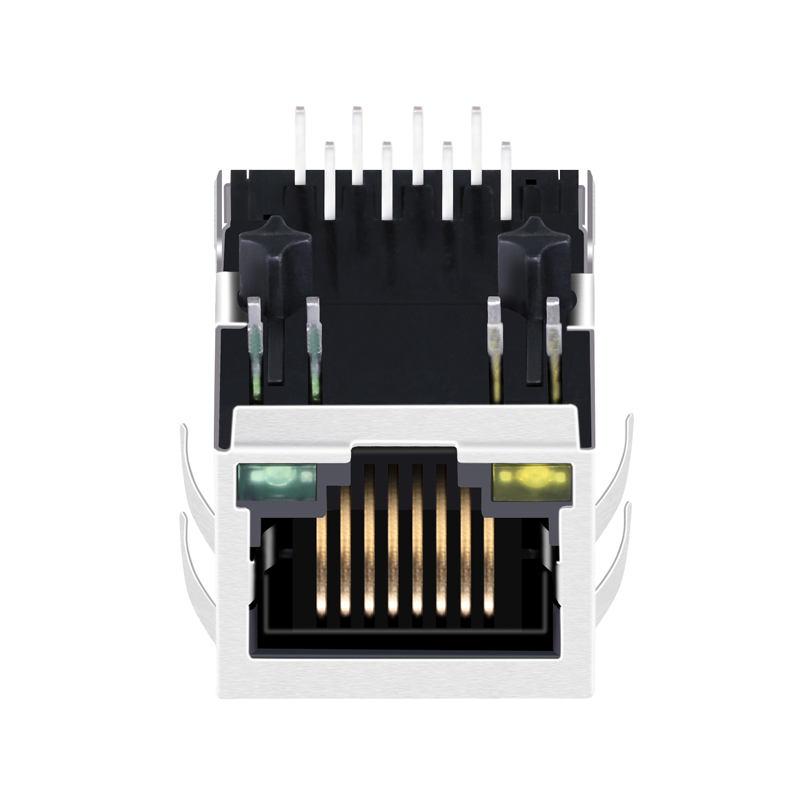

Female RJ45 for Internet Modular Plug TIC-L003-11
| Part Number |
TIC-L003-11 |
| AutomDX |
YES |
| Bst Circuit |
YES |
| Configuration RX |
T,C |
| Configuration TX |
T,C |
| Contact Mating Area Plating |
GOLD 6u"/15u"/30u" |
| Cores Per Port |
4 |
| Diodes |
NO DIODES |
| LED Option |
WithOUT LEDS |
| Latch |
DOWN |
| Number of Ports |
1X1 |
| PCB |
FR4 |
| PCB Mount Angle |
SIDE ENTRY |
| PCB Retaining Post |
T POST |
| Pin Type |
THT SOLDER |
| RoHS Compliant |
YES-RoHS-5 With LEAD IN SOLDER EXEMPTION |
| Search |
YES |
| Shield EMI Tabs |
With OR WithOUT |
| Speed |
10/100 BASE-T |
| Temperature |
0 TO 70°C/-40 TO 85°C |
| Turns Ratio RX |
1CT:1 |
| Turns Ratio TX |
1CT:1 |
Why Choose Us
World’s Leader Supplier Of Integrated RJ45 Connector And Discrete Magnetic Transformers
Professional Certification
- ISO 9001:2008
- UL Certification
- Reach Certification
- RoHS Compliance
- Active Environmental Policy
- Manufactured Under Strict Controls.
- 100% Tested (Not Just Batch Tested)
- Successful Customers: Texas Instruments, Samsung, Cisco, Siemens, Intel...
- Quality Guarantee: 6 Years
Competitive Price And Service
- More Competitive Price Than Pulse, Tyco, Halo, Wurth, And Amphenol
- Delivery Time: 2-3 Weeks After Orders
- Free Samples Are Available
- Provide New Design For Customer Requirements
- 90% Off Shipping Cost By DHL, UPS, FEDEX, Or TNT
• Preferred Supplier Of Texas Instruments, Samsung, Cisco, Siemens & Intel
Female RJ45 for Internet Modular Plug TIC-L003-11
Frequently Asked Questions
Q: What is the transmission speed of the TIC-L003-11 modular plug?
This Female RJ45 modular plug supports 10/100 BASE-T network transmission speeds, making it ideal for standard Ethernet applications.
Q: Does this RJ45 connector include integrated LED status lights?
No, the TIC-L003-11 is designed without LEDs and does not feature built-in diodes.
Q: What is the operating temperature range for this connector?
The connector is rated to operate reliably within a standard temperature range of 0°C to 70°C, and an extended industrial range of -40°C to 85°C.
Q: What are the mounting and latch configurations?
It features a THT solder pin type, a side-entry PCB mounting angle, and a DOWN latch position.
Q: Is this product compliant with environmental standards?
Yes, it is RoHS compliant (RoHS-5 with lead in solder exemption) and conforms to Reach certification guidelines.
Q: What is the contact mating area plating material?
The contact mating area is plated with gold, with thickness options of 6u", 15u", or 30u" depending on custom specifications.
