Drawing on over 10 years of industry experience to integrate fast speeds, small size, power savings, and high performance in every module. Providing a full series of optical modules for fixed access, wireless access, carrier Ethernet, WDM, and data communication networks.

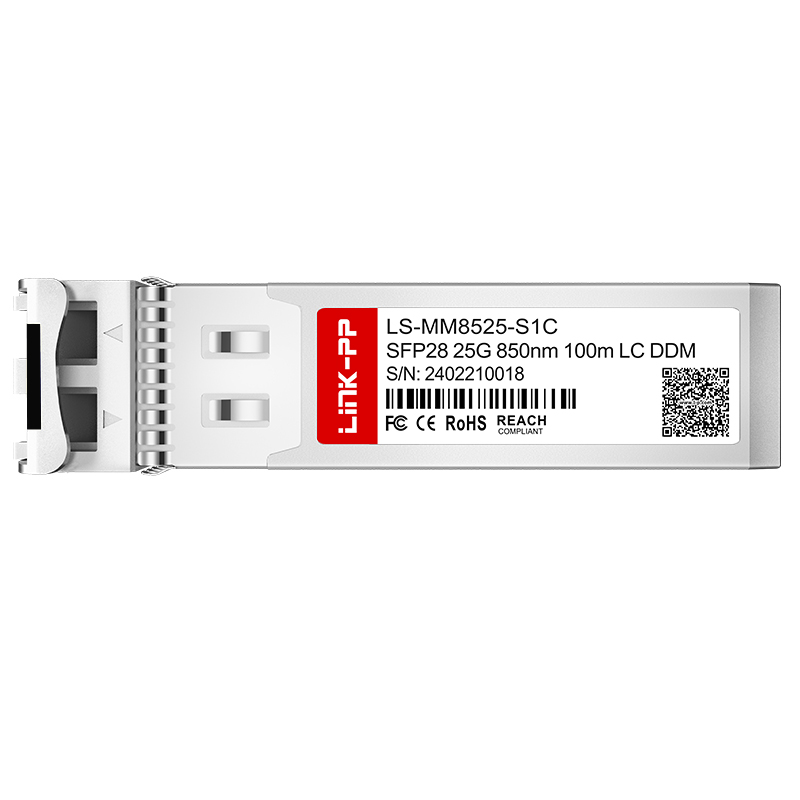

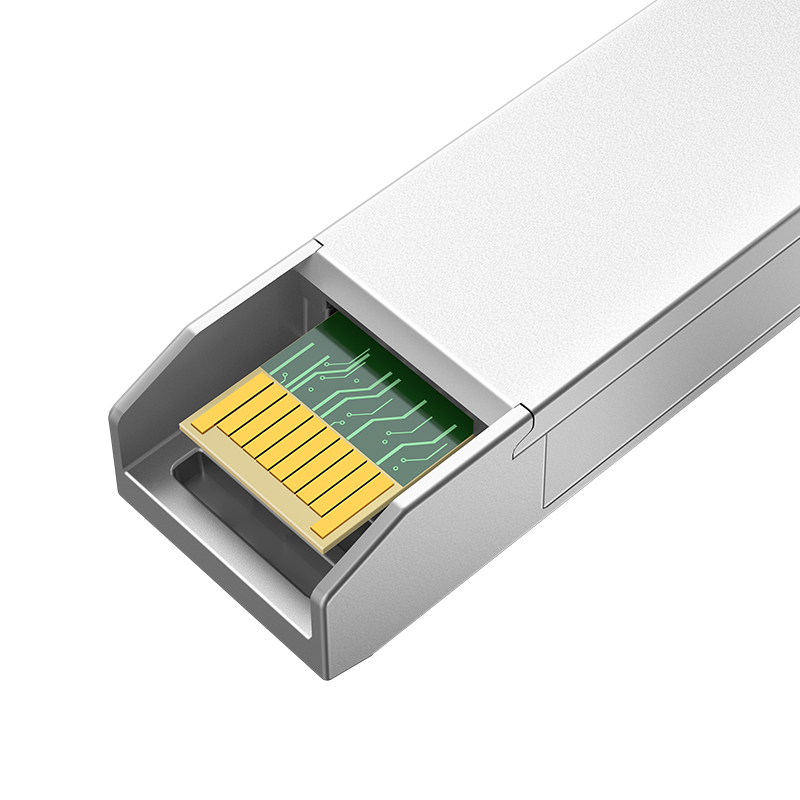

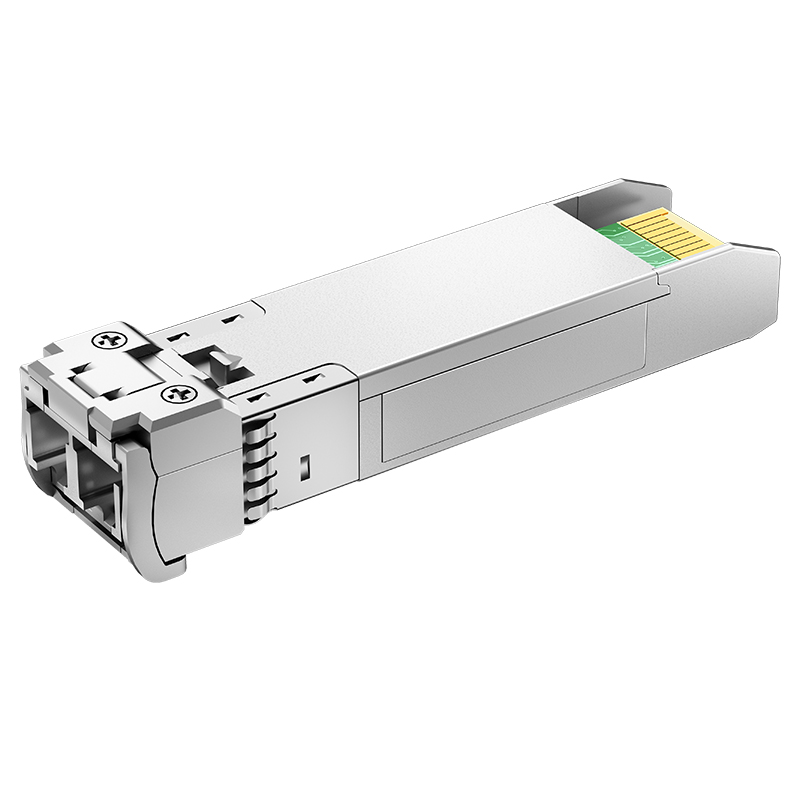

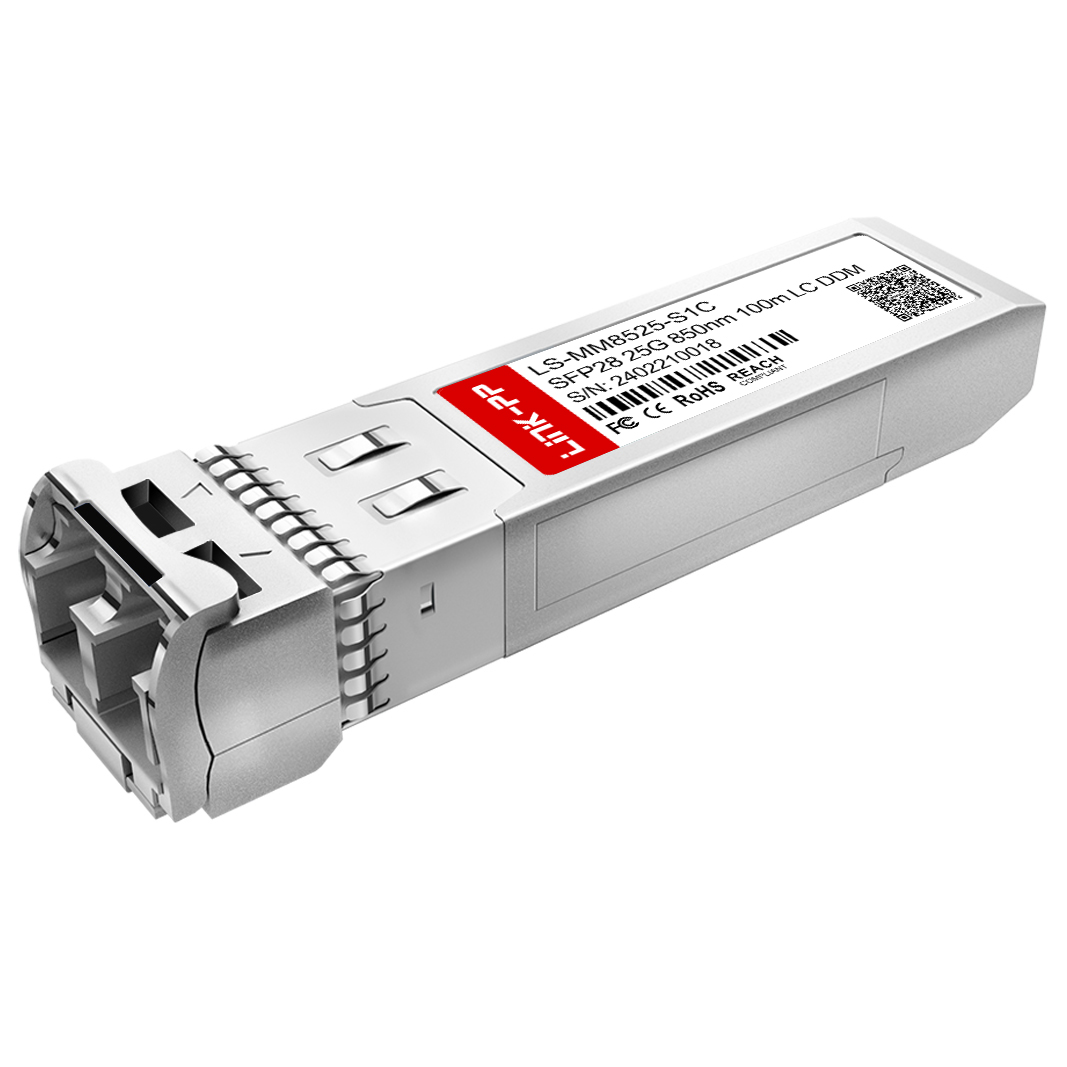

| Item | 25G SFP28 Transceiver |
| Part No. | LS-MM8525-S1C |
| Form Factor | SFP28 |
| Max Data Rate | 25Gbps |
| Wavelength | 850nm |
| Max Cable Distance | 100m |
| Media | MMF |
| Connector | Duplex LC |
| Optical Component | VCSEL/PIN |
| TX Power | -7.9~1.9dBm |
| Receiver Sensitivity | <-6dBm |
| Receiver Overload | 2.4dBm |
| Power Consumption | ≤1W |
| Extinction Ratio | >2dB |
| DDM/DOM | Supported |
| Commercial Temperature Range | 0℃ to 70°C / -40℃ to 85℃ |
| Protocols | SFF-8472, SFF-8024, SFF-8431, SFF-8432 |
| Warranty | 5 Years |
Providing end-to-end DWDM devices including active modules and optical passive devices, such as optical amplifiers (EDFA & RFA), Mux & Demux, OPM, ROADM, MCS, OLP, and OTDR.
Meeting mass data transmission demands in data centers with high-speed optical modules ranging from 10G to 800G, providing high-quality interconnection solutions.
Reliable and high-performance products using mature lasers and mainstream chip solutions. Includes Dark Fiber, WDM, Radio over Fiber, and solutions for 4G/5G systems.
Global communication network total solutions covering all-optical or optical-copper combined access products.
A specialized manufacturer of magnetic telecom and networking components, certified by ISO9001, RoHS, REACH, CE, and UL. Facilities feature advanced manufacturing and test equipment to ensure peak performance.
Offering a full series of optical modules for fixed access, wireless access, carrier Ethernet, wavelength division multiplexing (WDM), and data communication networks. The range also offers high-speed optical interconnection solutions for cloud computing and ultra-broadband networks.
