OptiLinker
OptiLinker

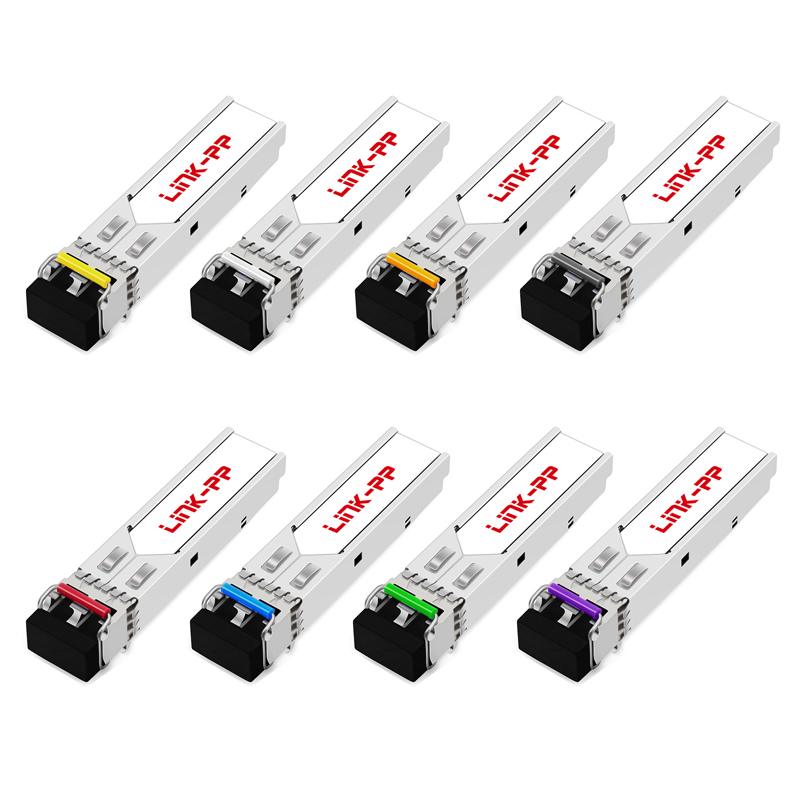

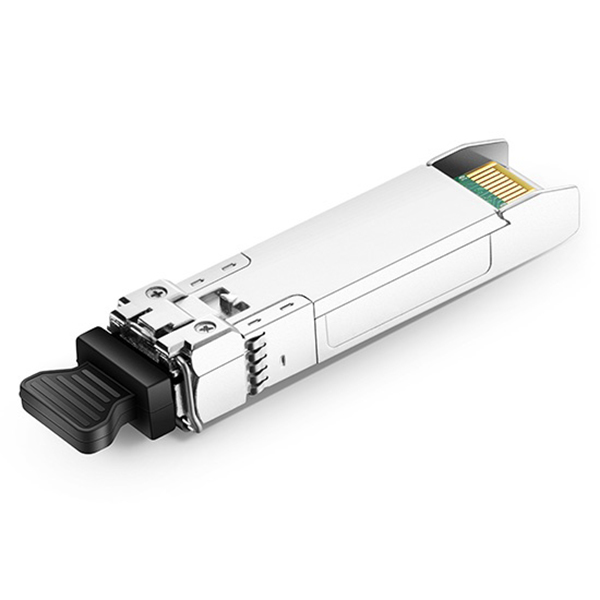

| Item | CWDM SFP |
| Part Status | Active |
| Form Factor | SFP28 |
| Max Data Rate | 25.8Gbps |
| Max Cable Distance | 10km |
| Wavelength | 1270nm-1370nm / 1470nm-1570nm |
| Connector | Duplex LC |
| Media | SMF |
| Optical Component | DFB CWDM / EML CWDM |
| TX Power | 0~6dBm / -2~6dBm |
| Receiver Sensitivity | <-14dBm / <-12dBm |
| Power Consumption | 1.3W / 2W |
| Extinction Ratio | 3.5dB / 5dB |
| DDM/DOM | DDM Supported |
| Commercial Temperature Range | 0 to 70°C (32 to 158°F) |
| Protocols | MSA Compliant, CPRI, eCPRI |
| Warranty | 5 Years |
| Sample | Available |
Specialized manufacturer of magnetic telecom and networking components, certificated by ISO9001:2000, ROSH, REACH, CE and UL. We own advanced manufacturing facilities and test equipment imported from abroad.
With abundant productive capacity, we are able to deliver products within a short lead time. We provide a full series of optical modules for fixed access, wireless access, carrier Ethernet, wavelength division multiplexing (WDM), and data communication networks. The range also offers high-speed optical interconnection solutions for cloud computing and ultra-broadband networks.
