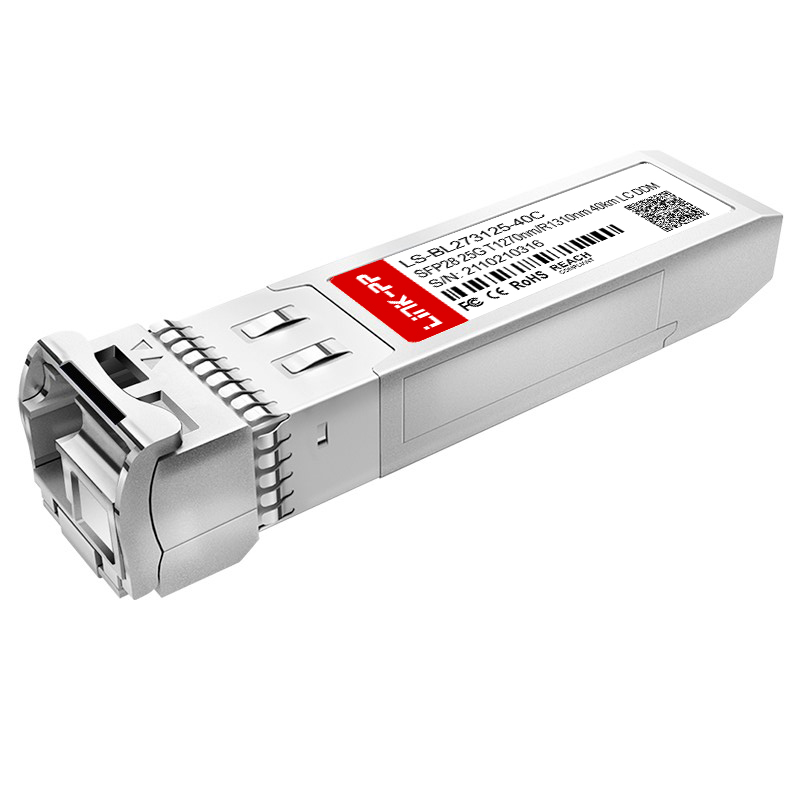

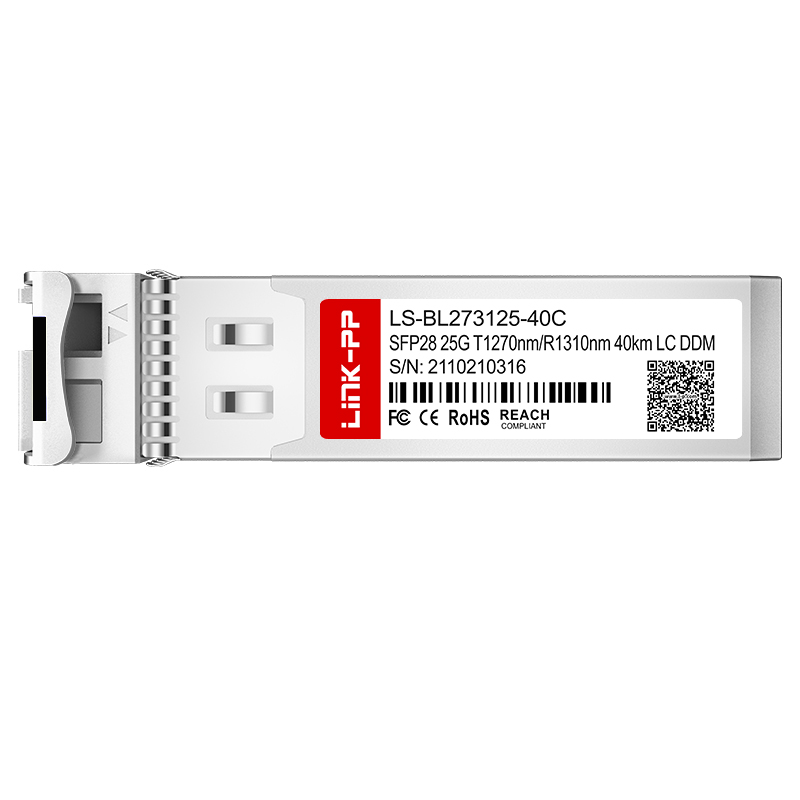

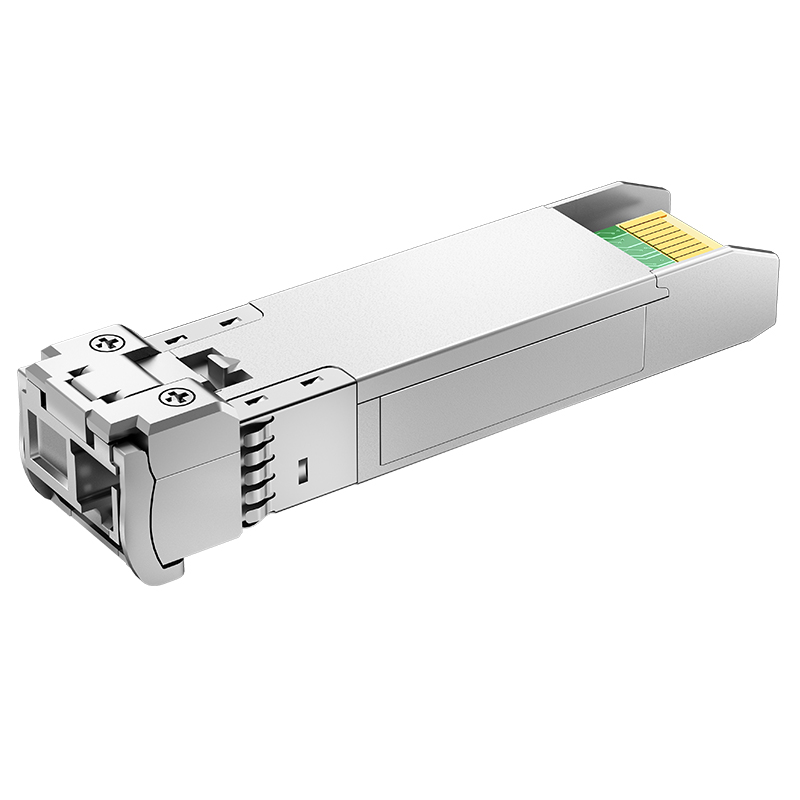

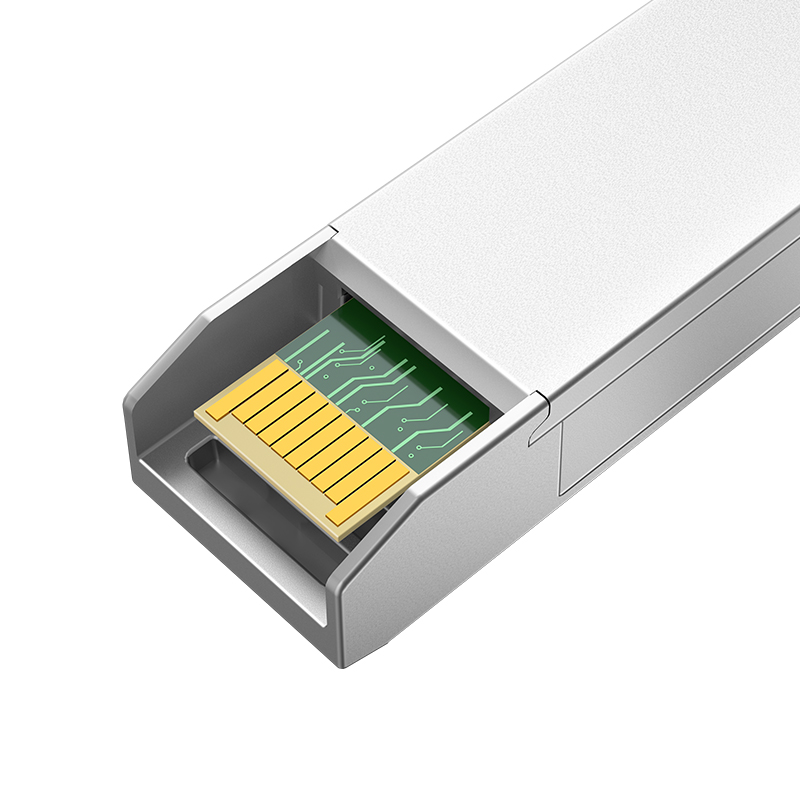

| Item | 25G SFP28 Transceiver |
| Part No. | LS-BL273125-40C |
| Part Status | Active |
| Form Factor | SFP28 |
| Max Data Rate | 25Gbps |
| Wavelength | 1270nm-TX/1310nm-RX |
| Max Cable Distance | 40km |
| Media | SMF |
| Connector | Simplex LC |
| Optical Component | DFB/APD |
| TX Power | 0~6dBm |
| Receiver Sensitivity | <-18dBm |
| Receiver Overload | 2dBm |
| Power Consumption | 1.2W |
| Extinction Ratio | 3.5dB |
| DDM/DOM | Supported |
| Temperature Range | 0℃ to 70°C / -40℃ to 85℃ |
| Protocols | MSA Compliant, CPRI, eCPRI |
| Warranty | 5 Years |
| Sample | Available |
We draw on over 10 years of experience in chips and modules to integrate fast speeds, small size, power savings, and high performance in every module. We provide a full series of optical modules for fixed access, wireless access, carrier Ethernet, wavelength division multiplexing (WDM), and data communication networks.
End-to-end DWDM device solutions with almost all optical devices - from active modules to optical passive devices, including optical amplifier(EDFA & RFA), Mux & Demux, OPM, ROADM, MCS, OLP and OTDR etc.
High-speed optical modules with rates ranging from 10G to 800G, providing high-quality optical interconnection solutions for data centers to meet mass data transmission demands.
Solutions including Dark Fiber, WDM, Radio over Fiber, High Speed, Mid-haul and Back-haul, meeting all technical needs for 4G/5G systems globally.
Total optical fiber access solutions covering all-optical or optical copper combined access products for global communication network constructors.
As a specialized manufacturer of magnetic telecom and networking components, we are certificated by ISO9001:2000, ROSH, REACH, CE and UL. Our facilities utilize advanced manufacturing and test equipment imported from abroad. Established in 1997, we maintain a large workforce and a monthly production capacity of 3000K, ensuring rapid delivery and high-quality optical interconnection solutions for cloud computing and ultra-broadband networks.
