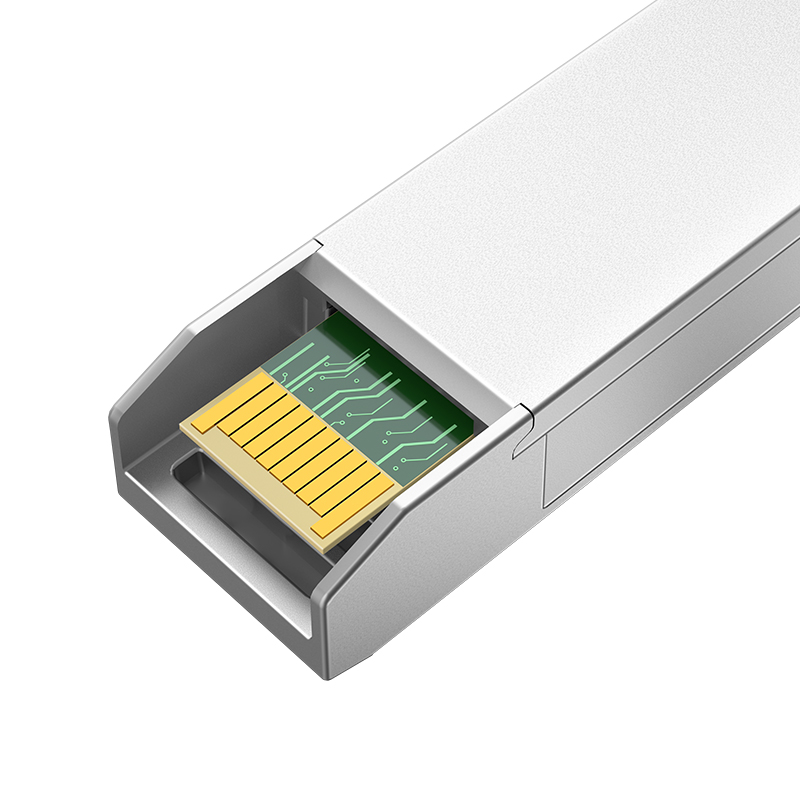

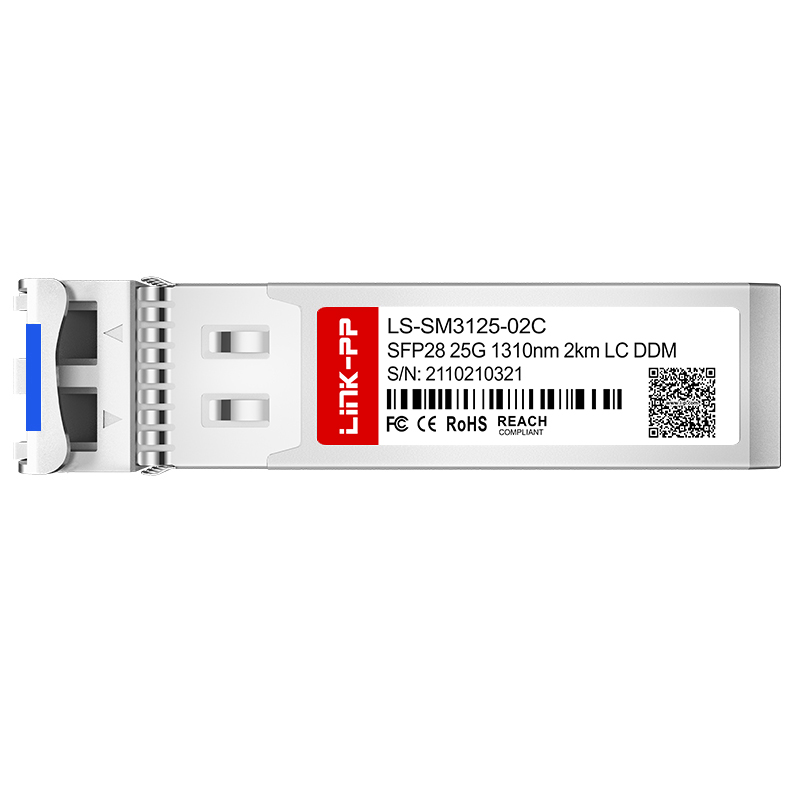

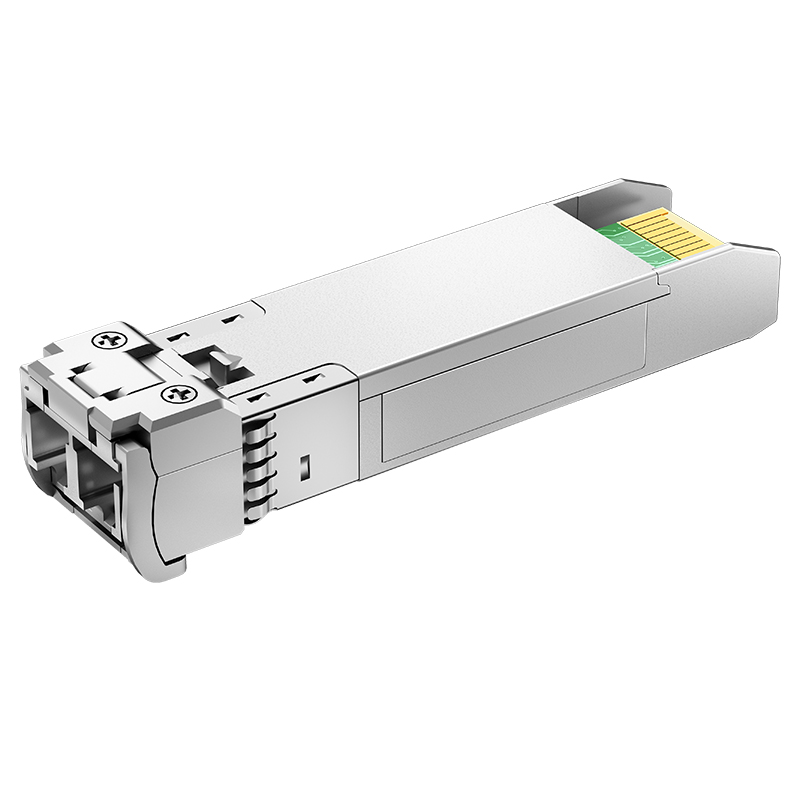

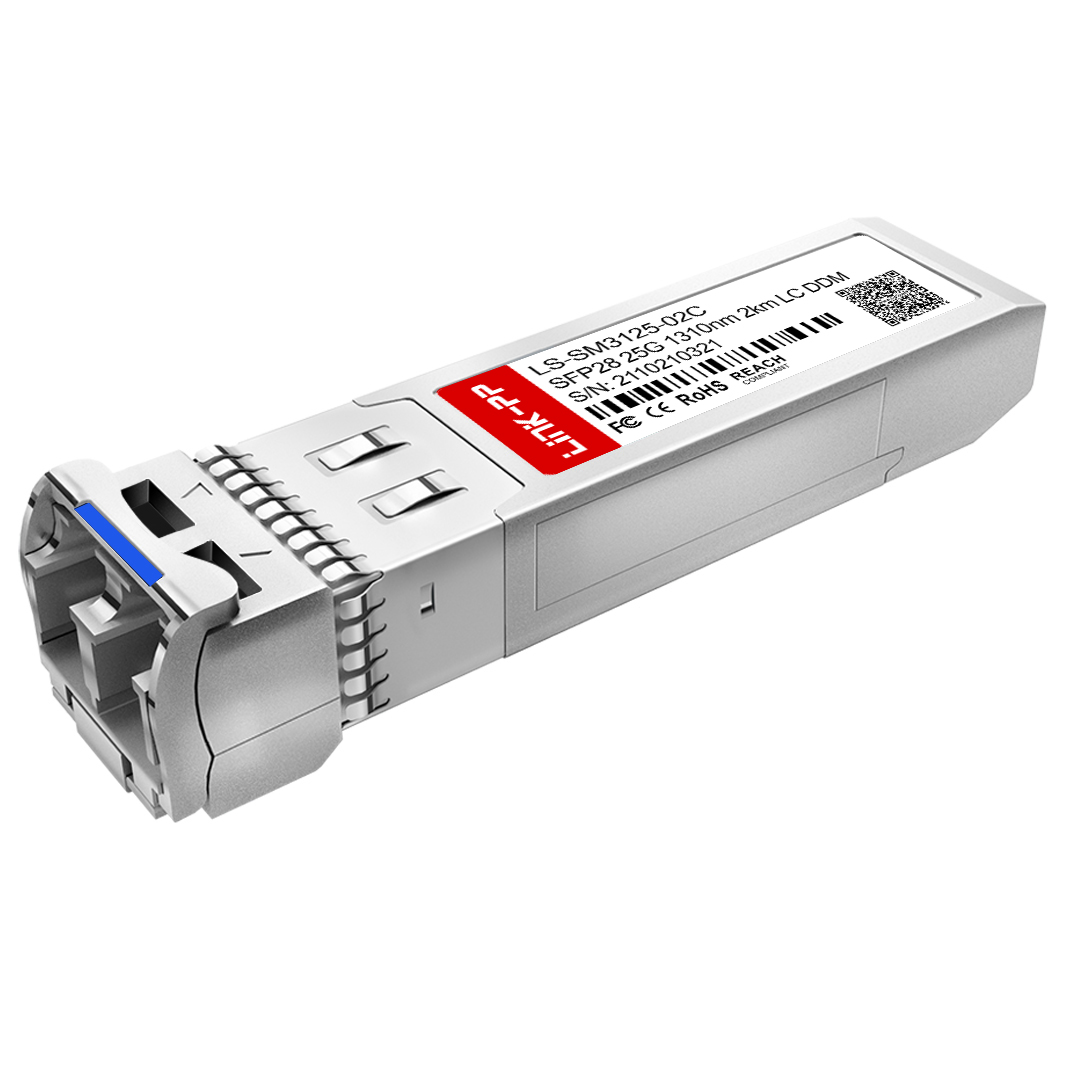

| Item | 25G SFP28 Transceiver |
| Part No. | LS-SM3125-02C |
| Part Status | Active |
| Form Factor | SFP28 |
| Max Data Rate | 25Gbps |
| Wavelength | 1310nm |
| Max Cable Distance | 2km |
| Media | SMF |
| Connector | Duplex LC |
| Optical Component | DFB/PIN |
| TX Power | -7~2.5dBm |
| Receiver Sensitivity | <-12dBm |
| Receiver Overload | 2dBm |
| Power Consumption | 1.2W |
| DDM/DOM | Supported |
| Temperature Range | 0℃ to 70°C / -40℃ to 85℃ |
| Protocols | SFP28 MSA, SFF-8472 |
| Warranty | 5 Years |
| Sample | Available |
