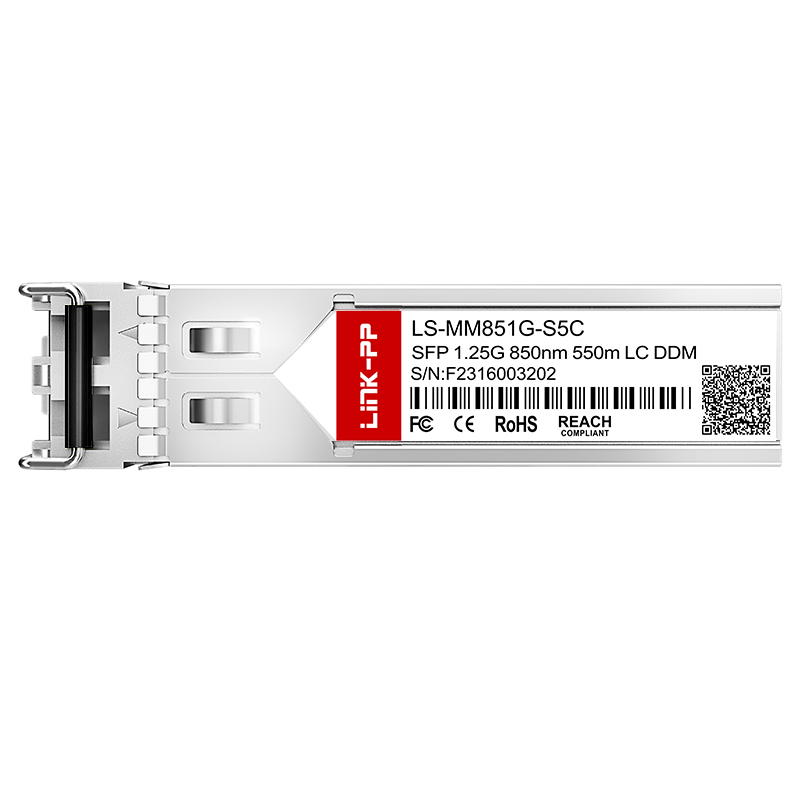

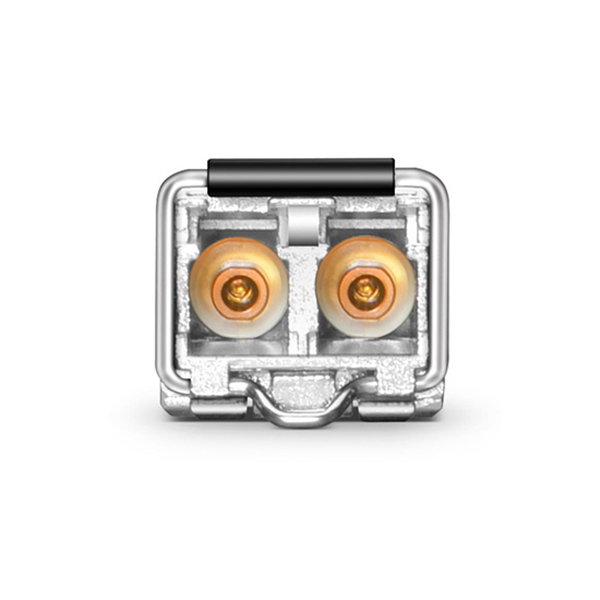

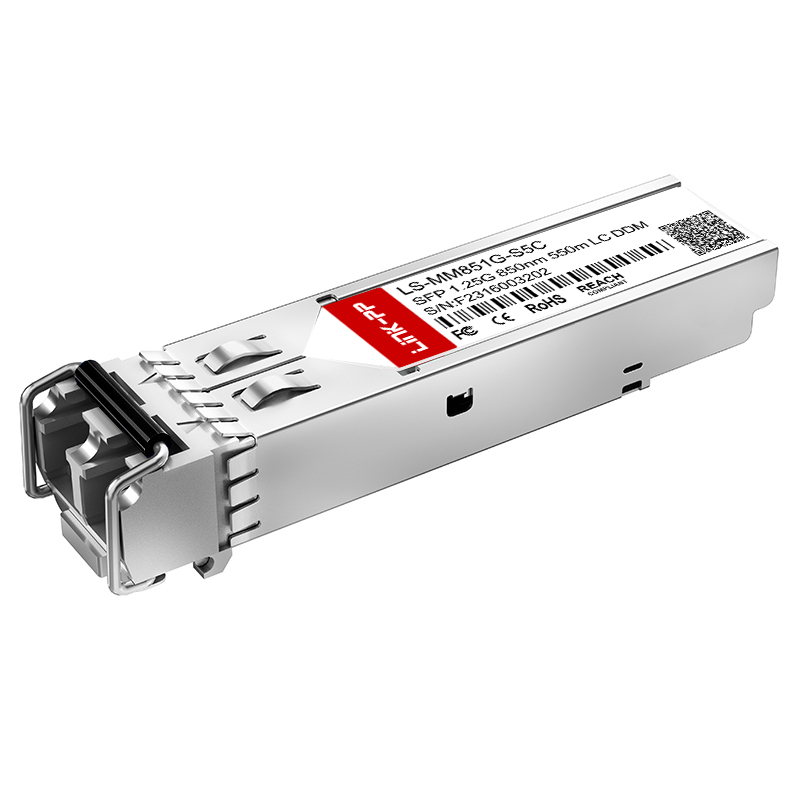

1000BASE-SX SFP 850nm 550m DOM Duplex LC MMF 1.25G Transceiver Module
Products Description
| Item |
SFP Module |
| Part Status |
Active |
| Form Factor |
SFP |
| Max Data Rate |
1.25Gbps |
| Wavelength |
850nm |
| Max Cable Distance |
550m |
| Connector |
Duplex LC |
| Media |
Multimode (MMF) |
| Optical Component |
VCSEL/PIN |
| DDM/DOM |
Supported |
| Commercial Temperature Range |
0 to 70°C (32 to 158°F) |
| TX Power |
-9.5 ~ - 3dBm |
| Receiver Sensitivity |
< -17dBm |
| Typical Power Consumption |
≤0.8w |
| Receiver Overload |
-3dBm |
| Bit Error Ratio (BER) |
1E-12 |
| Extinction Ratio |
>9dB |
| EMC (Electro Magnetic Compatibility) |
Supported |
| MTBF (SX) |
2,457,002 Hours |
| Protocols |
IEEE 802.3z, SFF-8472, SFP MSA (INF-8074i) Compliant |
| Warranty |
5 Years |
| Sample |
Available |
View Our Solution
We draw on over 10 years of experience in chips and modules to integrate fast speeds, small size, power savings, and high performance in every module. We provide a full series of optical modules for fixed access, wireless access, carrier Ethernet, wavelength division multiplexing (WDM), and data communication networks.
Optical Transport Networks
We can provide end-to-end DWDM device with almost all optical devices - from active modules to optical passive devices, including optical amplifier (EDFA & RFA), Mux & Demux, OPM, ROADM, MCS, OLP and OTDR etc.
Cloud and Enterprise
To meet the demand of mass data transmission in data centers, we have developed a series of high-speed optical module which the product rate ranging from 10G to 800G, providing high-quality optical interconnection solutions for data centers.
Wireless
We provide high reliability and performance products with mature and efficient lasers and mainstream chip solutions to our customers all around the world. The solution includes Dark Fiber, WDM, Radio over Fiber, High Speed, Mid-haul and Back-haul which could meet all the needs of various scenarios in 4G/5G systems.
FTTx
Aim to global communication network constructers, we provide FTTx optical fiber access total solutions covered from all-optical or optical copper combined access solutions and products.
Subsystems
To ensure the normal operation of the communication line, we provide the optical cable O&M solution which integrates an optical line protection system (OLP) and an optical line monitoring system (OLM).
» Related Products SFP Cage
