43F-1201DYD2NL 7497011611 8211-1X1T-36-F Single Port USB 3.0 Ethernet Modular RJ45 Female Connector
Products Description
item Rj45 Connector
Model Number LPJU3101AONL
Part Status Active
Connector Type RJ45
Applications-Lan 10/100 Base-T, AutoMDIX ( NoN PoE)
Mounting Type Through Hole
Orientation 90° Angle (Right)
Termination Solder
Contact Finish Thickness 6.00µin (0.152µm)
LED Color Orange&Green /Yellow
Number of Cores per Jack 4
Shielding Shielded, EMI Finger
Number of Ports Single Port with Single USB
Features Board Guide
Tab Direction Down
Contact Finish Gold
Configuration RX/TX T,C
Turns Ratio RX/TX 1CT:1CT
Operating Temperature 0°C ~ 70°C

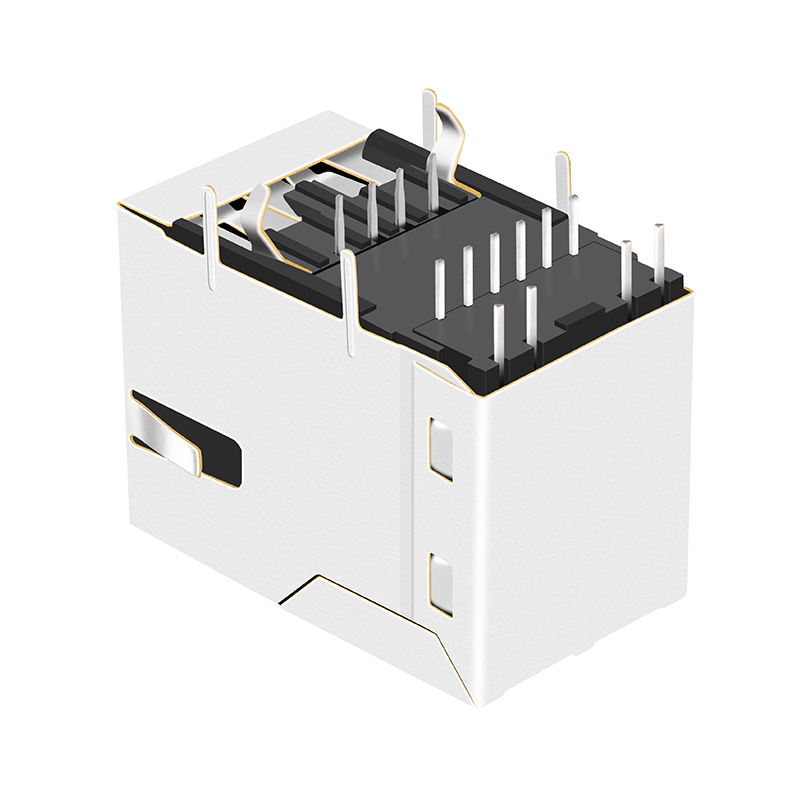

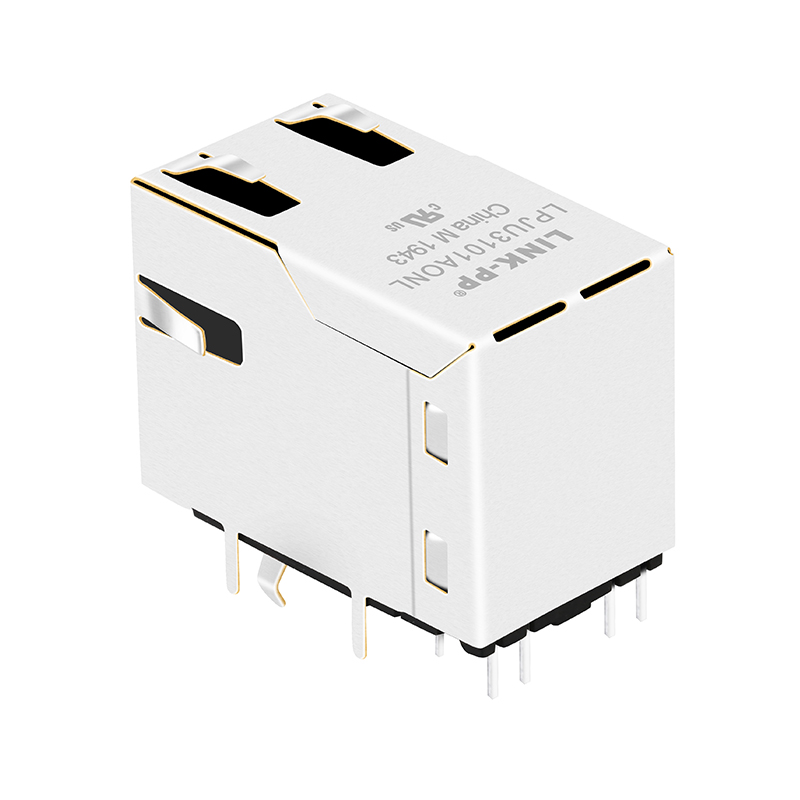

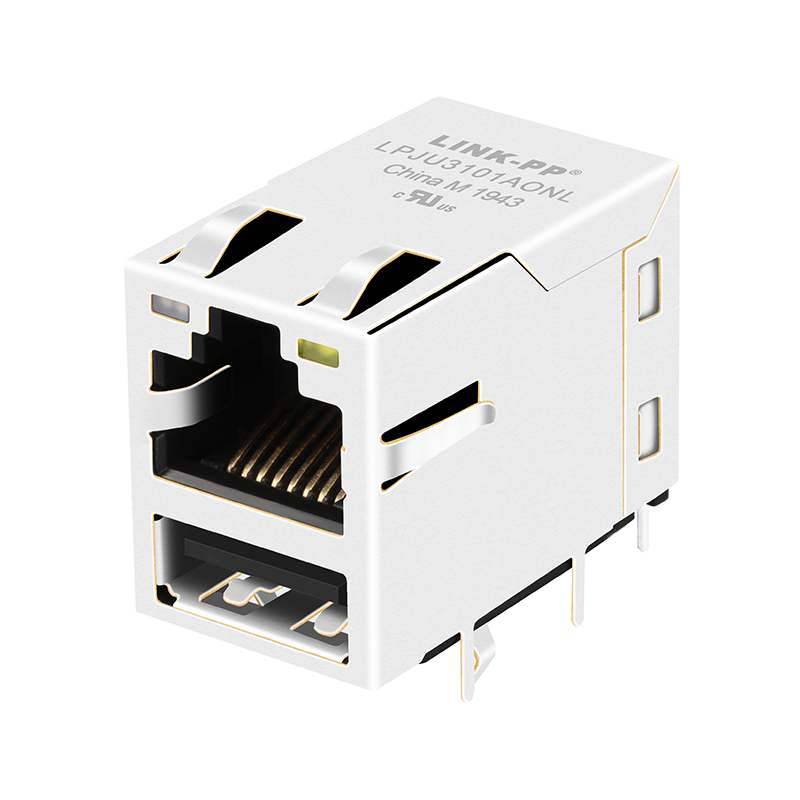

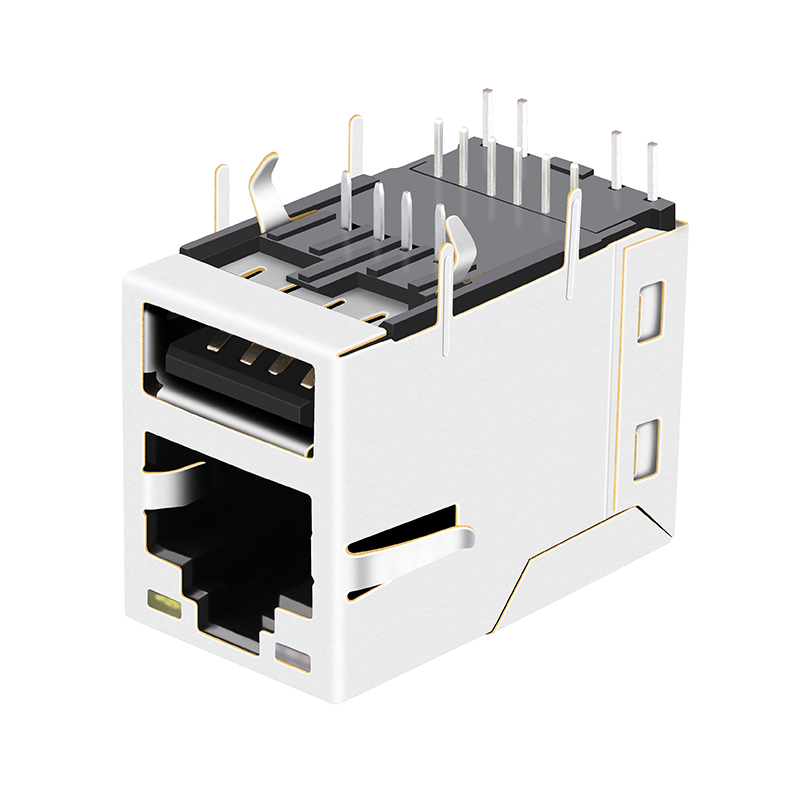

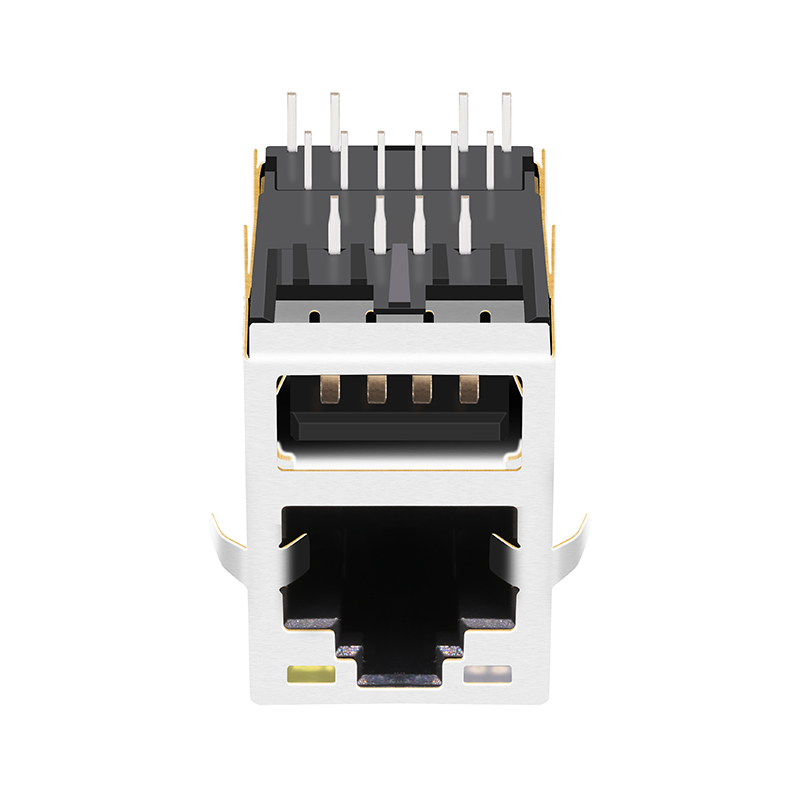

Product Angle 1
Product Angle 2
Product Angle 3
Product Angle 4
Product Angle 5
Product Angle 6
Product Angle 7
Product Angle 8
Product Angle 9
Product Specifications Drawing
Why Choose Us
Manufacturing Power
Quality Control
Custom Design Capability
Global Certificates
Company Profile
We are a specialized manufacturer of magnetic telecom and networking components, certificated by ISO9001:2000, ROSH, REACH, CE and UL, owning advanced manufacturing facilities and test equipments imported from abroad. Established in 1997, we have around 2000 staff at present. With the abundant productive capacity of 3000K per month, we are able to delivery the goods within the short time. Moreover, we can provide the professional complete solution for magnetic components and strong technical support as well.

Main Products: 10/100/1000M LAN pulse transformer and filter, RJ45 connector with 10/100/1000M magnetic, T1/E1, T3/DS3/E3/STS-1 interface line transformer, ISDN, HDSL, ADSL and VDSL interface line transformer and splitter. Our products are widely used in networking and communication equipments such as HUB, PC card, Switch, Router, PC Mainboard, SDH, PDH, IP Phone, xDSL modem. We have exported our products to more than 30 countries and regions in the world. Our customers cover most of the countries in the world, including Germany, France, England, USA, Singapore, Korea, Canada and Japan.

Our engineering staff is dedicated to identifying, developing and manufacturing the optimal solution for our customers' unique requirements. We trust that our strength in the field and our faith of pursuing higher will convince you to be our long-term partner.
Factory Workshop
Testing Laboratory
Production Line
Warehouse Management
FAQ
Q 1. Are you factory or trading company?
We are a specialized manufacturer of magnetic telecom and networking components, such as RJ45 connector, lan transformer, RJ11 connector and SFP modules, etc.
Q 2. Can I get a sample before mass production?
Yes, we can offer you free sample to test quality, but you should pay the shipping fee.
Q 3. What is your delivery time?
Ready to ship for stock and 15-30 days for mass production.
Q 4. What after-service can you offer?
One year guarantee period and we can offer technical support online 24 hours.
Q 5. Can you accept OEM/ODM order?
Yes, please send inquiry to us so that we can have a detailed discussion.
Q 6. What is your advantage?
19 years of production experience in this industry.
