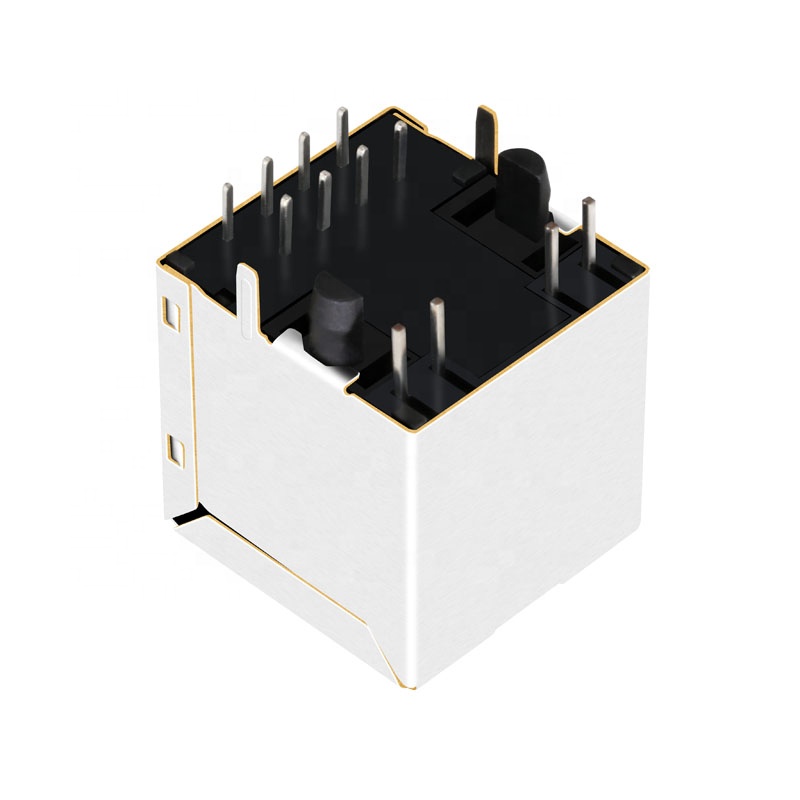

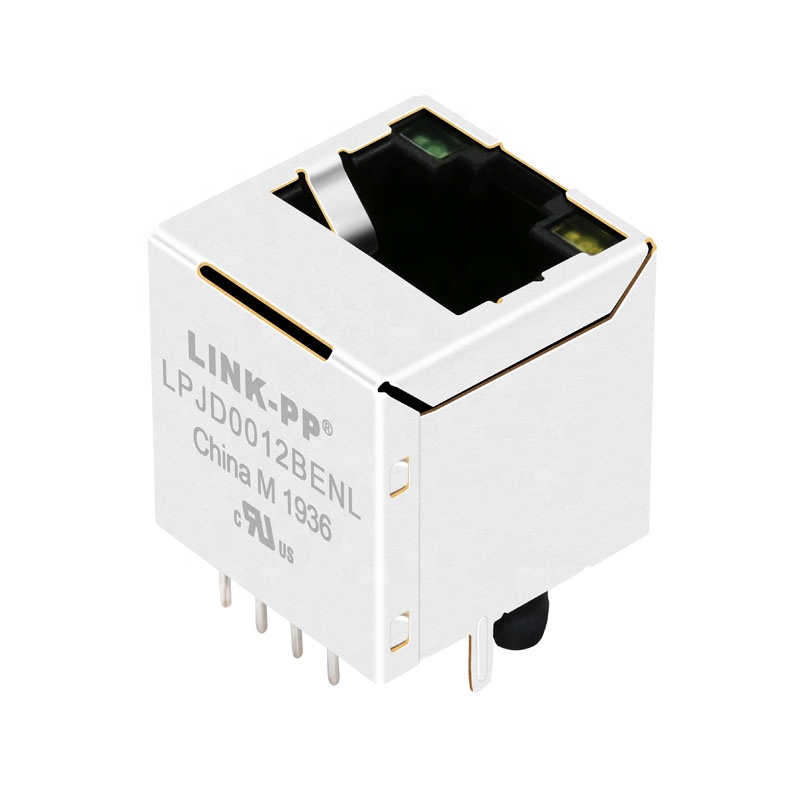

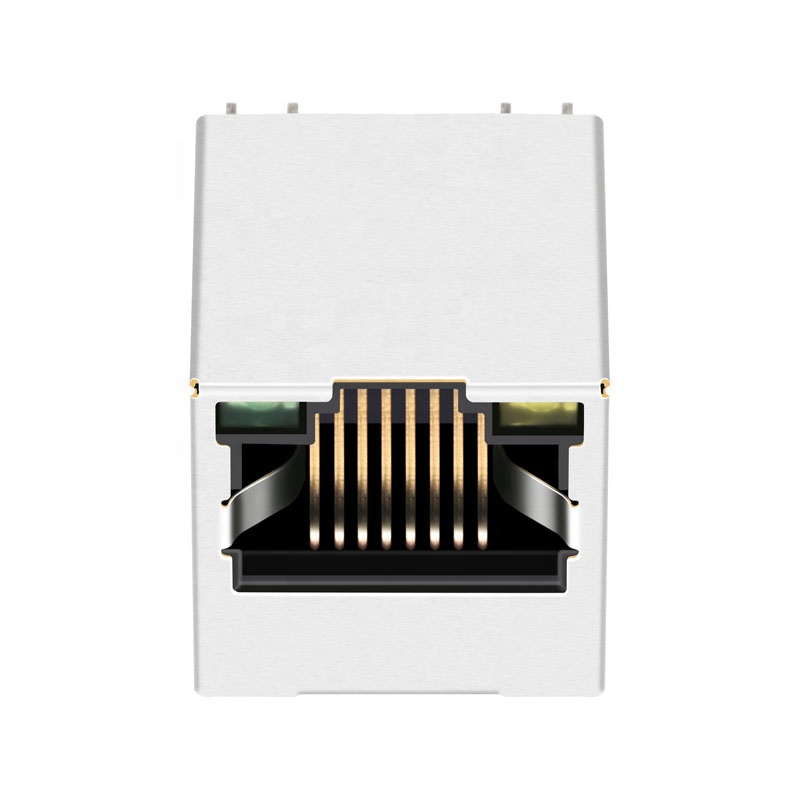

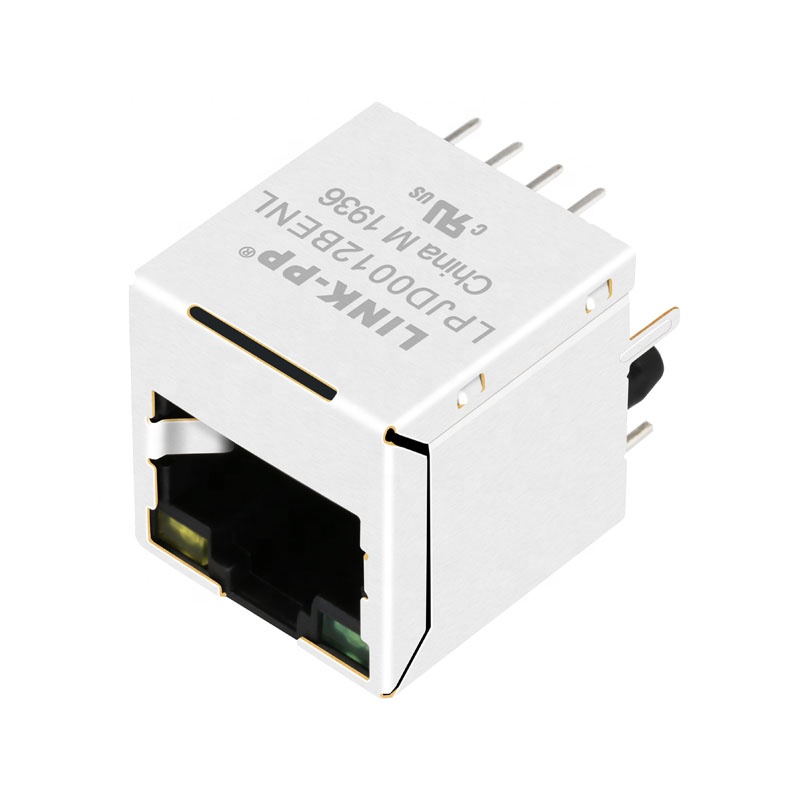

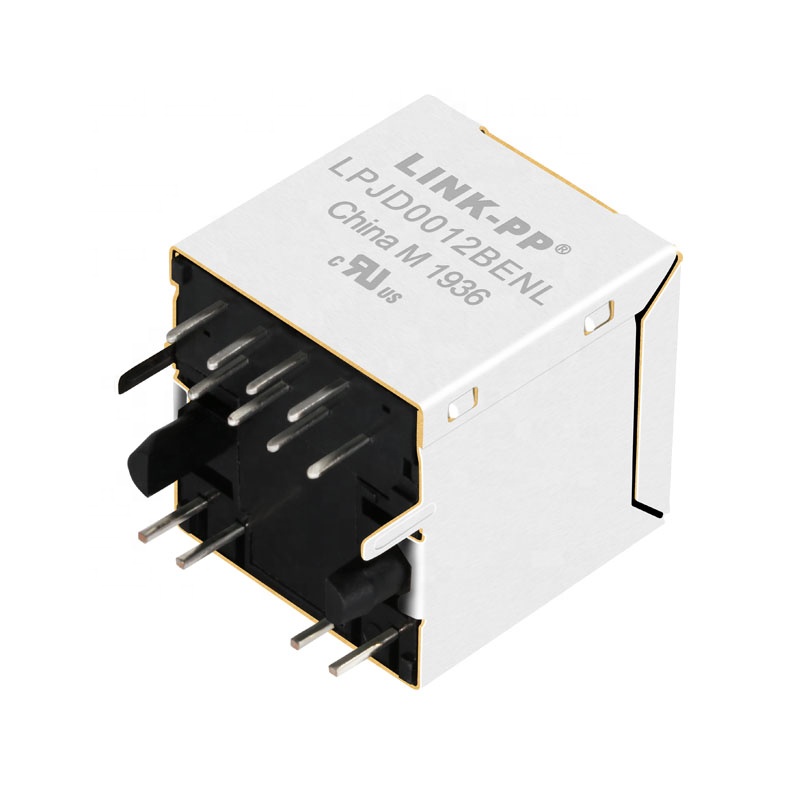

| Item | RJ45 Female Connector |
| Part Number | LPJD0012BENL |
| Compatible With | 51F-1203GYD2NL |
| Part Status | Active |
| Connector Type | Jack |
| Positions/Contacts | 8p8c (RJ45, Ethernet) |
| Application-Lan | Ethernet(NoN PoE) |
| Number of Ports | 1x1 Port |
| Speed | 10/100/1000 Base-T |
| Latch | Down/Up |
| Cores per Port | 4 |
| Orientation | 90° Angle (Right) |
| PCB Mount Angle | SIDE ENTRY |
| Shield EMI Tabs | Without/With |
| LED Option | Green/Yellow |
| PCB Material | FR4 |
| PCB Retaining Post | T POST |
| Temperature Range | 0℃ TO 70℃ / -40℃ TO 85℃ |
| Bst Circuit | Yes |
| AutomDX | YES |
| Contact Plating | GOLD 6u"/15u"/30u" |
| Turns Ratio RX/TX | 1CT:1CT |
| Configuration RX/TX | T,C |
We are a specialized manufacturer of magnetic telecom and networking components, including RJ45 connectors, LAN transformers, RJ11 connectors, and SFP modules.
Yes, we can offer free samples to test the quality, although the shipping fee should be covered by the requester.
Items in stock are ready to ship immediately. For mass production, the typical lead time is 15-30 days.
We provide a one-year guarantee period and offer 24-hour online technical support.
Yes, we welcome OEM/ODM inquiries. Please contact us to discuss your detailed requirements.
With over 19 years of production experience, we have established long-term partnerships with leading industry players such as Intel and Jabil.
