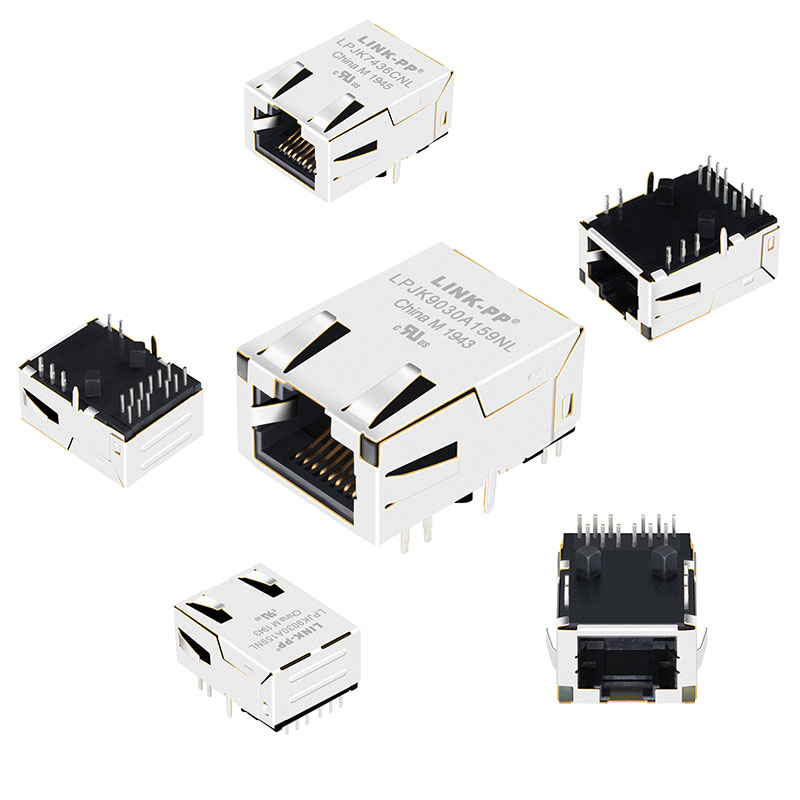

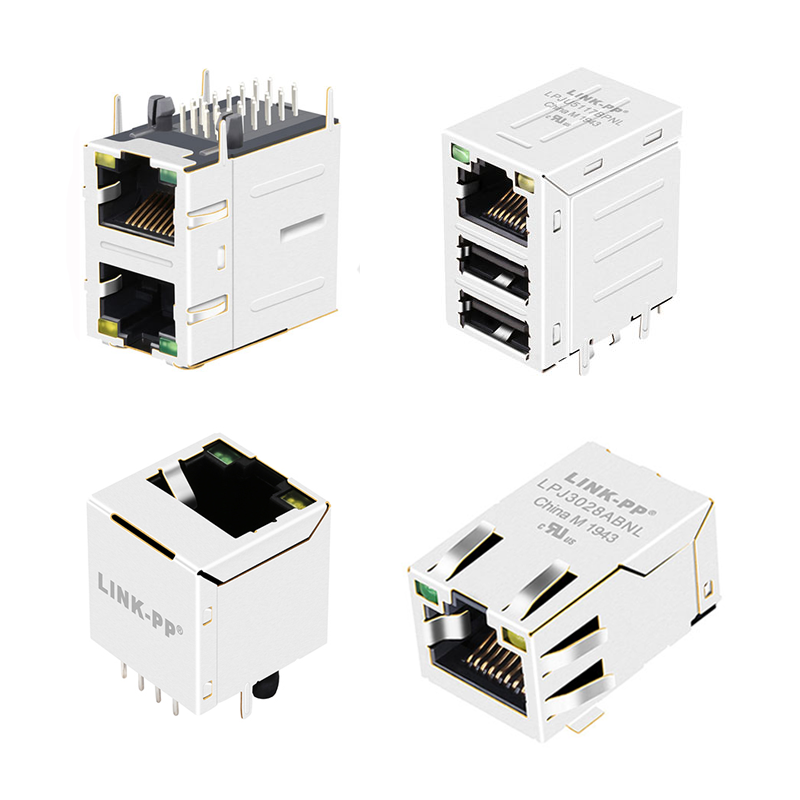

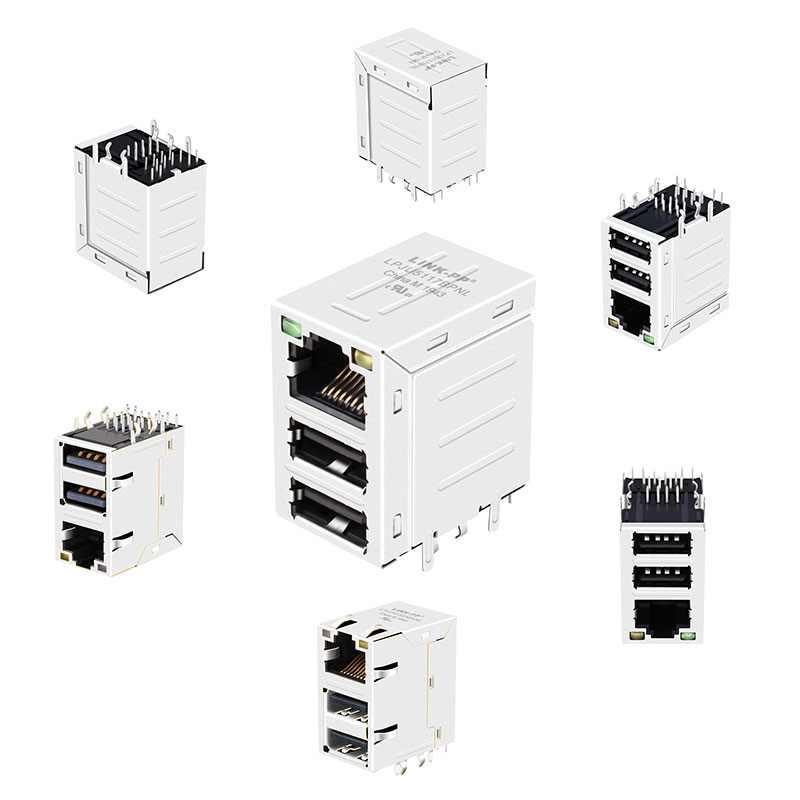

Tab Down Rj45 Magnetic Power Socket 8 Pin PCB Modular Jack Cat 6 Rj45 Female Connector With USB

Product Description

Tab Down Rj45 Magnetic Power Socket 8 Pin PCB Modular Jack Cat 6 Rj45 Female Connector With USB

RJ45 Magnetic Power Socket Modular Jack Cat 6
Products Description
Item RJ45 Female Connector
Part Status Active
Connector Type Jack
Number of Positions/Contacts 8p8c (RJ45, Ethernet)
Application-Lan Ethernet (Poe/Non Poe)

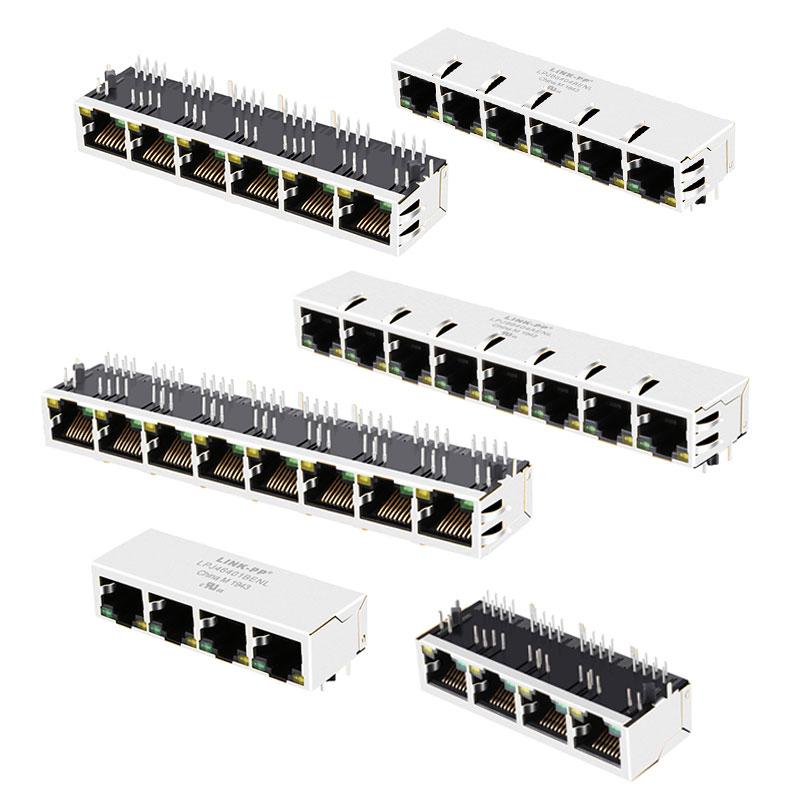

Number of Ports Single Port, 1xN Port, 2xN Port
Speed 100/1000/2.5G/5G/10G Base-T
Latch Down/Up
Cores per Port 4/6/8/10/12
Orientation 90° / 180°
PCB Mount Angle SIDE ENTRY
Shield EMI Tabs Without / With
LED Option Green/Yellow
PCB FR4
PCB Retaining Post T POST
Temperature 0℃ TO 70℃
Bst Circuit Yes
AutomDX YES
Contact Mating Area Plating GOLD 6u"/15u"/30u"
Turns Ratio RX/TX 1CT:1CT
Configuration RX/TX T,C
RJ45 Specifications
Discover More Product Range Options Below
Product Options Matrix
Modular Jack Structure Ethernet Jack Dimension
Why Choose Us
Production Advantage 1 Production Advantage 2 Production Advantage 3 Quality Assurance 1 Quality Assurance 2
Company Profile

We are a specialized manufacturer of magnetic telecom and networking components, certified by ISO9001:2000, ROHS, REACH, CE, and UL. The enterprise owns advanced manufacturing facilities and testing equipment imported from abroad. Established in 1997, we support around 2000 staff at present. With an abundant productive capacity of 3000K per month, we are able to deliver goods within a short timeframe. Moreover, we can provide professional complete solutions for magnetic components alongside strong technical support.

Main Products: 10/100/1000M LAN pulse transformer and filter, RJ45 connector with 10/100/1000M magnetic, T1/E1, T3/DS3/E3/STS-1 interface line transformer, ISDN, HDSL, ADSL and VDSL interface line transformer and splitter. Our products are widely used in networking and communication equipment such as HUB, PC card, Switch, Router, PC Mainboard, SDH, PDH, IP Phone, and xDSL modem. We have exported our products to more than 30 countries and regions globally. Our engineering staff is dedicated to identifying, developing, and manufacturing the optimal solutions for unique requirements. We trust that our strength in the field and our faith in pursuing higher standards will earn your long-term partnership.

Manufacturing Plant Testing Laboratory
FAQ
Are you a factory or a trading company?

We are a specialized manufacturer of magnetic telecom and networking components, including RJ45 connectors, LAN transformers, RJ11 connectors, and SFP modules.

Can I get a sample before mass production?

Yes, we can offer you free samples to test the quality, with shipping costs covered by the buyer.

What is your delivery time?

Products in stock are ready to ship immediately, while mass production orders typically require 15 to 30 days.

What after-sales service do you offer?

We provide a one-year guarantee period along with 24-hour online technical support.

Can you accept OEM/ODM orders?

Yes, we accept custom orders. Please send your specifications to us so we can discuss the details.

What is your advantage?

We boast over 19 years of dedicated production experience in high-standard communication and network component manufacturing.
