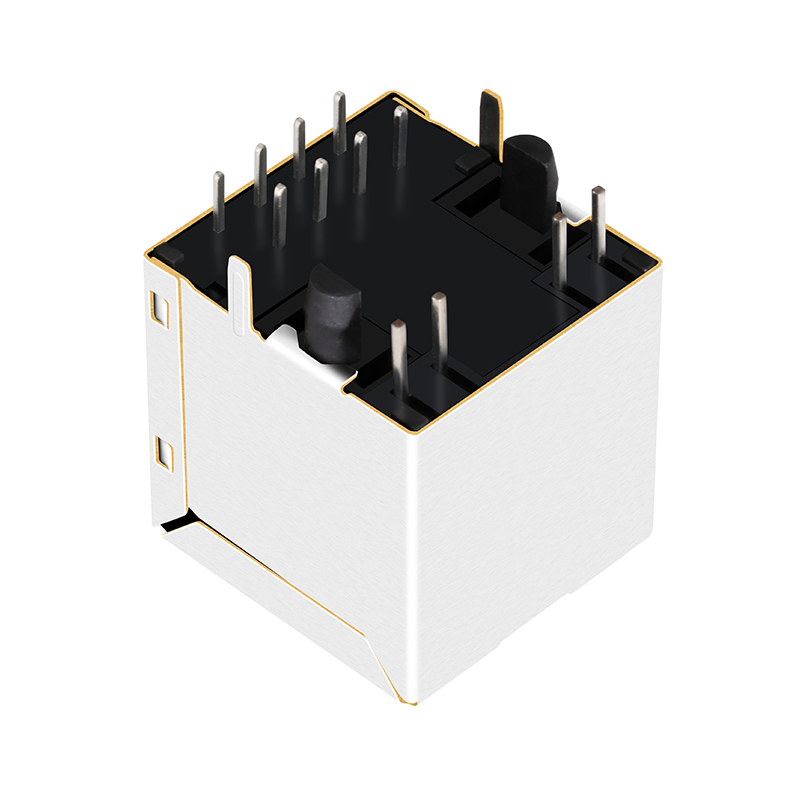

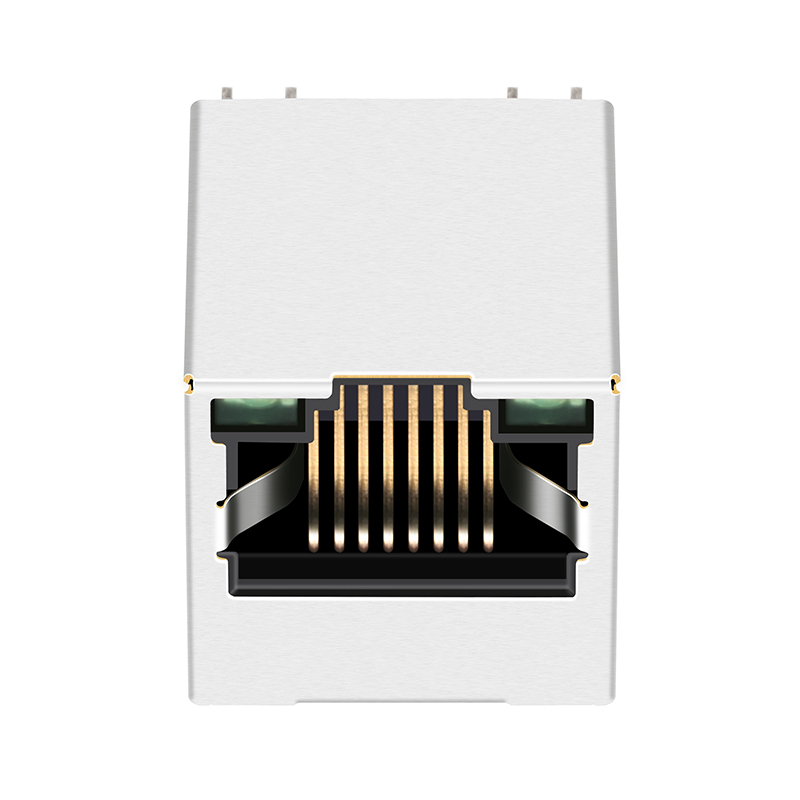

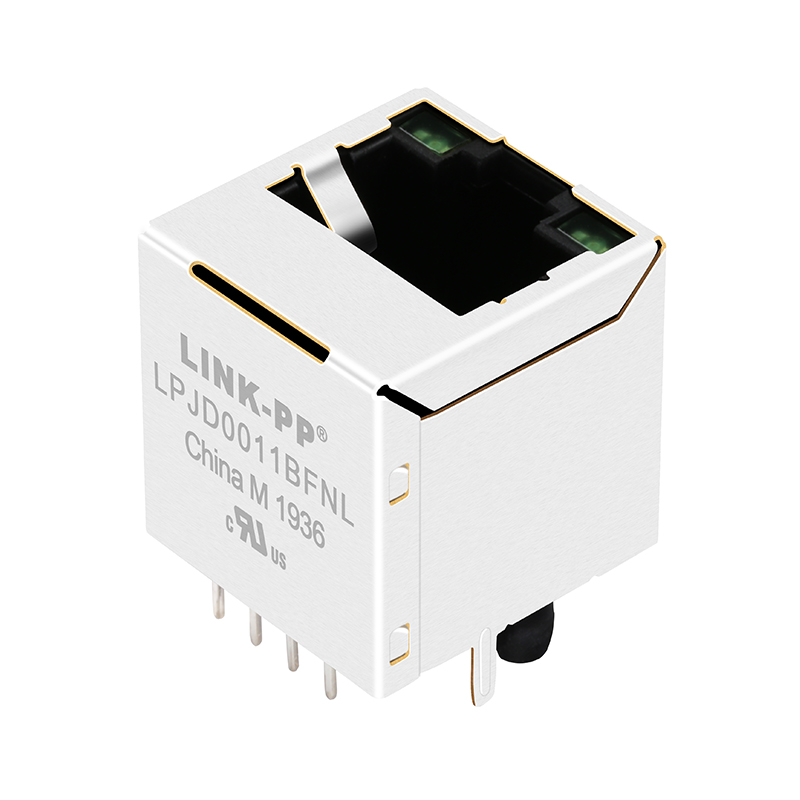

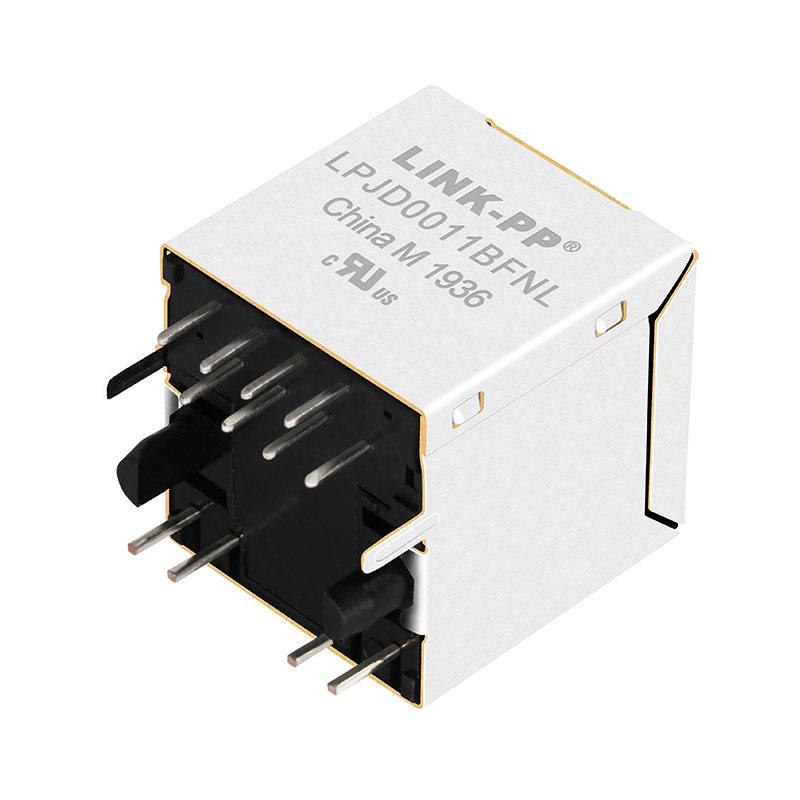

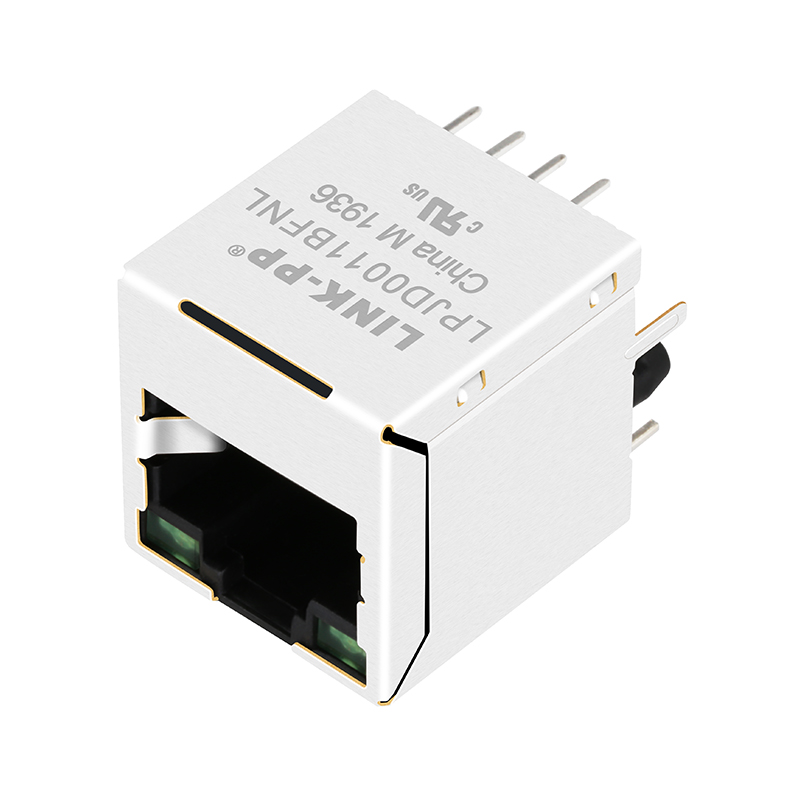

| Item | RJ45 Female Connector |
| Part Status | Active |
| Part Number | LPJD0011BFNL |
| Number of Positions/Contacts | 8p8c (RJ45, Ethernet) |
| Application-Lan | Ethernet(NoN PoE) |
| Number of Ports | 1x1 Port |
| Speed | 10/100 Base-T |
| Cores per Port | 4 |
| Orientation | 180° Angle (Right) |
| PCB Mount Angle | Top Entry |
| Shield EMI Tabs | Without |
| LED Option | With |
| PCB | FR4 |
| PCB Retaining Post | T POST |
| Temperature | 0℃ TO 70℃ |
| Bst Circuit | Yes |
| AutomDX | Yes |
| Contact Mating Area Plating | GOLD 6u"/15u"/30u" |
| Turns Ratio RX/TX | 1CT:1CT |
| Configuration RX/TX | T,C |
