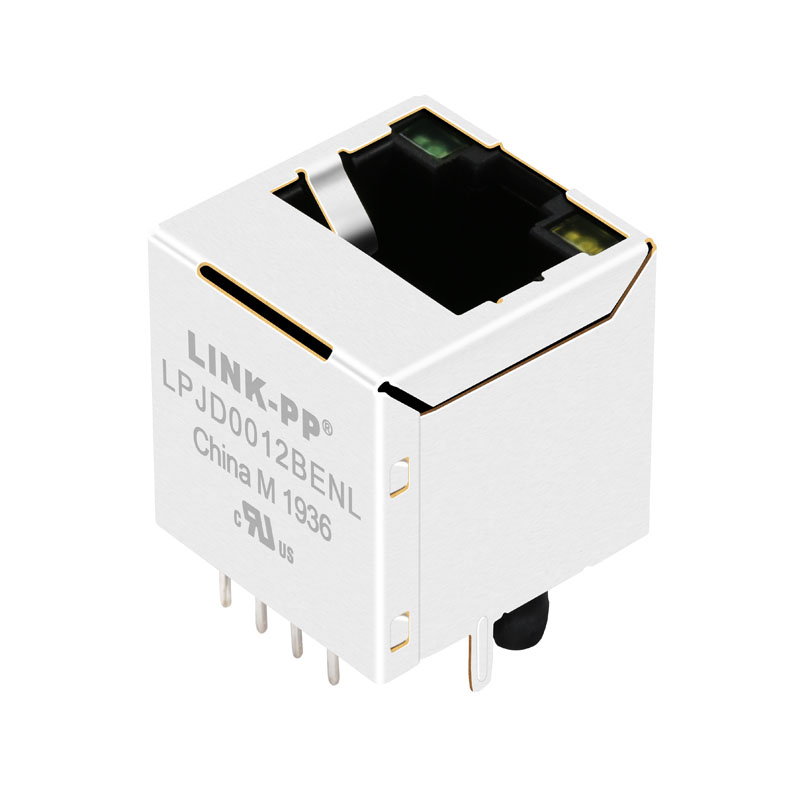

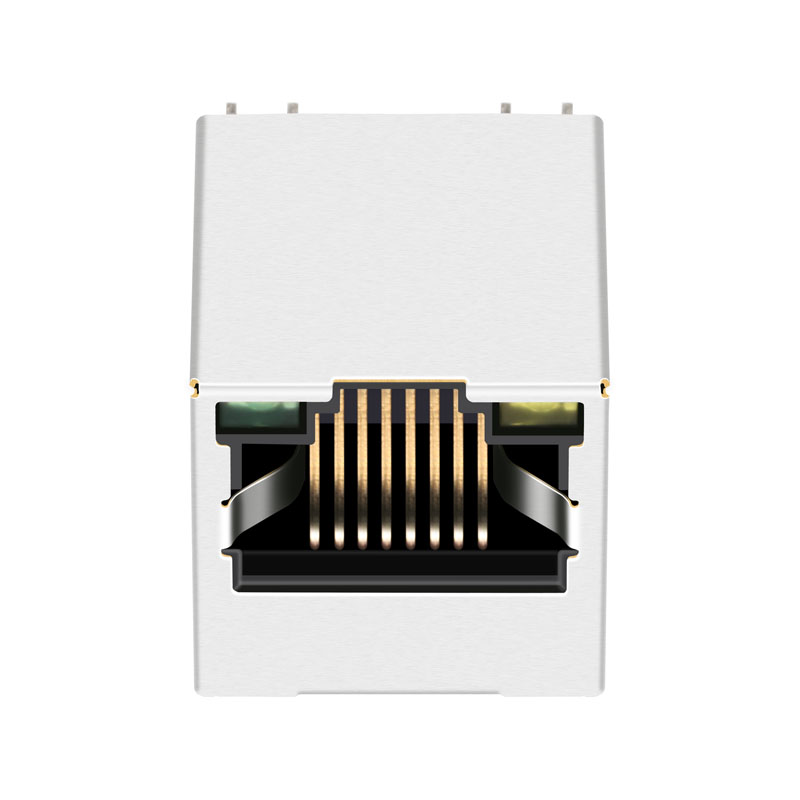

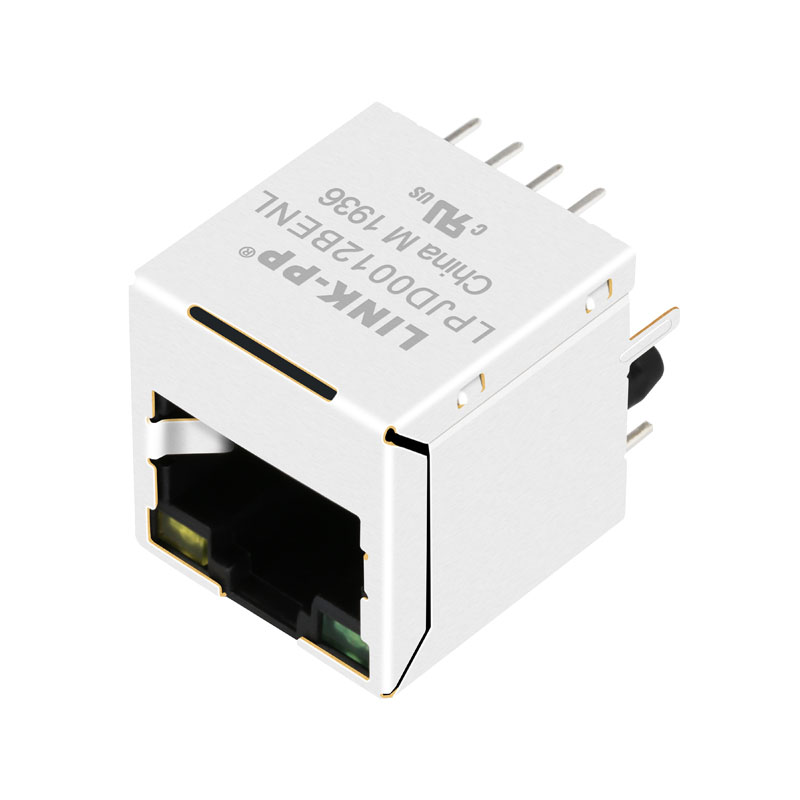

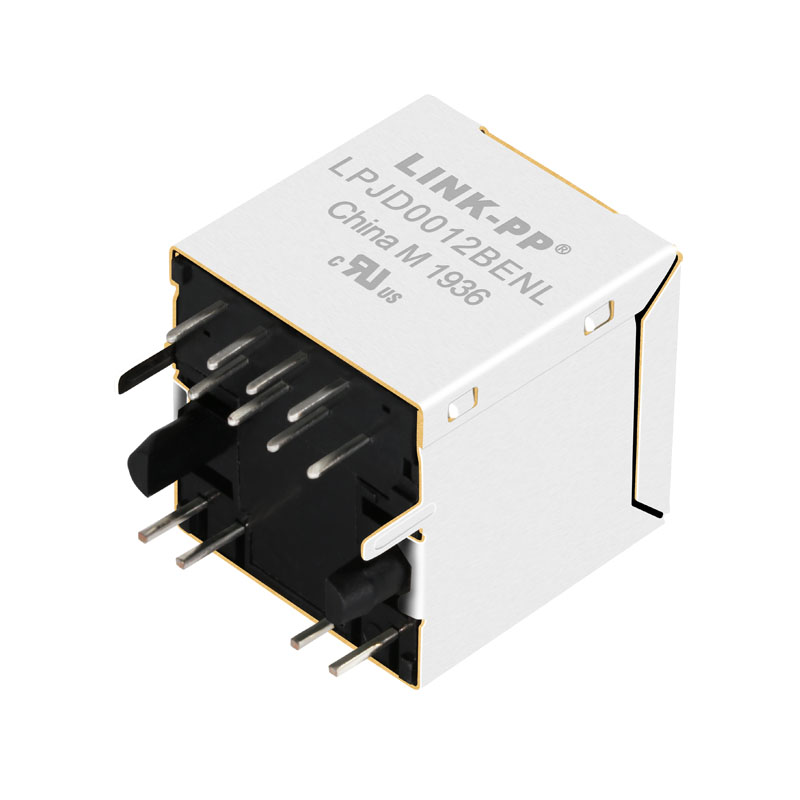

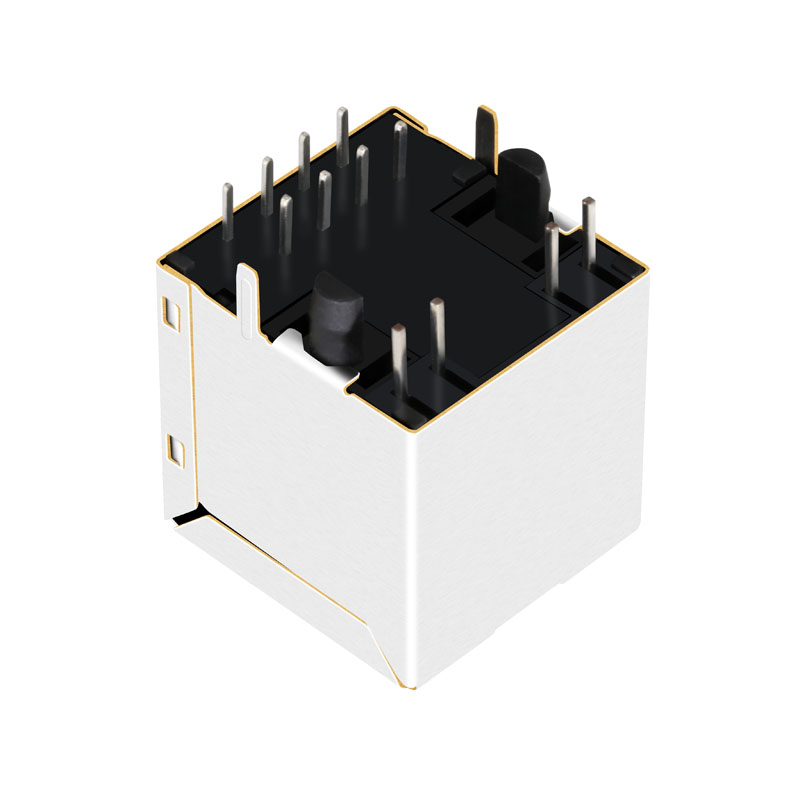

| Item | RJ45 Female Connector |
| Part Status | Active |
| Part Number | LPJD0012BENL |
| Number of Positions/Contacts | 8p8c (RJ45, Ethernet) |
| Application-Lan | Ethernet(NoN PoE) |
| Number of Ports | 1x1 Port |
| Speed | 10/100 Base-T |
| Cores per Port | 4 |
| Orientation | 180° Angle (Right) |
| PCB Mount Angle | Top Entry |
| Shield EMI Tabs | Without |
| LED Option | With |
| PCB | FR4 |
| PCB Retaining Post | T POST |
| Temperature | 0℃ TO 70℃ |
| Bst Circuit | Yes |
| AutomDX | Yes |
| Contact Mating Area Plating | GOLD 6u"/15u"/30u" |
| Turns Ratio RX/TX | 1CT:1CT |
| Configuration RX/TX | T,C |
We are a specialized manufacturer of magnetic telecom and networking components, such as RJ45 connectors, LAN transformers, RJ11 connectors, and SFP modules.
Yes, we can offer you free samples to test quality, but the shipping fee will need to be covered on your end.
Items that are in stock are ready to ship immediately, while mass production typically takes between 15-30 days.
We offer a one-year guarantee period along with 24-hour online technical support.
Yes, please send your inquiry directly to us so we can discuss the details of your specifications.
We have over 19 years of dedicated production experience and have been a trusted partner for top-tier global enterprise companies for many years.
