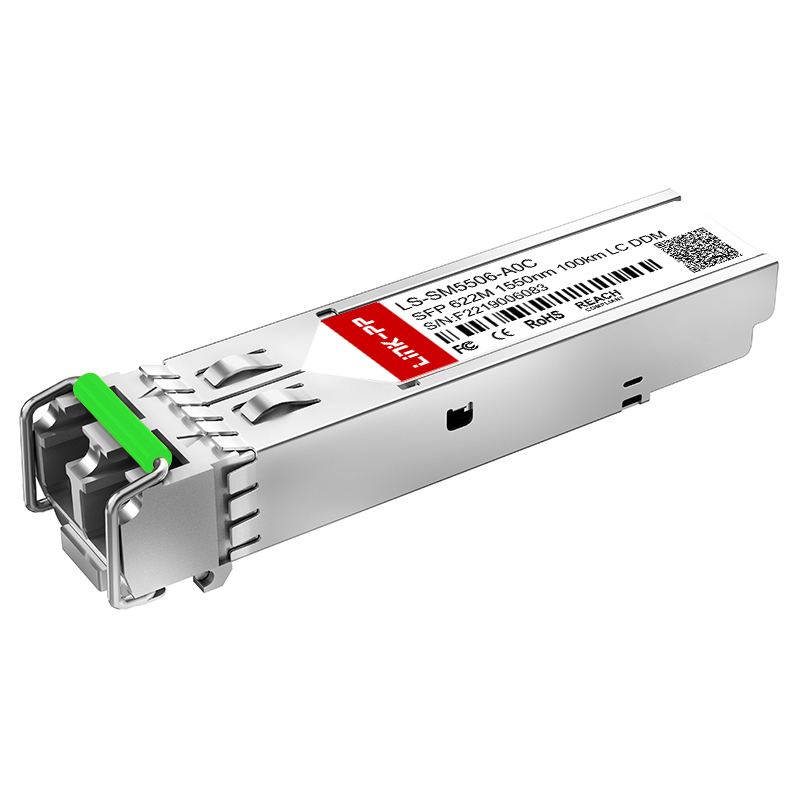

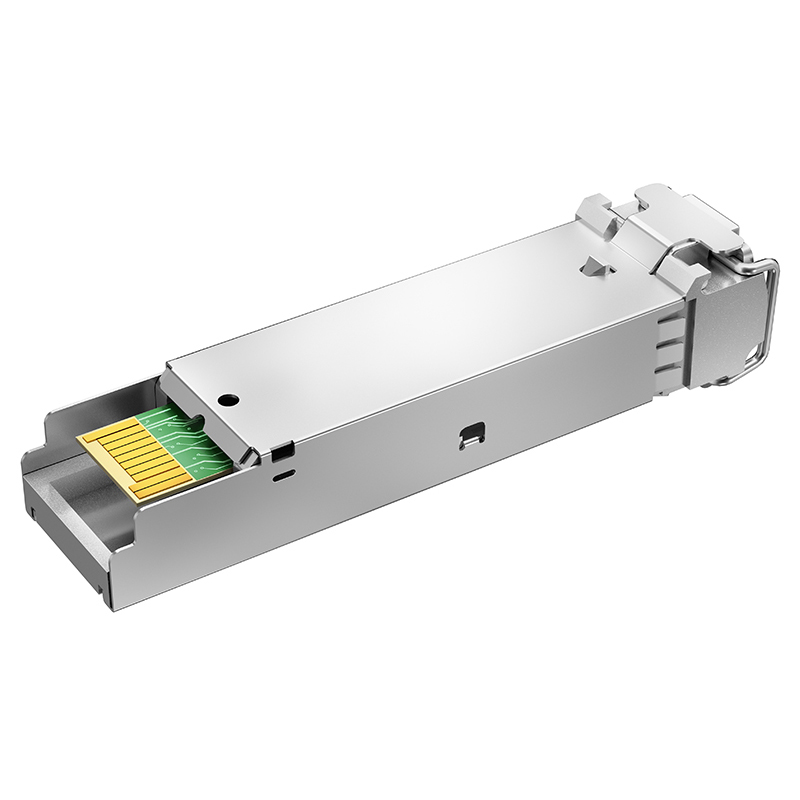

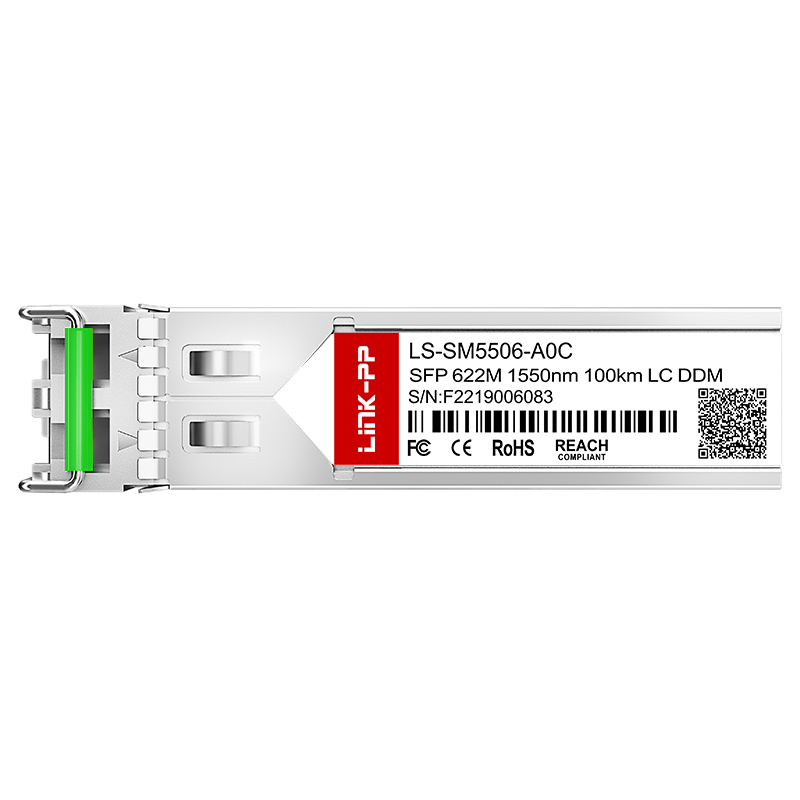

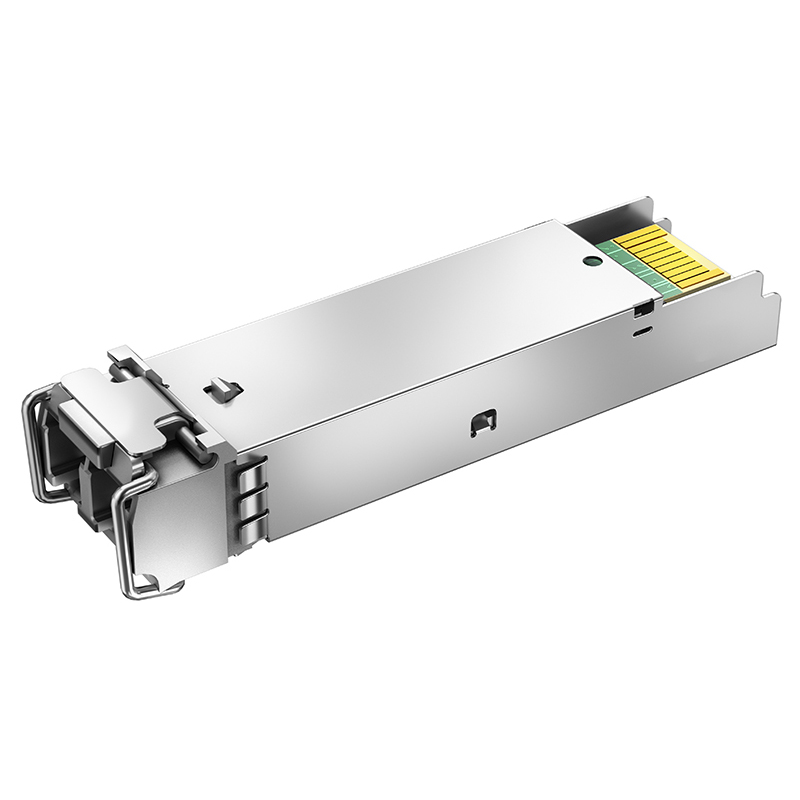

Single Mode 1550nm SFP 622M Transceiver 100km Duplex LC Optical Module

1 / 5

Single Mode 1550nm SFP 622M Transceiver 100km Duplex LC Optical Module

Send Inquiry

Product Description

Technical Specifications
Part Number	LS-SM5506-A0C
Form Factor	SFP
Max Data Rate	622Mbps
Wavelength	1550nm
Max Cable Distance	100km
Connector	Duplex LC
Media	SMF
Transmitter Type	DFB
Receiver Type	PIN
EMC (Electro Magnetic Compatibility)	Supported
DDM/DOM	Supported
Protocols	MSA Compliant
Temperature Range	0 to 70°C / -40 to 85°C
Warranty	5 Years
Sample	Available

View Our Solutions

We draw on over 10 years of experience in chips and modules to integrate fast speeds, small size, power savings, and high performance in every module.

We provide a full series of optical modules for fixed access, wireless access, carrier Ethernet, wavelength division multiplexing (WDM), and data communication networks.

Support Full Range Of 622M SFP

Part Number	Data Rate	Wavelength	Distance	Media	DDM
LS-MM8506-S5C	622Mbps	850nm	500m	Multi-mode	Yes
LS-SM3106-S5C	622Mbps	1310nm	500m	Single Mode	Yes
LS-SM3106-02C	622Mbps	1310nm	2km	Single Mode	Yes
LS-MM3106-02C	622Mbps	1310nm	2km	Multi-mode	Yes
LS-SM3106-20C	622Mbps	1310nm	20km	Single Mode	Yes
LS-SM3106-40C	622Mbps	1310nm	40km	Single Mode	Yes
LS-SM5506-80C	622Mbps	1550nm	80km	Single Mode	Yes
LS-SM5506-A0C	622Mbps	1550nm	100km	Single Mode	Yes
LS-SM5506-A2C	622Mbps	1550nm	120km	Single Mode	Yes

Application Scenarios

Optical Transport Networks

We provide end-to-end DWDM device solutions with almost all optical components - from active modules to optical passive devices, including optical amplifiers (EDFA & RFA), Mux & Demux, OPM, ROADM, MCS, OLP, and OTDR.

Cloud and Enterprise

To meet the demand of mass data transmission in data centers, we have developed a series of high-speed optical modules with product rates ranging from 10G to 800G, providing high-quality optical interconnection solutions for modern data centers.

Wireless

We provide high reliability and performance products with mature and efficient lasers and mainstream chip solutions. The solution includes Dark Fiber, WDM, Radio over Fiber, High Speed, Mid-haul, and Back-haul which could meet all the needs of various scenarios in 4G/5G systems.

FTTx

Aimed at global communication network constructors, we provide FTTx optical fiber access total solutions covered from all-optical or optical copper combined access solutions and products.

Subsystems

To ensure the normal operation of the communication line, we provide the optical cable O&M solution which integrates an optical line protection system (OLP) and an optical line monitoring system (OLM).

Related Products SFP Cage

Why Choose Us

Production Profile

We are a specialized manufacturer of magnetic telecom and network components, certified by ISO9001:2000, ROHS, REACH, CE and UL, with advanced manufacturing equipment and testing equipment imported from abroad. Established in 1997, our facility has about 2000 employees at present. With an abundant production capacity of 3000K per month, we are able to deliver products within a short time.

In addition, we can provide a complete series of optical modules for fixed access, wireless access, carrier Ethernet, wavelength division multiplexing (WDM), and data communication networks. The range also includes high-speed optical interconnect solutions for cloud computing and ultra-broadband networks. Using the latest optoelectronic technologies, we design, manufacture, and sell products worldwide.

Frequently Asked Questions

QAre you a factory or a trading company?

We are a specialized manufacturer of magnetic telecom and networking components, including RJ45 connectors, LAN transformers, RJ11 connectors, and SFP modules.

QCan I request samples for testing before committing to mass production?

Yes, we can provide free samples to test quality, though shipping fees are to be covered by the customer.

QWhat is the standard delivery timeframe for orders?

Items in stock are ready for immediate shipping, while mass production orders generally take between 15 and 30 days.

QWhat post-purchase technical services and support do you offer?

We offer a product warranty along with 24/7 online technical support to assist you with installation, configuration, and troubleshooting.

QDo you support OEM or ODM customization requests?

Yes, we gladly welcome OEM and ODM inquiries. Please contact us with your specifications so we can discuss the details.

QWhat are the main advantages of your manufacturing capability?

With over 19 years of dedicated production experience, state-of-the-art testing systems, and a high-volume monthly capacity, we deliver reliable products compliant with global industry standards.
