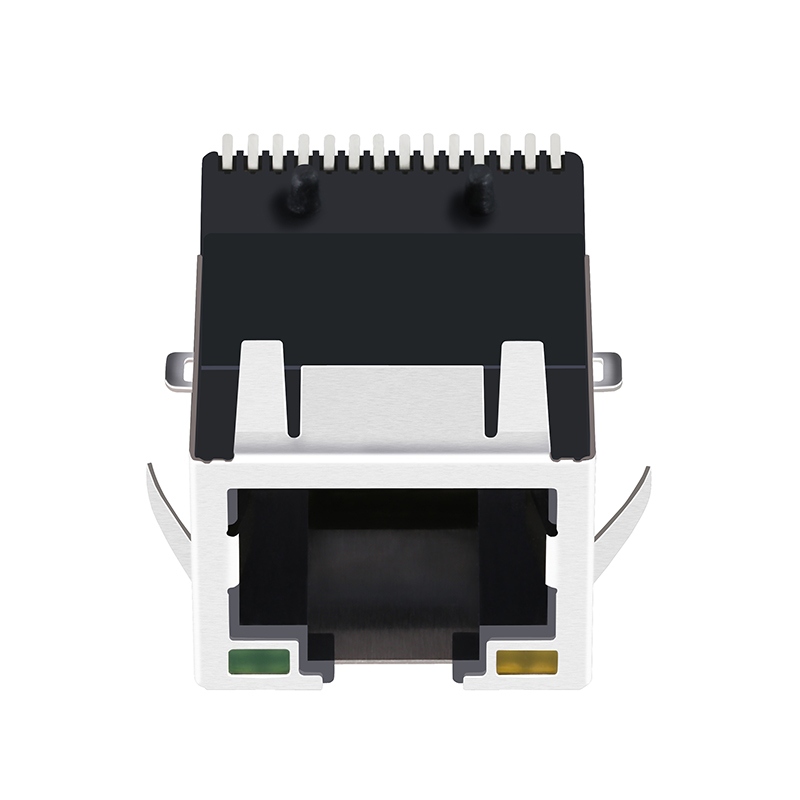

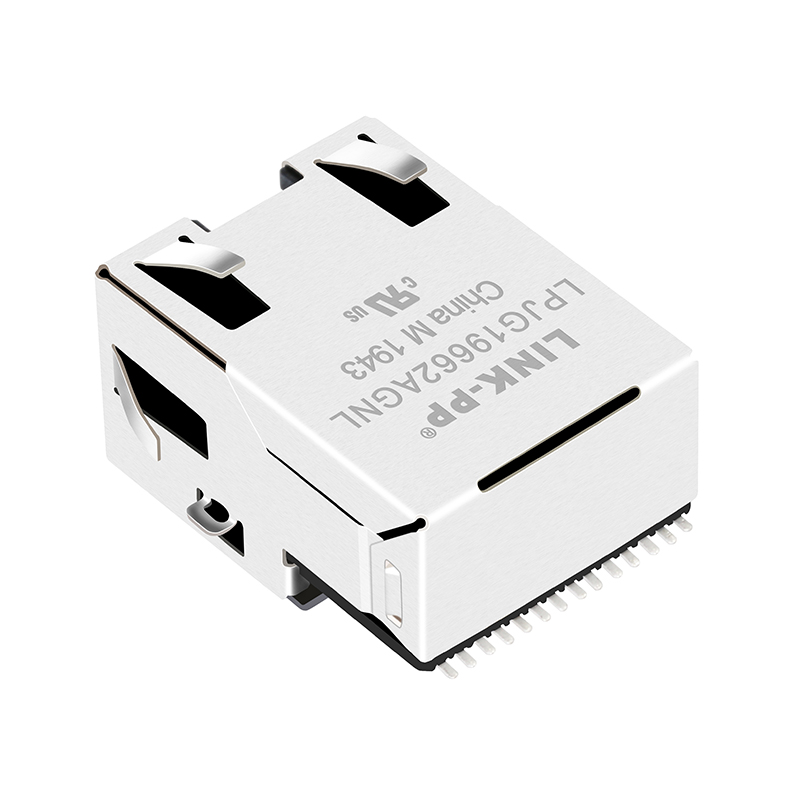

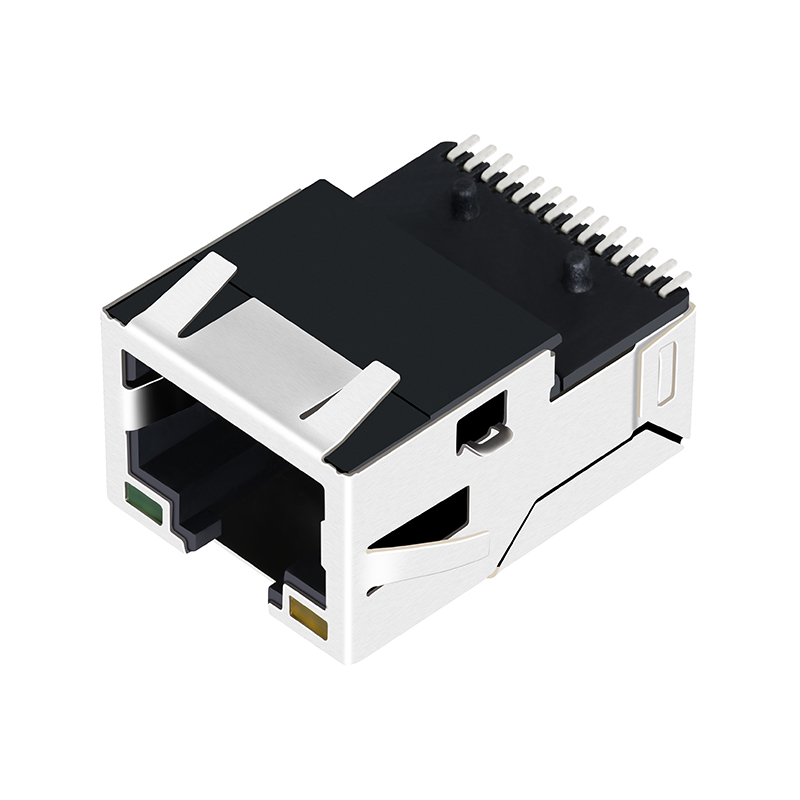

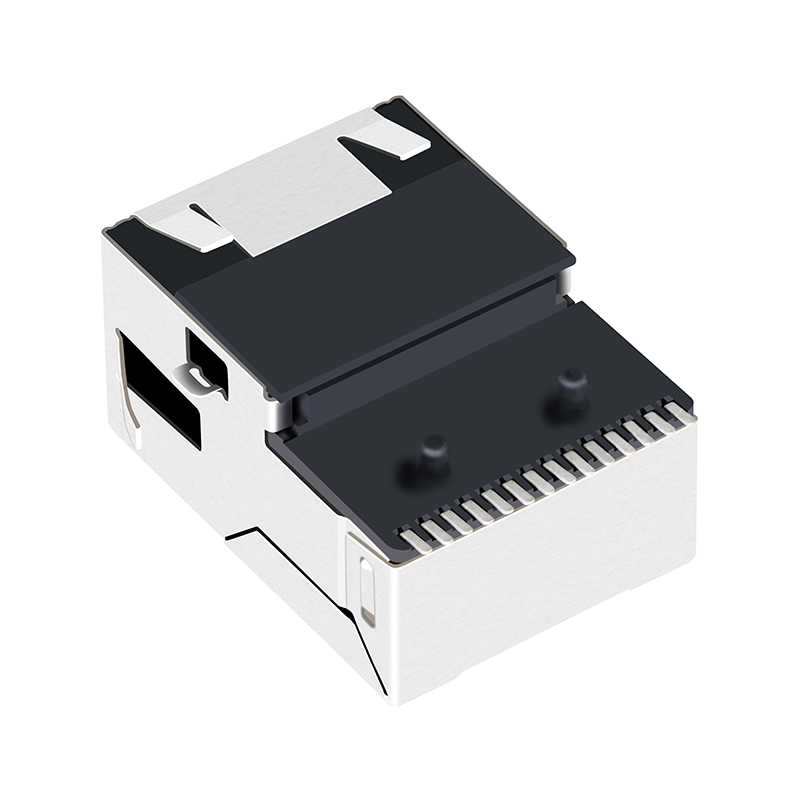

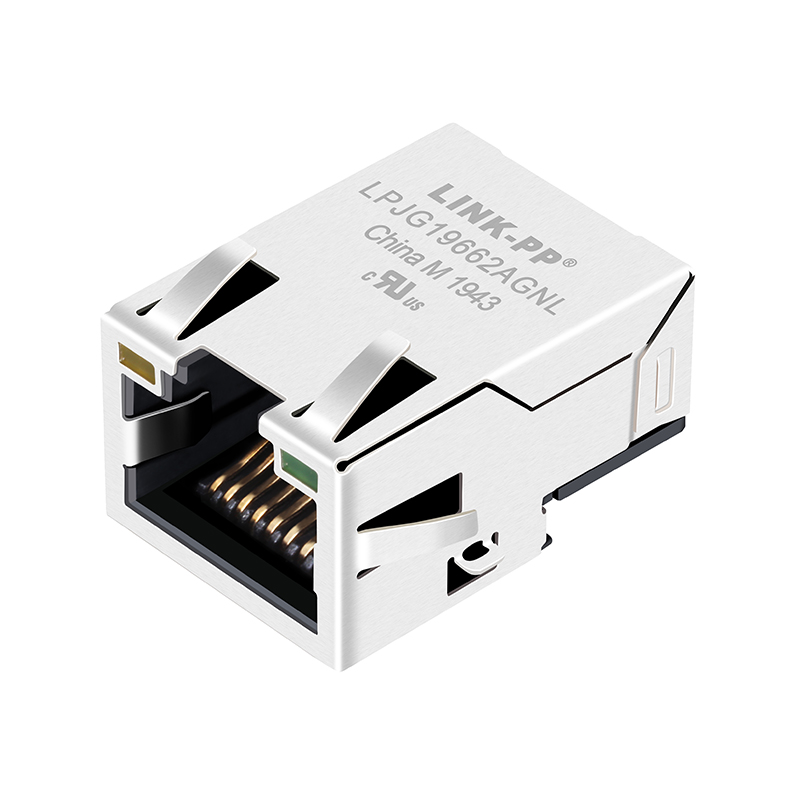

7498111120 Tab Up 10/100/1000 Base-t Magnetic Ethernet Female SMT Surface Mount RJ45 Jack With Leds
Ethernet Jack Overview
Products Description
Item RJ45 Female Connector
Part Number LPJG19662AGNL
Part Status Active
Connector Type Jack
Number of Positions/Contacts 8p8c (RJ45, Ethernet)
Application-Lan Ethernet(NoN PoE)
Number of Ports 1x1 Port
Speed 10/100/1000 Base-T
Latch Up
Cores per Port 8
Orientation 180° Angle
PCB Mount Angle SIDE ENTRY
Shield EMI Tabs With
LED Option Yellow/Green
PCB FR4
PCB Retaining Post T POST
Temperature 0°C TO 70°C
Bst Circuit Yes
AutomDX YES
Contact Mating Area Plating GOLD 6u"/15u"/30u"
Turns Ratio RX/TX 1CT:1CT
Configuration RX/TX T,C
Product Detail 1
Product Detail 2
Product Detail 3
Product Detail 4
Detailed Catalog and Product Category Options
Product Catalog List
Technical Drawing 1
Technical Drawing 2
Technical Specification 1
Technical Specification 2
Measurement Specifications
Soldering Specifications
Company Profile
Established in 1997, we are a professional designer and manufacturer of magnetic telecom and networking components. With an extensive line of state-of-the-art catalog products as well as custom capabilities. We are a global supplier of magnetic telecom and networking components for OEMs, contract manufacturers, and CEMs, supplying more than 10,000+ customers over 200 countries. Building multi-warehouse systems in key areas and continuously increasing inventory, we are committed to becoming the world's leading Ethernet RJ45 connector and LAN transformer company.
Production Facility
Quality Control Department
FAQ
Are you a factory or trading company?
We are a specialized manufacturer of magnetic telecom and networking components, including RJ45 connectors, LAN transformers, RJ11 connectors, and SFP modules.
Can I get a sample before mass production?
Yes, we can offer you free samples to test the quality, but you would be responsible for the shipping fees.
What is your delivery time?
Products in stock are ready to ship immediately, while mass production typically takes 15 to 30 days.
What after-service can you offer?
We offer a one-year guarantee period along with 24-hour online technical support.
Can you accept OEM/ODM orders?
Yes, please contact us with your details so we can proceed with a discussion on custom designs.
What is your advantage?
We have 19 years of manufacturing experience and have been a trusted partner for top-tier global manufacturers for many years.
