Choosing a single mode transceiver starts with distance, not price. A short list can still fail in a real rack.

Cisco’s Annual Internet Report projected 29.3 billion networked devices by 2023. That growth increases pressure on reliable, long-distance optical links. Dell’Oro Group’s Ethernet Switch Five-Year Forecast also tracks continuing demand for higher-speed data-center connections. These reports point toward a practical reality: optical compatibility matters as much as headline bandwidth.

John D’Ambrosia, Ethernet Alliance chair, stated, “400G is here, and it is real.” His comment reflects the market’s shift toward 100G, 200G, and 400G deployments. Yet higher speed does not automatically mean better performance. It may require different fiber grades, connector designs, cooling capacity, and host-platform support.

A useful evaluation begins with the link budget. Check the wavelength, transmission distance, and fiber type. Many single mode transceiver models use 1310 nm for campus and metropolitan links. Others use 1550 nm for longer reaches. Confirm OS2 fiber, LC or MPO connectors, and the required optical standard. Then verify switch coding, temperature range, digital diagnostics, and vendor interoperability.

Small details matter. A module may fit physically but fail during negotiation. A “compatible” optic may also lack accurate DOM readings. That is where specifications become experience.

There is no perfect checklist. Environmental testing, supplier traceability, and documented return policies still deserve attention. The right single mode transceiver balances distance, speed, power, reliability, and total ownership cost. It should fit the network’s future, not only today’s port.

Define Single-Mode Fiber: 9/125 µm Core and 1310/1550 nm Windows

Single-mode fiber is usually described as 9/125 µm fiber: about a 9 µm core inside a 125 µm cladding. Its narrow core carries one dominant light path, reducing modal dispersion across long distances. The 1310 nm window offers near-zero chromatic dispersion in standard G.652 fiber. The 1550 nm window usually provides lower attenuation and supports longer spans. ITU-T G.652.D specifies key geometric and transmission requirements for this widely deployed fiber type.

The choice of single-mode transceiver should match wavelength, reach, and link budget. At 1310 nm, dispersion is often easier to manage on metropolitan links. At 1550 nm, lower fiber loss can benefit long-haul connections, but dispersion and component compatibility deserve closer review. Do not trust the label alone. IEEE 802.3 defines different optical reach classes, while practical loss includes connectors, splices, bends, and aging. ITU’s Facts and Figures 2023 counted 5.4 billion Internet users, highlighting the continuing pressure on network capacity. Yet distance claims are not universal. I once treated 1550 nm as automatically better. That was a poor shortcut. Measure the actual path, confirm transmitter and receiver sensitivity, and leave engineering margin. A 2 dB margin may look comfortable on paper, but field repairs can consume it quickly. Thermal data and digital diagnostics also matter when selecting the final transceiver.

Match Data Rates to IEEE Standards: 1G, 10G, 25G, 40G, and 100G

Verify Transmission Distance: 10GBASE-LR Reaches 10 km; ER Reaches 40 km

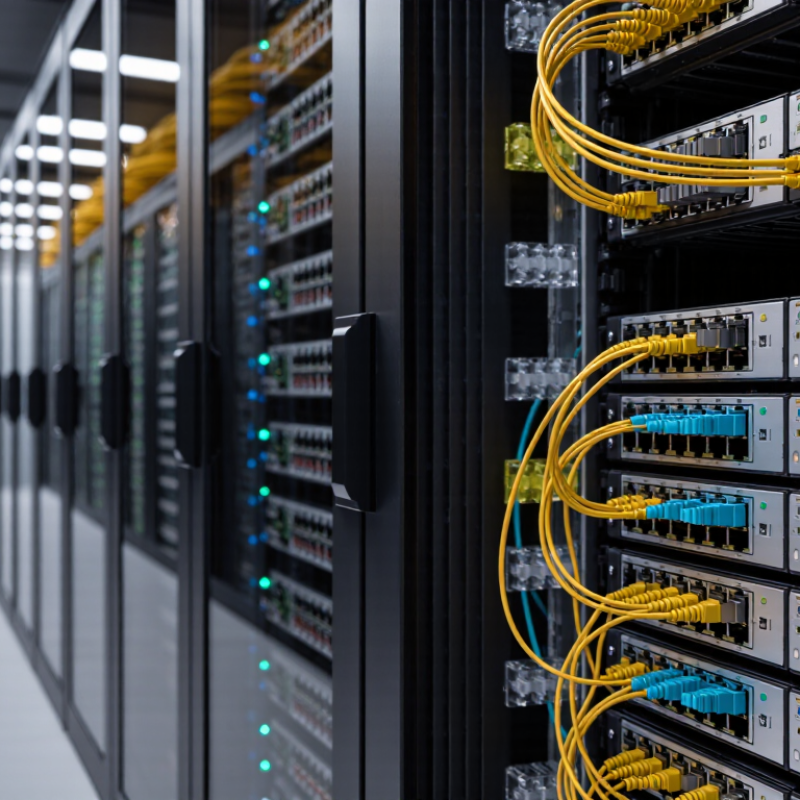

How to Choose a Single Mode Transceiver?

When selecting a single mode transceiver, verify the required transmission distance before comparing prices or features. A 10GBASE-LR module typically supports up to 10 kilometers over single-mode fiber. An ER module can reach approximately 40 kilometers under suitable network conditions. These figures are useful standards, not guaranteed results for every installation.

Check the link budget carefully. Cable attenuation, connector loss, fiber splices, and patch panels can reduce the practical distance. A long route with several dirty connectors may perform worse than expected. Temperature and fiber quality also influence optical stability. I once treated the advertised distance as a fixed promise, then found that installation loss left too little margin. That was a costly assumption.

Confirm the transceiver’s wavelength, connector type, data rate, and equipment compatibility. LR and ER modules may use different transmit power and receiver sensitivity, so replacing one with the other requires technical review. Measure the actual fiber route, not the distance shown on a floor plan. Keep a reasonable power margin for aging and future maintenance. If the route is only eight kilometers, LR may be practical. For a thirty-kilometer span, ER is more appropriate, but testing remains necessary. Distance alone does not prove reliability.

Select Wavelength, Connector, and Duplex Type: LC, Duplex, or BiDi

How to Choose a Single Mode Transceiver?

Single-mode selection starts with the wavelength. Most access links use 1310 nm, where chromatic dispersion is manageable over moderate distances. Longer links often use 1550 nm because fiber attenuation is lower. Check the link budget, not only the advertised distance. ITU’s Facts and Figures 2023 reported 5.4 billion Internet users, increasing pressure on reliable optical infrastructure. That demand makes small compatibility errors expensive.

Duplex type should follow the installed cable, not personal preference. Check fiber count, patch-panel layout, polarity, connector polish, and optical power. IEEE 802.3 specifications define many Ethernet wavelength and reach combinations, but field conditions can differ. A dirty LC endface can add loss, even with a correct module.

I have seen teams choose BiDi to save fiber, then discover the spare optics were unavailable. The decision was technically sound, but operationally weak. Always verify the equipment standard, receiver sensitivity, and actual route length before ordering.

Check DOM, Temperature Range, Power Budget, and MSA Compatibility

Choosing a single-mode transceiver starts with Digital Optical Monitoring (DOM). Check received power, transmit power, bias current, and module temperature during real operation. Standards such as SFF-8472 and CMIS define common monitoring fields, but accuracy and alarm thresholds still vary. Do not trust a green status light alone. Record DOM values after several hours of traffic. A small power decline can reveal dirty connectors, bending, or aging components. Cisco’s Annual Internet Report forecast global internet traffic at 5.3 zettabytes per month by 2023, making stable optical monitoring increasingly important.

Temperature range must match the installation, not the purchasing specification. Commercial modules commonly support 0°C to 70°C, while industrial versions may cover -40°C to 85°C. A rooftop cabinet and a controlled server room need different choices. Power budget also deserves a calculation. For a 100G single-mode link, IEEE 802.3 commonly defines reaches up to 10 kilometers, depending on the optical interface. Subtract fiber loss, connector loss, splice loss, and an engineering margin from the transceiver budget. Keep several decibels in reserve. I have seen links pass initial testing yet fail after repairs because the margin was too optimistic.

MSA compatibility is more than matching a cage and data rate. Verify form factor, electrical host interface, lane mapping, coding, wavelength, and management protocol. A module can fit physically and still remain unsupported. The Ethernet Alliance 2024 roadmap shows continued movement toward 400GbE and 800GbE, so future host compatibility matters. I still make mistakes when relying on labels alone. The datasheet, host documentation, and interoperability test should agree.

FAQS

Conclusion

Choosing the right single mode transceiver starts with understanding single-mode fiber, which typically uses a 9/125 µm core and operates in the 1310 nm or 1550 nm wavelength windows. First, match the transceiver’s data rate with the required IEEE standard, such as 1G, 10G, 25G, 40G, or 100G. Then confirm the transmission distance: for example, 10GBASE-LR commonly supports up to 10 km, while ER versions can reach approximately 40 km, depending on the network design and fiber conditions.

You should also select the appropriate wavelength, connector type, and duplex configuration. LC connectors are widely used, while duplex modules use two fibers and BiDi modules use a single fiber with paired wavelengths. Before installation, check Digital Optical Monitoring (DOM), operating temperature range, optical power budget, and MSA compatibility. These specifications help ensure reliable performance, proper interoperability, and stable operation in the intended network environment.
